Right Curved Rotary Tiller Blade for BCS Two-Wheel Tractor - Part Number: 55011

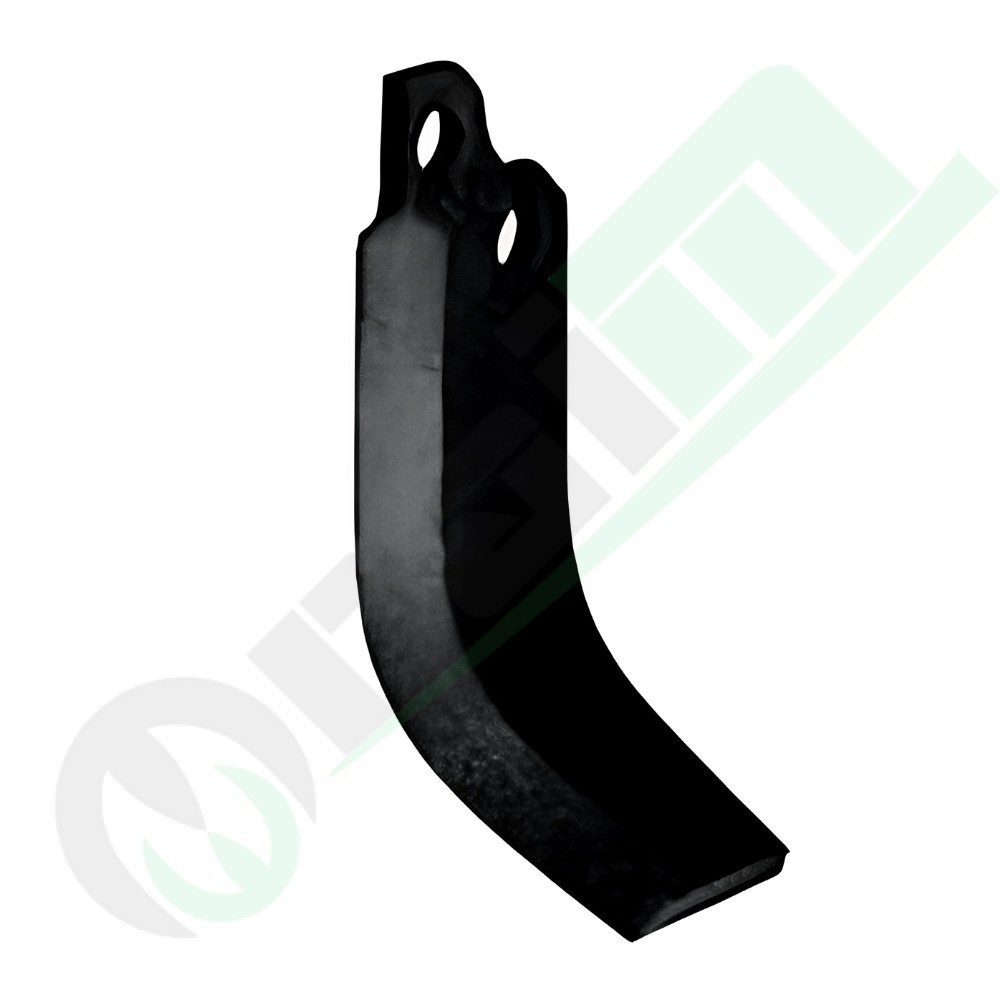

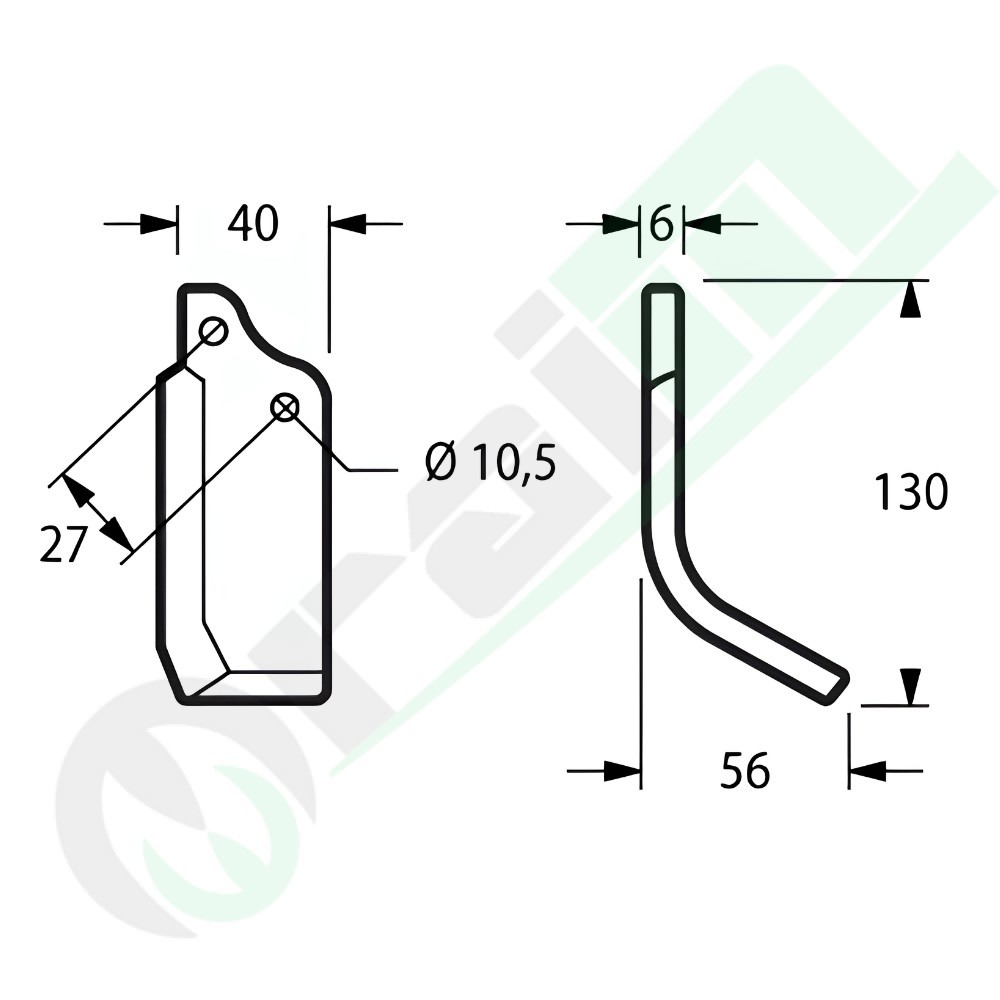

The Right Curved Rotary Tiller Blade (part number 55011, heavy-duty flat section 40 × 6 mm, mounting holes Ø 10.5 mm with compact 27 mm center-to-center distance, working dimensions X = 56 mm, Y = 130 mm, adaptable OEM reference 580 48433) is a high-strength drop-forged tillage part engineered to withstand severe bending stresses and continuous abrasive soil wear. Featuring an optimized right-hand curved profile, it delivers smooth soil penetration, fine clod crumbling, and exact fitment onto BCS two-wheel tractor tillers (model 735).

Key Features & Benefits

• Heavy-Duty 40 × 6 mm Forged Alloy Steel: Hot-forged and through-hardened for superior wear endurance and core toughness, preventing plastic bending or brittle chipping when striking rocks or compacted soil.
• Compact Right-Hand Curved Geometry: Operating dimensions (reach X = 56 mm, height Y = 130 mm) promote rapid soil slicing and clean furrow inversion while reducing powertrain drag and fuel consumption.
• Dual 10.5 mm Holes with 27 mm Spacing: Features a narrow 27 mm center-to-center spacing engineered for M10 hardware, ensuring a rigid, slip-resistant hold on factory BCS rotor mounting flanges.
• Efficient Tilth & Weed Cultivation: Ideal for horticultural seedbed prep, inter-row soil aeration, secondary tillage, and thorough incorporation of weeds and organic matter.

Technical Specifications

Application Table & Compatible Implements

Installation Technical Note: Mount using high-grade M10 structural bolts (class 10.9 recommended) fitted with prevailing torque locknuts or locking spring washers. Verify that rotor flange hole spacing is exactly 27 mm center-to-center, and retighten fasteners after the initial operating hour.
