Right Curved Tiller Blade 40x6 mm for BCS 725 Arco Ref OEM 580 48425 - 56951

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Right Curved Tiller Blade 40x6 mm for BCS 725 Arco Ref OEM 580 48425 - 56951

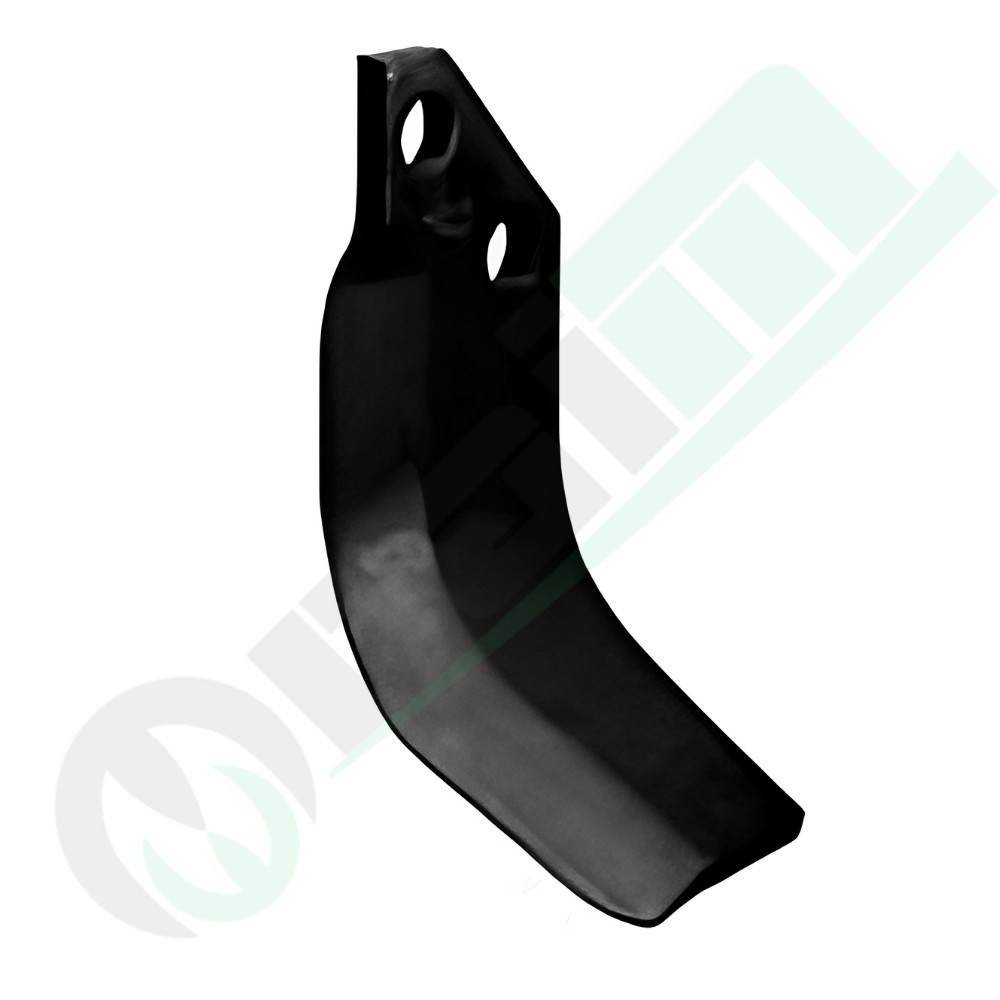

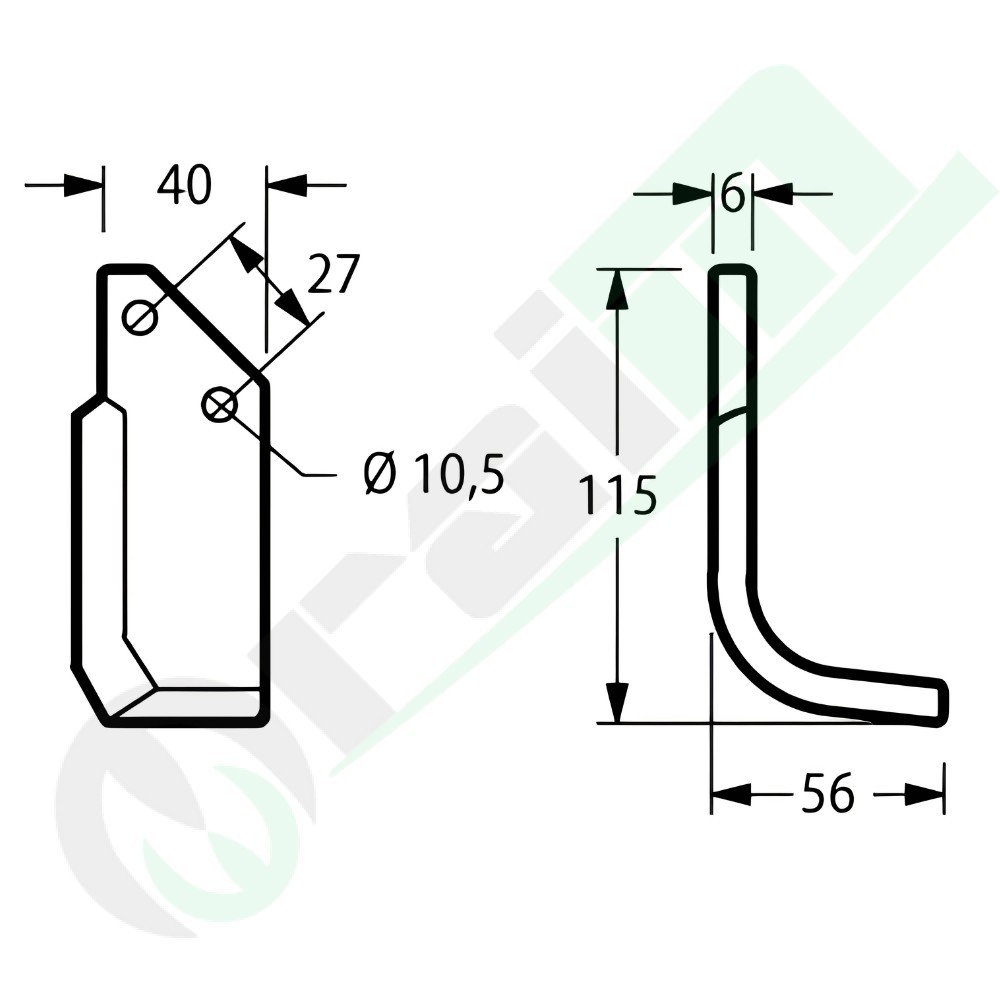

Right-hand curved rotary tiller blade part number 56951 (flat plate 40x6 mm, hole spacing 27 mm, hole diameter 10.5 mm, dimensions 56x115x15 mm) for two-wheel tractors. Forged from high-grade wear-resistant steel to handle abrasive soils, specifically suited for BCS 725 Arco equipment. Replaces OEM reference 580 48425.

Heavy-Duty 40 × 6 mm Forged Steel
Compact “Arco” Curved Profile (Z = 15 mm)
Dual 10.5 mm Holes with 27 mm Spacing

€3.90VAT incl.

Coupon -€0.08 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €3.82

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Key features

Heavy-Duty 40 × 6 mm Forged SteelHot-forged from wear-resistant boron spring alloy and through-hardened for superior core toughness and abrasion resistance, preventing plastic bending or edge chipping when striking rocks.

Compact “Arco” Curved Profile (Z = 15 mm)The 115 mm vertical working reach and 15 mm lateral offset reduce drag on the transmission and optimize engine efficiency while maintaining excellent soil pulverization.

Dual 10.5 mm Holes with 27 mm SpacingPrecision-punched 10.5 mm holes for M10 hardware feature a narrow 27 mm center-to-center spacing, ensuring a rigid, slip-resistant seat on genuine BCS rotor flanges.

Seedbed Finishing & Inter-Row CultivationWell-suited for fine horticultural seedbed preparation, mechanical inter-row weed control, and uniform mixing of crop residues and organic inputs.

Specifications

Product Code	56951
Component Type	Rotary tiller blade / Walk-behind tractor tine
Shape & Direction	Arched Curved – Right Hand (RH)
Flat Stock Section (Width × Thickness)	40 × 6 mm
Length X (Horizontal Working Reach)	56 mm
Length Y (Vertical Height)	115 mm
Lateral Offset (Z Dimension)	15 mm
Mounting Hole Diameter	Ø 10.5 mm (suited for M10 hardware)
Hole Center-to-Center Distance	27 mm
Adaptable OEM Part Number	580 48425 (58048425)
