Right Curved Blade 60x8 BCS 745 Sicilia 56953 | Raim Store

Right Curved Tiller Blade 60x8 mm for BCS Rotary Tiller 745 Sicilia Ref OEM 58048460 - 56953

star star star star star_border
Aftermarket
56953

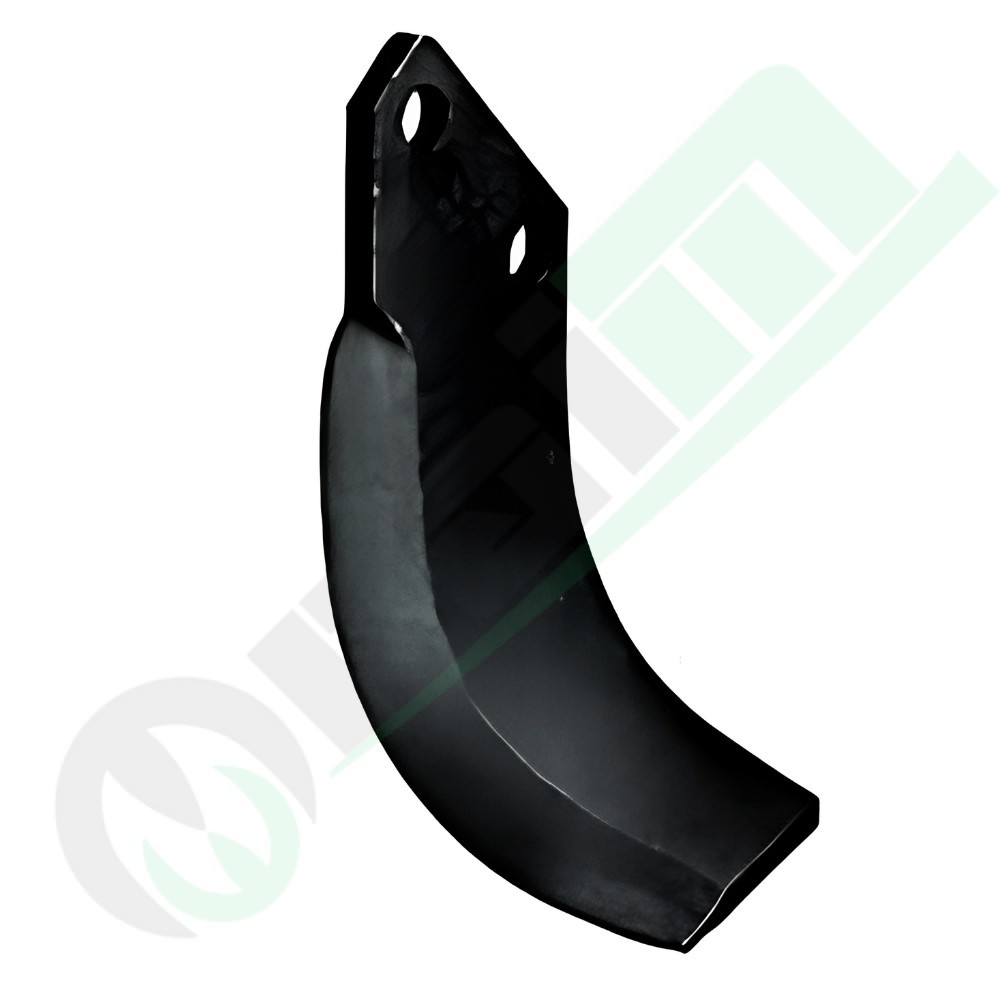

Right-hand curved rotary tiller blade part number 56953 (flat plate 60x8 mm, hole spacing 46 mm, hole diameter 12.5 mm, dimensions 74x173x25 mm) for rotary tillers. Manufactured from heavy-duty forged steel resistant to severe wear and impacts, engineered for BCS 745 Sicilia AR/EL implements. Directly replaces original OEM reference 58048460.

Hurry! only 5 items left in stock.
€5.70
Tax included
COUPON
- € 0,11
Final price: € 5,59
Quantity

The minimum purchase order quantity for the product is 5.

Media disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Right Curved Heavy Tiller Blade for BCS 745 Sicilia AR/EL - Part Number: 56953

The Right Curved Heavy-Duty Rotary Tiller Blade (part number 56953, heavy stock section 60 × 8 mm, mounting holes Ø 12.5 mm with 46 mm center-to-center distance, working dimensions X = 74 mm, Y = 173 mm, Z = 25 mm, adaptable OEM reference 58048460) is a drop-forged, heat-treated wear part engineered for severe agricultural cultivation. Featuring a right-hand helical profile tailored for hard, stony, and compacted soils, it ensures aggressive ground slicing, superior clod breakdown, and smooth dynamic rotor balance across BCS professional rotary tillers (model 745 Sicilia AR/EL).
Key Features & Benefits
  • Extra Heavy-Duty 60 × 8 mm Forged Alloy Steel: Hot-forged from oversized boron spring alloy steel and through-hardened for unmatched bending resistance and core toughness, preventing plastic deformation and fractures when striking embedded rocks.
  • Optimized Right Helical Arc “Sicilia” (Z = 25 mm): The 173 mm vertical working depth paired with an extended 74 mm reach and 25 mm lateral offset delivers aggressive soil turning, exceptional aerating efficiency, and low rotor clogging tendencies.
  • Structural 12.5 mm Bolt Holes (46 mm Spacing): Dual precision-punched 12.5 mm mounting holes designed for M12 fasteners feature a 46 mm center-to-center spacing, distributing intense shear forces securely across the rotor flange.
  • Heavy Cultivation & Residue Mixing: Tailor-made for primary and heavy secondary tillage, breaking hardpan crusts, burying thick crop residues, and operating effectively in abrasive ground conditions.

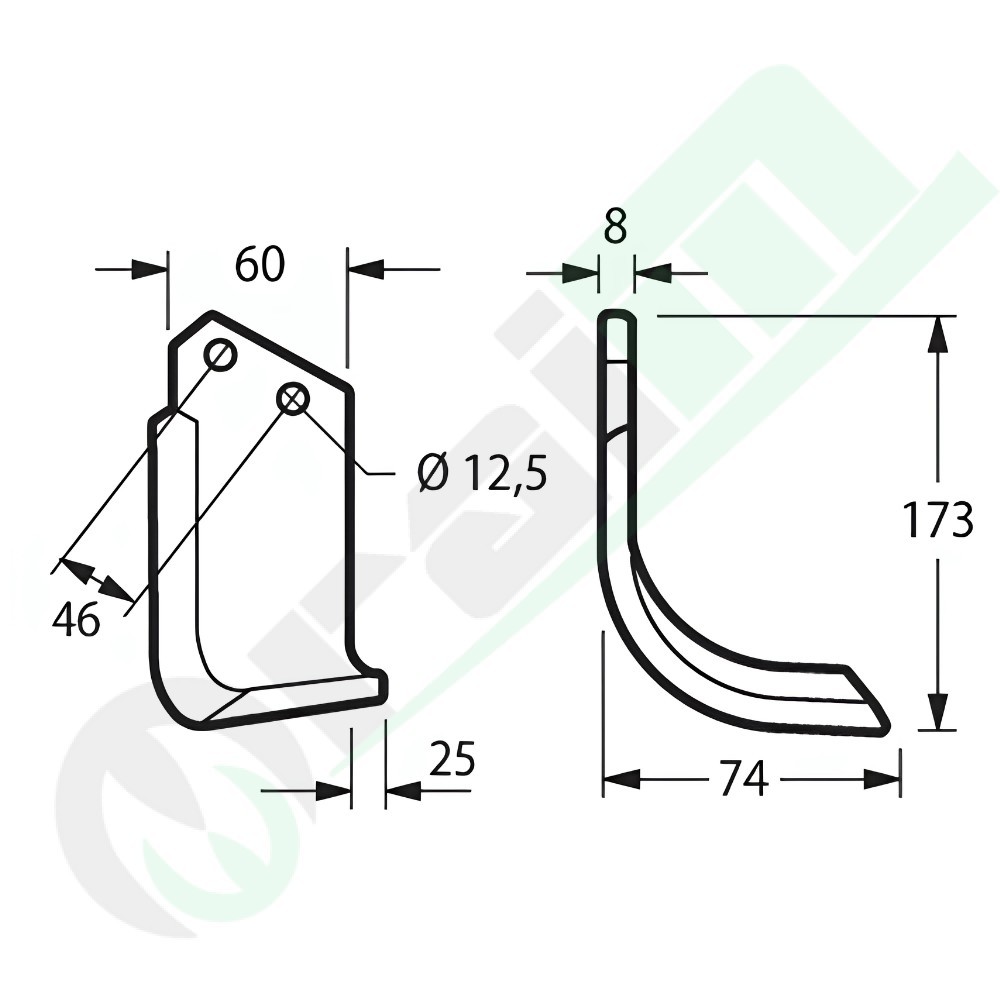

Technical Specifications
Product Code 56953
Component Type Heavy rotary tiller blade / Quenched and tempered tillage tine
Shape & Direction Heavy Helical Curved (Sicilia Type) – Right Hand (RH)
Flat Stock Section (Width × Thickness) 60 × 8 mm
Length X (Horizontal Working Reach) 74 mm
Length Y (Vertical Height) 173 mm
Lateral Offset (Z Dimension) 25 mm
Mounting Hole Diameter Ø 12.5 mm (suited for M12 hardware)
Hole Center-to-Center Distance 46 mm
Adaptable OEM Part Number 58048460 (580 48460)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
BCS Heavy Rotary Tiller 745 Sicilia Arc / Helical (AR/EL)
Installation Technical Note: Assemble using exclusively high-tensile structural M12 bolts (grade 10.9 or 12.9 fine thread recommended, such as M12x1.25 assemblies) fitted with prevailing torque locknuts or high-load spring washers. Confirm that the rotor flange hole spacing matches 46 mm center-to-center and re-tighten hardware after the initial hour of field work.
