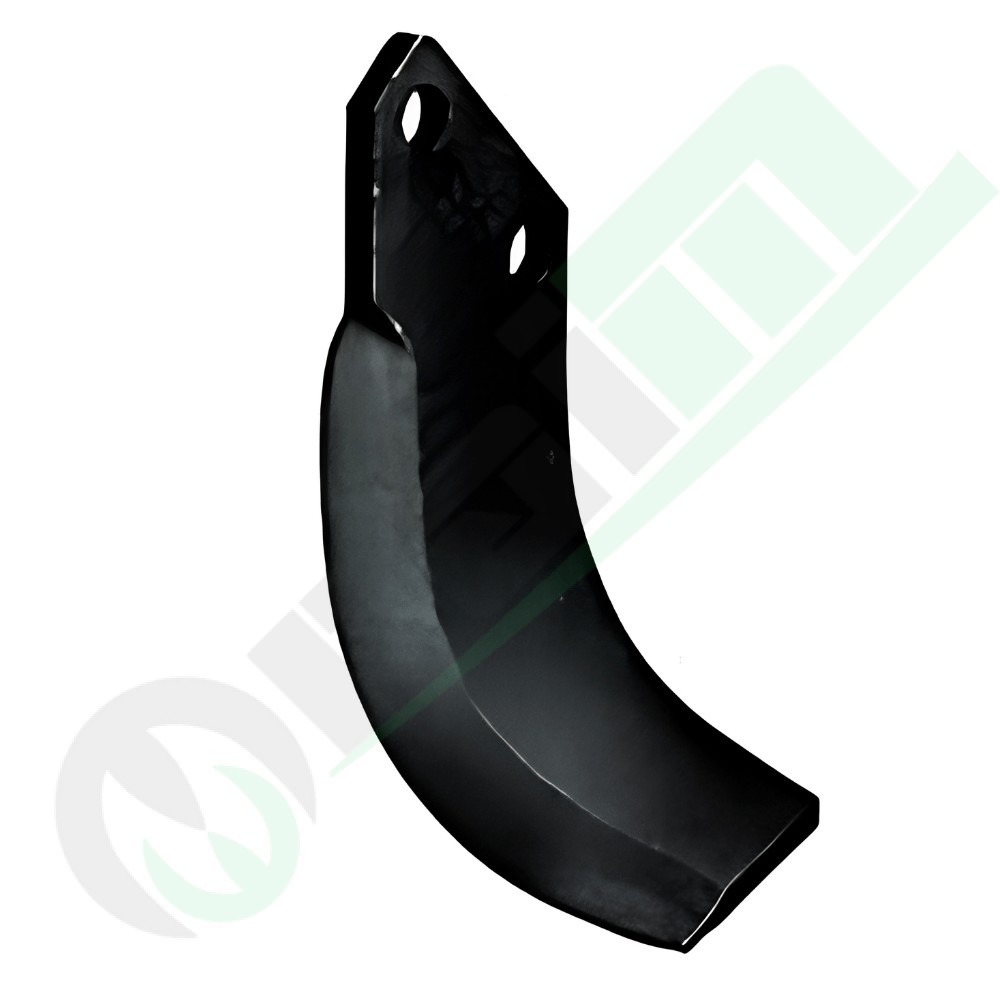

Left Curved Blade 60x8 BCS 745 Sicilia 56954 | Raim Store

Left Curved Tiller Blade 60x8 mm for BCS Rotary Tiller 745 Sicilia Ref OEM 580 48461 - 56954

star star star star star_border
Aftermarket
56954

Left-hand curved rotary tiller blade part number 56954 (flat plate 60x8 mm, hole spacing 46 mm, hole diameter 12.5 mm, dimensions 74x173x25 mm) for rotary tillers. Manufactured from heavy-duty forged steel resistant to severe wear and impacts, engineered for BCS 745 Sicilia AR/EL implements. Directly replaces original OEM reference 580 48461.

Hurry! only 5 items left in stock.
€5.70
Tax included
COUPON
- € 0,11
Final price: € 5,59
Quantity

The minimum purchase order quantity for the product is 5.

Media disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Heavy Tiller Blade for BCS 745 Sicilia AR/EL - Part Number: 56954

The Left Curved Heavy-Duty Rotary Tiller Blade (part number 56954, heavy stock section 60 × 8 mm, mounting holes Ø 12.5 mm with 46 mm center-to-center distance, working dimensions X = 74 mm, Y = 173 mm, Z = 25 mm, adaptable OEM reference 580 48461) is a drop-forged, heat-treated wear part engineered for heavy-duty agricultural cultivation. Featuring a left-hand helical profile designed to operate in complete dynamic symmetry alongside its matching right-hand blade, it ensures aggressive soil slicing, deep clod crumbling, and balanced rotor operation across BCS professional rotary tillers (model 745 Sicilia AR/EL).
Key Features & Benefits
  • Extra Heavy-Duty 60 × 8 mm Forged Alloy Steel: Hot-forged from heavy boron spring steel and through-hardened for superior bending resistance and core toughness, preventing deformation and fractures during impact with embedded rocks and hard soil.
  • Optimized Left Helical Arc “Sicilia” (Z = 25 mm): The 173 mm vertical working depth paired with a 74 mm horizontal reach and 25 mm lateral offset delivers clean soil turning, exceptional aeration, and minimal rotor clogging.
  • Structural 12.5 mm Bolt Holes (46 mm Spacing): Dual precision 12.5 mm mounting holes designed for M12 fasteners feature a 46 mm center-to-center spacing, distributing intense shear loads evenly across the rotor flange.
  • Heavy Cultivation & Residue Incorporation: Specially engineered for primary and heavy secondary tillage, breaking up compacted ground, burying dense crop residues, and operating reliably in abrasive conditions.

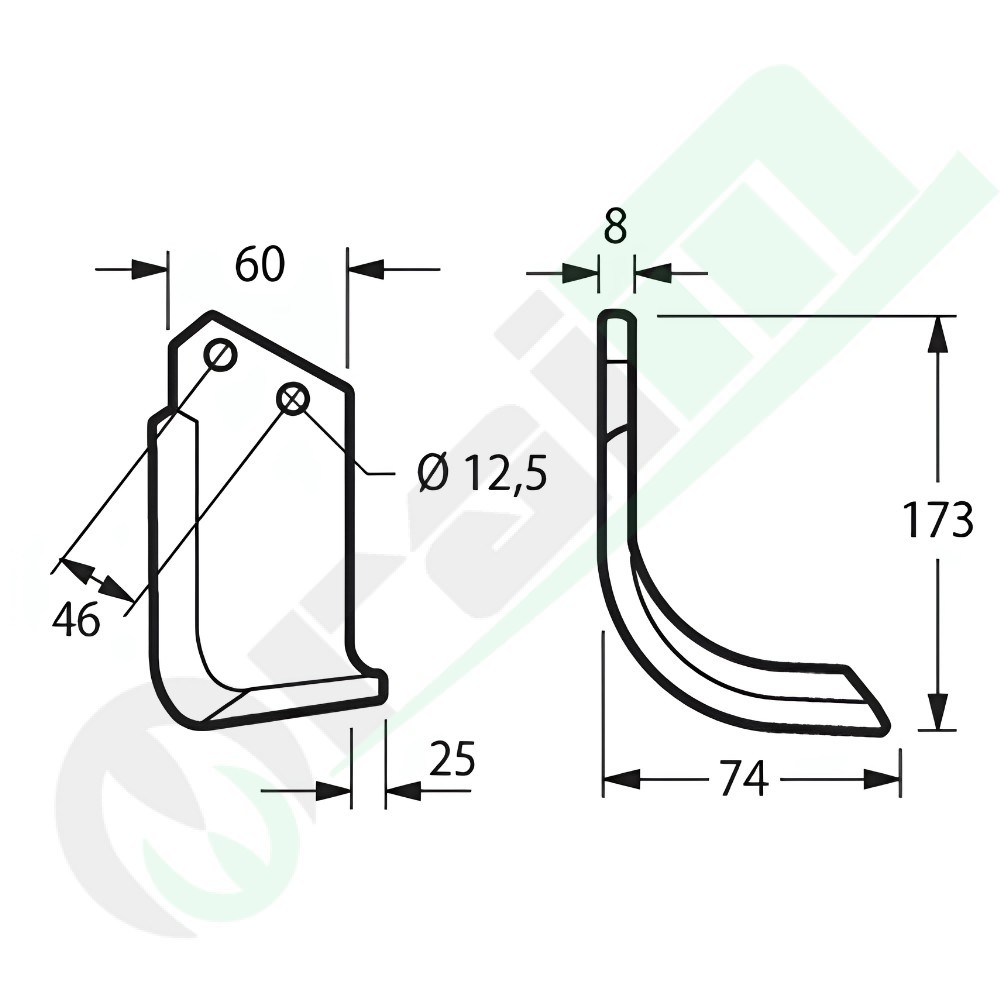

Technical Specifications
Product Code 56954
Component Type Heavy rotary tiller blade / Quenched and tempered tillage tine
Shape & Direction Heavy Helical Curved (Sicilia Type) – Left Hand (LH)
Flat Stock Section (Width × Thickness) 60 × 8 mm
Length X (Horizontal Working Reach) 74 mm
Length Y (Vertical Height) 173 mm
Lateral Offset (Z Dimension) 25 mm
Mounting Hole Diameter Ø 12.5 mm (suited for M12 hardware)
Hole Center-to-Center Distance 46 mm
Adaptable OEM Part Number 580 48461 (58048461)
Matching Opposite Blade Part number 56953 (OEM 58048460)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
BCS Heavy Rotary Tiller 745 Sicilia Arc / Helical (AR/EL)
Installation Technical Note: Fasten using exclusively high-tensile structural M12 bolts (property class 10.9 or 12.9 fine thread recommended, such as M12x1.25 assemblies) fitted with prevailing torque locknuts or high-load spring washers. Confirm that the rotor flange hole spacing matches 46 mm center-to-center and re-tighten hardware after the initial hour of field operation.
: 56954
Hurry! only 5 items left in stock.

Specific References

MPN
56953
