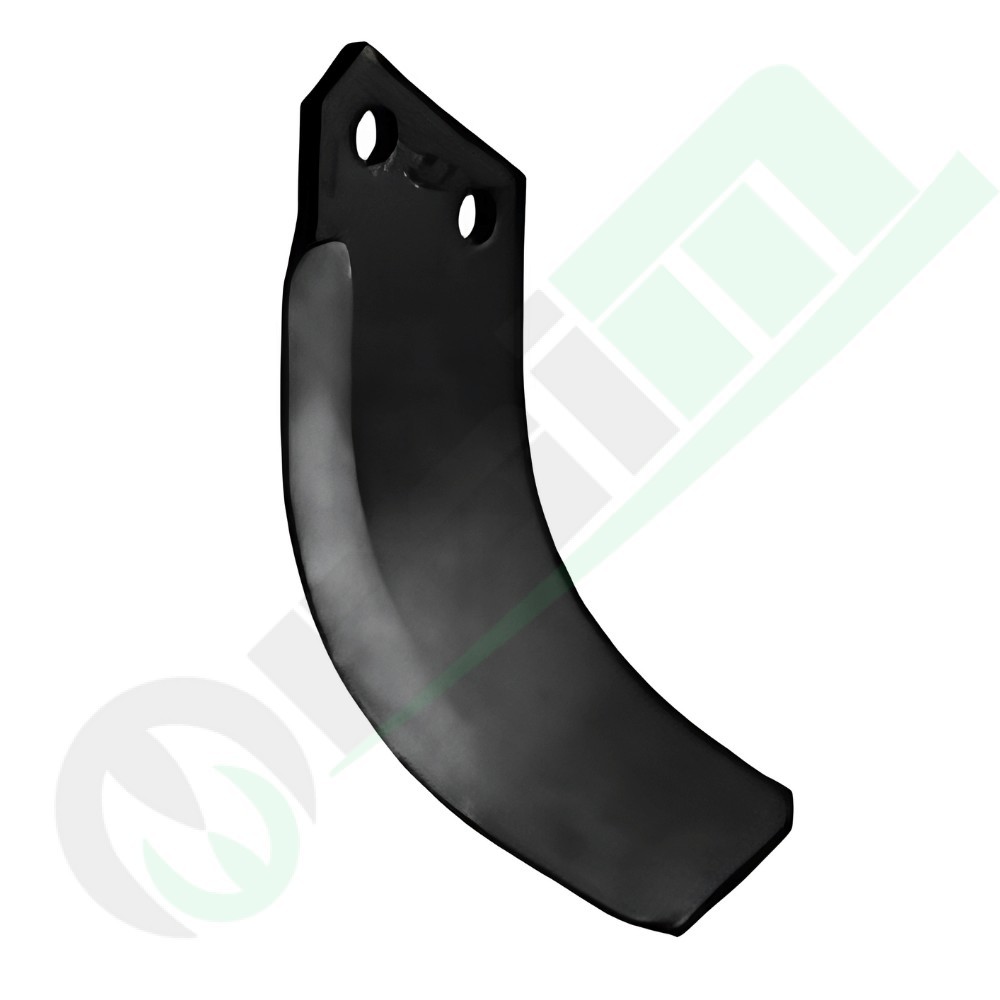

Right-Hand Curved Blade 55047 for Breviglieri B3-B4 Dondi Kverneland 30329

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Right-Hand Curved Blade 55047 for Breviglieri B3-B4 Dondi Kverneland 30329

Heavy-duty right-hand curved rotary tiller blade, part number 55047, suitable replacement for Breviglieri OEM code 30329. Manufactured from forged steel with an 80x8 mm profile, measuring length X 120 mm, height Y 220 mm, and Z 22 mm. Features 14.5 mm mounting hole diameter with 46 mm hole distance. Designed for Breviglieri B3 and B4 rotary tillers, Dondi B series, and Kverneland Maletti B series (908/909) helical arch rotors to provide clean cutting action and extended durability.

Fits

ManufacturerBreviglieriDondiKverneland - Maletti

See full table ↓

€5.90VAT incl.

Coupon -€0.12 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €5.78

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Key features

High-Tensile Forged Boron SteelFull quench-and-temper heat treatment ensures exceptional surface hardness against soil abrasion while preserving core impact toughness.

Progressive Curved Helical Profile (RH)Right-hand curved geometry with 120 mm reach slices cleanly into compacted layers, reducing PTO tractor power consumption and fuel usage.

Heavy-Duty 80x8 mm SectionThickened structural steel section built to absorb dynamic torque peaks and stone impacts in demanding field operations.

Standard Precision Bolt SpacingDual 14.5 mm holes at 46 mm centers ensure a tight, play-free fit onto factory rotor flanges.

Multi-Brand InterchangeabilityDirect replacement for OEM Breviglieri 30329 and fully compatible with corresponding Dondi and Maletti rotary tiller rotors.

Compatibility

Manufacturer	Implement TypeCompatible Models & Series
Breviglieri	Rotary TillerB3 SeriesB4 Series
Dondi	Rotary TillerB Series
Kverneland - Maletti	Rotary TillerB Series (908 / 909) Helical Arc

Specifications

Commercial Part Number	55047
OEM Cross-Reference	Breviglieri 30329
Blade Shape / Type	Curved (Helical Arc Profile)
Mounting Side	Right Hand (RH)
Flat Stock Section (Width x Thickness)	80 x 8 mm
Horizontal Reach (Dimension X)	120 mm
Vertical Length (Dimension Y)	220 mm
Lateral Offset (Dimension Z)	22 mm
Hole Diameter	14.5 mm (suited for M14 bolts)
Hole Centers Distance	46 mm
