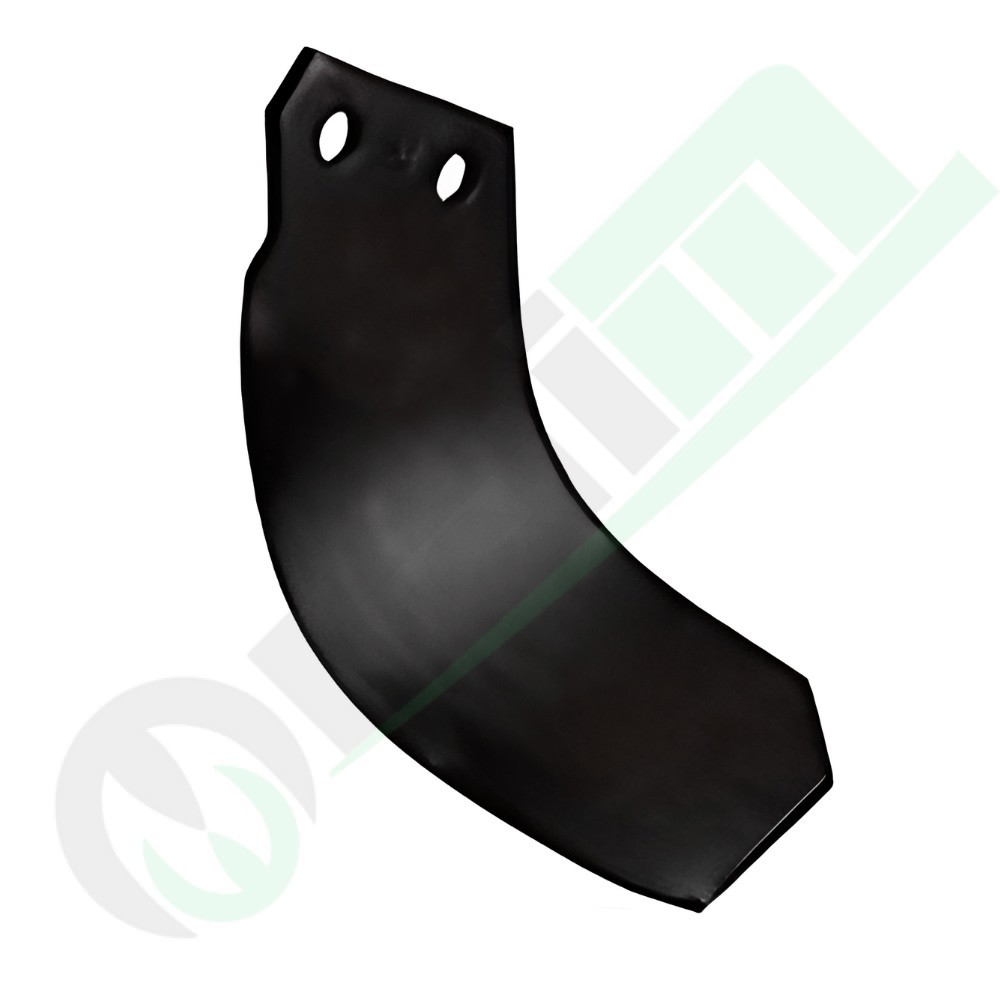

Left hand tiller blade 56166 Breviglieri B2 B12 BV2 OEM 0839

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Left hand tiller blade 56166 Breviglieri B2 B12 BV2 OEM 0839

Left hand rotary tiller blade part number 56166 suitable for Breviglieri B2, B12, and BV2 rotary tillers, matching OEM reference 0839. Manufactured with an 80x7 mm steel flat section, 12.5 mm bolt holes with 57 mm center distance, length X 130 mm, and height Y 210 mm, delivering long service life and direct equipment fit.

Fits

BreviglieriBreviglieri rotary tillers

See full table ↓

€7.90VAT incl.

Coupon -€0.16 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €7.74

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Left curved rotary tiller blade for Breviglieri B2, B12, BV2 - Part number 56166

Replacement left curved rotary tiller blade for Breviglieri tillers, commercial part number 56166. Designed for soil cultivation and seedbed preparation, it delivers efficient soil penetration and smooth material flow during rotor rotation. Compatible with Breviglieri B2, B12, and BV2 models as a replacement for OEM reference 0839. Built with an 80x7 mm heavy-duty flat section to ensure outstanding mechanical strength and resistance to field wear.

Key features

Left curved profileBlade shape designed to optimize soil turnover and residue cutting during rotor turning.

Heavy-duty 80x7 mm sectionReinforced steel dimensions providing high resistance to bending and impact stress.

Two-hole mounting57 mm hole centers with 12.5 mm holes for rigid and secure attachment to the rotor flange.

Direct fitExact dimensional match with OEM part number 0839 for quick and reliable replacement.

Compatibility

Breviglieri rotary tillers

B2B12BV2

Specifications

Commercial part number	56166
OEM reference	0839
Machine manufacturer	Breviglieri
Shape	Curved
Side	Left
Flat section (width x thickness)	80x7 mm
Flat width	80 mm
Flat thickness	7 mm
Length - X	130 mm
Length - Y	210 mm
Hole diameter	12.5 mm
Hole centers	57 mm

Fitting tipsBefore fitting, clean the rotor flange contact surfaces to remove dirt, soil, or corrosion. Mount the blade on the left-hand side of the flange according to the direction of rotor rotation, aligning the 57 mm spaced holes. Secure with suitable bolts matching the 12.5 mm diameter, using locking nuts or safety washers. Tighten fasteners evenly to the correct torque and check bolt tightness after the initial working hours.
