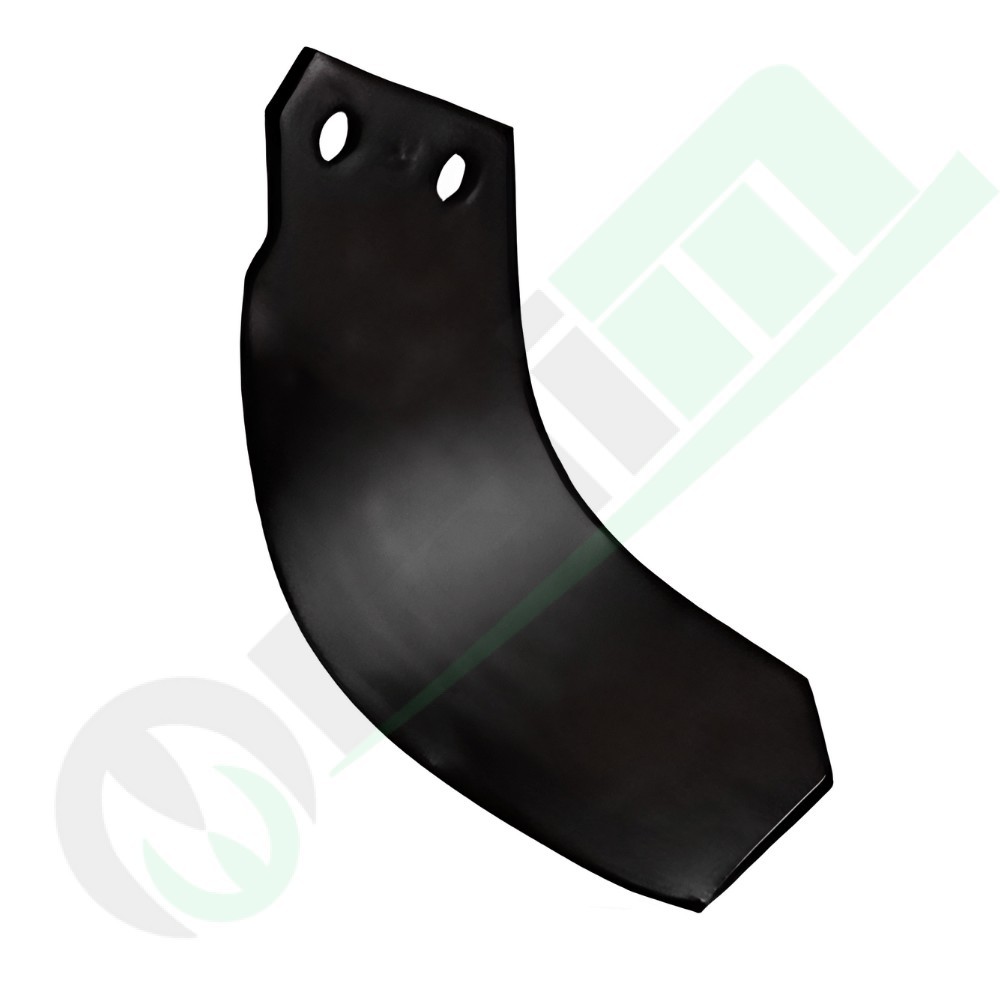

Right-Hand Curved Blade 55048 for Breviglieri B1 Rotary Tiller 10279
Right-Hand Curved Blade 55048 for Breviglieri B1 Rotary Tiller 10279
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
AftermarketRef. OEM OEM

Right-Hand Curved Blade 55048 for Breviglieri B1 Rotary Tiller 10279

Heavy-duty right-hand curved rotary tiller blade, part number 55048, suitable replacement for Breviglieri OEM codes 10279 and 8300021. Manufactured from wear-resistant steel with a 70x6 mm profile, measuring length X 115 mm, height Y 185 mm, and Z 20 mm. Features 12.5 mm mounting hole diameter with 40 mm center-to-center hole spacing. Designed specifically for Breviglieri B1 series rotary tillers to ensure clean ground cutting and extended service life.

  • Heat-Treated Forged Boron Steel
  • Progressive Curved Profile (RH)
  • Sturdy 70x6 mm Flat Stock
€4.90VAT incl.
Coupon -€0.10 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €4.80

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Heavy-duty right-hand curved rotary tiller blade, part number 55048, suitable replacement for Breviglieri OEM codes 10279 and 8300021. Manufactured from wear-resistant steel with a 70x6 mm profile, measuring length X 115 mm, height Y 185 mm, and Z 20 mm. Features 12.5 mm mounting hole diameter with 40 mm center-to-center hole spacing. Designed specifically for Breviglieri B1 series rotary tillers to ensure clean ground cutting and extended service life.

Key features

Heat-Treated Forged Boron SteelQuenched and tempered alloy steel providing high abrasion resistance and core toughness against rocks and hard soil impacts.
Progressive Curved Profile (RH)115 mm horizontal reach and 20 mm lateral offset designed for smooth ground penetration, lowering drag resistance and PTO tractor fuel consumption.
Sturdy 70x6 mm Flat StockSized to withstand heavy cyclic loads and torsional forces on compact to medium rotary tiller rotors.
Accurate 12.5 mm Hole SpacingStandard 40 mm hole center distance matches original Breviglieri B1 brackets for a secure, play-free installation with M12 fasteners.
Direct OEM InterchangeabilityDirect cross-reference replacement for Breviglieri part numbers 10279 and 8300021.

Specifications

Commercial Part Number55048
OEM Cross-ReferencesBreviglieri 10279, 8300021
Blade Shape / TypeCurved (Helical Profile)
Mounting SideRight Hand (RH)
Flat Stock Section (Width x Thickness)70 x 6 mm
Horizontal Reach (Dimension X)115 mm
Vertical Length (Dimension Y)185 mm
Lateral Offset (Dimension Z)20 mm
Hole Diameter12.5 mm (suited for M12 bolts)
Hole Centers Distance40 mm
Machinery CompatibilityRotary tiller Breviglieri B1
