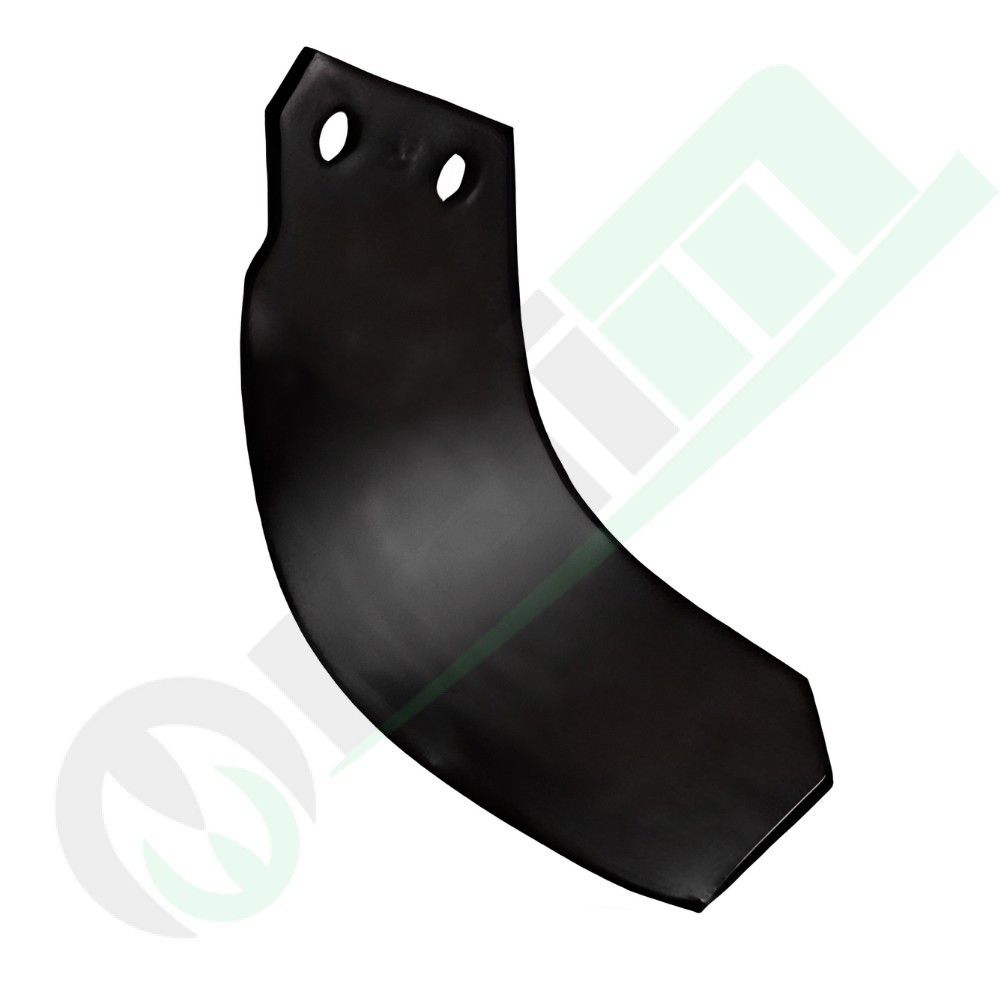

Left-Hand Curved Blade 55541 for Breviglieri B1 Rotary Tiller 8300020
Heavy-duty left-hand curved rotary tiller blade, part number 55541, suitable replacement for Breviglieri OEM codes 10279 and 8300020. Manufactured from high-grade wear-resistant steel with a 70x6 mm profile, measuring length X 115 mm, height Y 185 mm, and Z 20 mm. Features 12.5 mm bolt holes spaced at 40 mm center-to-center. Designed specifically for Breviglieri B1 series rotary tillers, providing consistent tillage performance and high structural resistance.
Read more ↓Fits
€4.90VAT incl.
⚡ Limited-time deal
00days
:00hrs
:00min
:00sec
Coupon
-€0.10
-2% sul carrello
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €4.80
Not sure it fits?Message us with your tractor model
WhatsAppSecure paymentsEasy returnsFree shipping over €30 + VAT
Description
Left curved rotary tiller blade for Breviglieri B1 - Part number 55541
Replacement left curved rotary tiller blade for Breviglieri tillers, commercial part number 55541. Designed for soil preparation and tillage operations, it provides an even cut and optimal soil flow during rotor rotation. Fully adaptable to Breviglieri B1 series models as a direct replacement for OEM part numbers 10279 and 8300020. Manufactured with a 70x6 mm flat cross-section to ensure mechanical strength and wear resistance in demanding field conditions.
Key features
Left curved profileEngineered geometry that improves soil penetration and ensures effective cutting of crop residues.
Reinforced 70x6 mm sectionSolid steel bar dimensions designed to withstand deflection, impacts, and heavy working stresses.
Accurate hole pattern40 mm hole centers with 12.5 mm holes for a rigid fit without play on rotor flanges.
Direct interchangeabilityFull dimensional compatibility with OEM numbers 10279 and 8300020 for quick routine maintenance.
Compatibility
| Breviglieri rotary tillers | B1 |
Model not listed? Message us on WhatsApp.
Specifications
| Commercial part number | 55541 |
|---|---|
| OEM reference | 10279, 8300020 |
| Machine manufacturer | Breviglieri |
| Shape | Curved |
| Side | Left |
| Flat section (width x thickness) | 70x6 mm |
| Flat width | 70 mm |
| Flat thickness | 6 mm |
| Length - X | 115 mm |
| Length - Y | 185 mm |
| Length - Z | 20 mm |
| Hole diameter | 12.5 mm |
| Hole centers | 40 mm |
Fitting tipsBefore assembly, thoroughly clean the rotor flange to remove soil buildup, rust, or debris. Check the rotor rotation direction and fit the blade on the left side of the mounting bracket, ensuring proper alignment with the 40 mm hole spacing. Use appropriate bolts matching the 12.5 mm hole diameter, preferably high-tensile grade with locking nuts. Tighten all hardware to the specified torque setting and inspect bolt tightness after the first hours of field operation.
