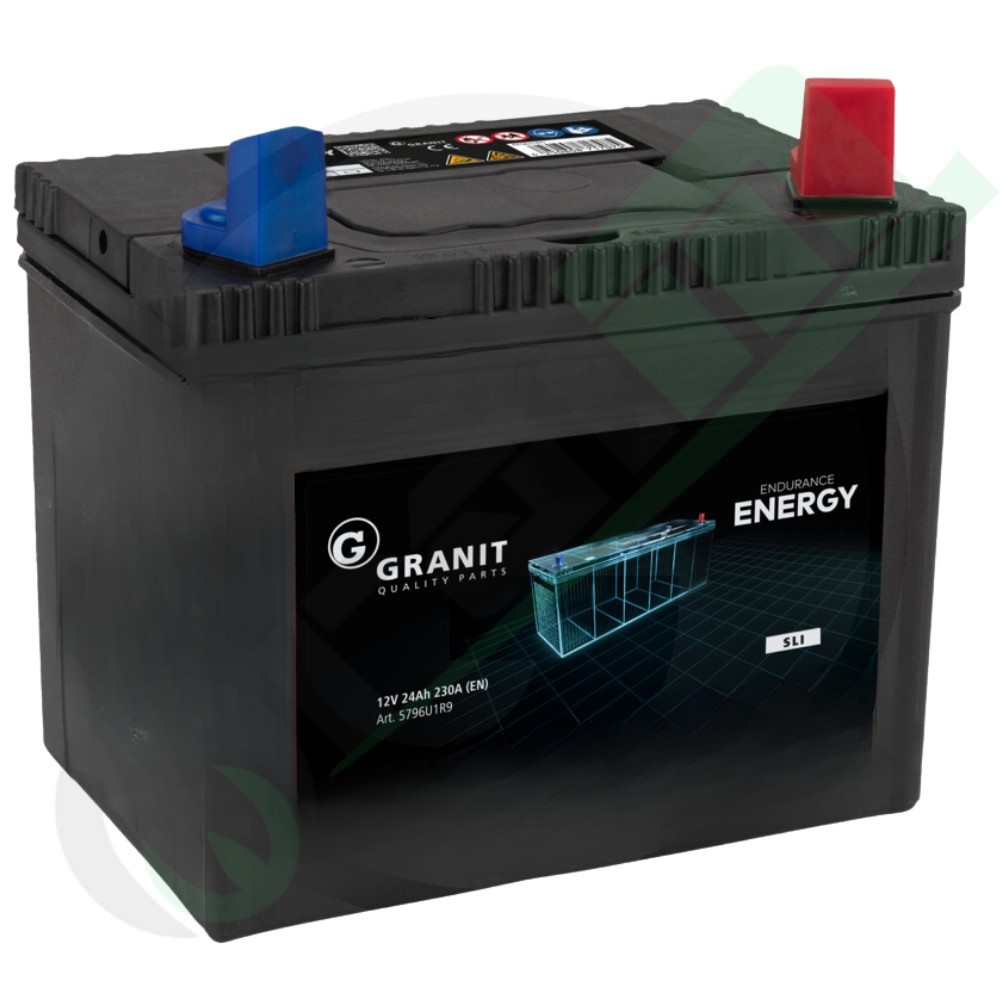

Endurance Energy Starter Battery 12V 24Ah 230A Flat Terminal 5796U1R9

Endurance Energy 12V SLI starter battery, part number 5796U1R9 (OEM cross references GB U1R-48M-IDX, GBU1R48MIDX, 714446, 682417). Delivers 24Ah nominal capacity with 230A cold cranking amps (EN), flat tab terminals, layout 0 (positive right -/+), B00 hold-down, and V2 vibration resistance standard. Compact 195 x 130 x 183 mm size, engineered for lawn tractors, compact agricultural machinery, and garden equipment.

Optimized Cold Cranking Output (230A EN)
Bolt-Through Flat Lug Terminals
Standard Polarity Layout 0 (- / + Positive on the Right)

€59.00VAT incl.

Coupon -€1.18 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €57.82

Shipping always charged for this item Not eligible for free shipping: even above €30.00 you pay its shipping. The rest of your order still ships free.

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Key features

Optimized Cold Cranking Output (230A EN)Substantial instantaneous discharge power concentrated in a compact casing, delivering crisp and reliable engine starts on petrol and small diesel utility engines even after extended winter downtime.

Bolt-Through Flat Lug TerminalsEngineered flat contact posts with pre-drilled bolt eyelet holes, ensuring a vibration-proof electrical bond that prevents arcing and terminal loosening.

Standard Polarity Layout 0 (- / + Positive on the Right)Standard U1R terminal layout configured to match factory wiring harnesses on groundcare and utility equipment requiring a right-hand positive post.

Class V2 Vibration Resistance (EN Standard)Specially anchored internal plate groups designed to absorb high-frequency engine pulses and continuous deck shocks during commercial turf-mowing cycles.

Smooth B00 Base LedgeClean, flat-bottom casing design engineered for seamless drop-in installation into battery trays secured by top hold-down brackets.

Specifications

Commercial Part Number	5796U1R9
OEM References & Cross-Codes	GB U1R-48M-IDX, 714446, 682417, U1-9R SMF12V/32AH SMF CA/CA, U19RSMF12V32AHSMFCACA, GBU1R48MIDX
Brand / Product Range	Endurance Energy
Nominal Voltage	12 V
Nominal Capacity (Ah)	24 Ah
Cold Cranking Amps (CCA)	230 A (EN rating)
Battery Classification	SLI (Starting, Lighting, Ignition)
Terminal Type	Flat Lug (with bolt-through hole)
Circuit / Polarity Layout	Layout 0 (Positive on the right – RH) • Terminal sequence: - / +
Base Hold-Down Type	B00 (flat bottom without lower ledges, top-clamp secured)
Vibration Resistance	Class V2 (in accordance with EN 50342)
External Dimensions (L x W x H)	195 x 130 x 183 mm
