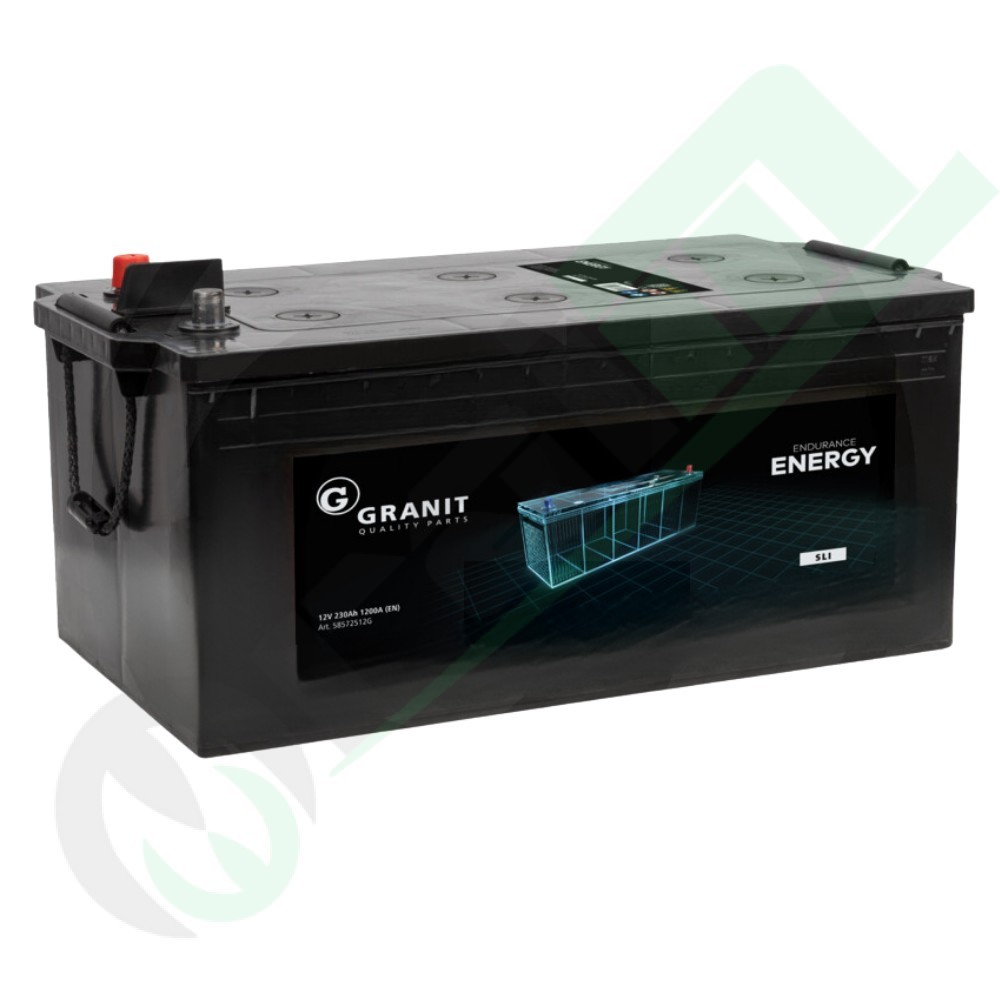

Endurance Energy 12V 230Ah 1200A EN Super Heavy-Duty Starter Battery for Volvo Excavators - Part Number: 58572512G
The Endurance Energy 12V 230Ah (1200A EN cold cranking) super heavy-duty commercial starter battery (part number and genuine reference 58572512G, case size Model C, ETN 730 012 120, UK reference H625, genuine Volvo OEM and cross-references 688679, GP 230, 602215, GB 73011SHD, FG2103, BAT2030RML) is an authentic OEM-grade ultra-high-capacity accumulator engineered specifically to meet the high cranking torque and continuous electrical demands of Volvo heavy crawler excavators and earthmoving machinery. Built with advanced Calcium/Calcium (Ca/Ca) technology in standard SLI (Starting, Lighting, Ignition) configuration, it is delivered filled, factory pre-charged, and 100% maintenance-free, eliminating electrolyte evaporation and minimizing self-discharge during machine downtime. Built with industrial dimensions of 518 x 276 x 242 mm, standard European Type 1 conical posts arranged in Layout 3, a completely smooth B00 base (for top hold-down bracket clamping), and the highest European vibration resistance rating of Class V4 (EN 50342 standard), it protects internal plate packs from mechanical damage during severe rock breaking, demolition, and quarry excavation. Backed by a 3-year warranty, it delivers direct plug-and-play fitment across Volvo heavy crawler excavators in the B, C, D, and E series.
Key Features & Engineering Advantages
- Massive Cold Cranking Power (1200A EN): Massive instantaneous amperage specifically engineered to turn over large-displacement Volvo 6-cylinder heavy turbocharged diesel engines (D7, D8, D12, D13), ensuring reliable starting in sub-zero winter jobsite conditions.
- Maintenance-Free Calcium/Calcium (Ca/Ca) Technology: Advanced lead-calcium grid formulation minimizes seasonal self-discharge and eliminates water consumption, ready for heavy duty straight out of the box.
- Maximum Class V4 Vibration Resistance (EN 50342): Hot-melt structural plate anchoring and reinforced pocket separators deliver top-tier mechanical shock endurance against severe hydraulic hammer impacts and continuous heavy quarry digging.
- Extended 3-Year Commercial Warranty: Industrial-grade build standards and thorough OEM-level validation provide long operational service life and dependable fleet investment protection.
- Smooth B00 Base & Layout 3 Configuration: Flat-bottom casing without protruding bottom ledges, engineered for deep drop-in excavator battery trays secured by rigid top hold-down clamping brackets.
Technical Specifications
| Commercial Part Number |
58572512G |
| OEM References & Cross-Codes |
58572512G, 688679, GP 230, 602215, GB 73011SHD, FG2103, BAT2030RML |
| Brand / Product Range |
Endurance Energy |
| Case Format / Model |
Model C • UK Ref: H625 |
| ETN Classification |
730 012 120 |
| Nominal Voltage |
12 V |
| Nominal Capacity (Ah) |
230 Ah |
| Cold Cranking Amps (CCA) |
1200 A (EN rating) |
| Cell Technology |
Calcium/Calcium (Ca/Ca) – Filled, pre-charged, maintenance-free |
| Battery Classification |
SLI (Super Heavy Duty Commercial / Earthmoving) |
| Terminal Type |
Type 1 (standard European conical posts) |
| Circuit / Polarity Layout |
Layout 3 (terminals located along one long side) |
| Base Hold-Down Type |
B00 (flat bottom without lower ledges, top-clamp secured) |
| Vibration Resistance |
Class V4 (maximum rating under EN 50342) |
| Warranty Coverage |
3-Year Warranty |
| External Dimensions (L x W x H) |
518 x 276 x 242 mm |
Equipment Compatibility & Volvo Crawler Excavator Models
| Manufacturer |
Machine Series |
Supported Excavator Models |
| Volvo (Construction Equipment) |
B Series |
EC240B LC, EC290B LC, EC330B LC, EC360B LC, EC460B LC |
| C Series |
EC240C L, EC290C L, EC330C L, EC360C L, EC460C L |
| D Series |
EC250D, EC300D L, EC380D L |
| E Series |
EC350E L, EC380E L |
Installation Advice & Workshop Notes: Before installation, confirm the compartment dimensions (518x276x242 mm) and verify the 24V configuration (heavy excavators typically connect two 12V units in series). Switch off the excavator ignition and open the main master battery isolator; disconnect the negative ground cable (-) first, followed by the positive cable (+). Clean the mounting tray of dirt and debris, seat the battery onto the flat B00 base, and securely fasten the heavy-duty top hold-down bracket to prevent displacement during rock breaking or excavator travel. Reconnect standard Type 1 posts by attaching the positive terminal (+) first and the negative terminal (-) last; avoid overtightening terminal nuts and apply a thin layer of technical petroleum jelly or dielectric grease to prevent terminal oxidation. During prolonged jobsite lay-offs, open the master isolator or connect to a 24V industrial maintenance trickle charger.
