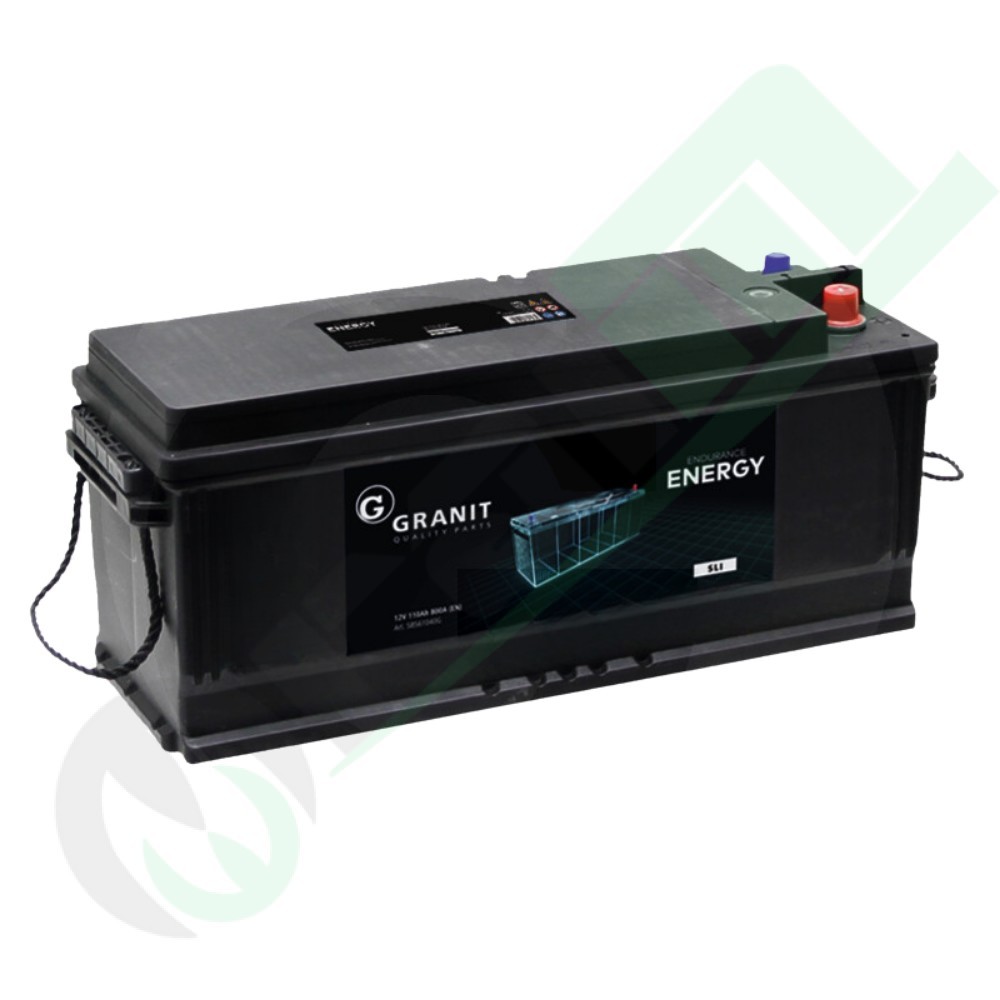

Endurance Energy 12V 110Ah 800A EN Long-Case (MAC 110) Starter Battery for John Deere Machinery - Part Number: 58561040G
The Endurance Energy 12V 110Ah (800A EN cold cranking) extended-case starter battery (part number 58561040G, special case format Model MAC 110, ETN 610 040 080, UK reference 615, genuine John Deere and manufacturer OEM references BAT110TRL, GB 61023, 61099 / FH1105, 61099FH1105, 018 61040 N, 61040, AL75644, AL205731, MCEX760PF, EPYP610013, AZ27734, AL27257, AT26552, AT41087, AZ25963) is an authentic OEM-grade heavy-duty starting accumulator engineered specifically for John Deere tractors and combine harvesters utilizing long, narrow battery trays. Manufactured with advanced Calcium/Calcium (Ca/Ca) technology in standard SLI (Starting, Lighting, Ignition) configuration, it is delivered filled, factory pre-charged, and 100% maintenance-free, eliminating electrolyte evaporation and minimizing seasonal self-discharge. Featuring industrial dimensions of 514 x 175/176 x 210 mm, European standard Type 1 conical posts arranged in Layout 3, a B03 hold-down base ledge, and an EN 50342 class V3 vibration resistance rating, it protects internal plate packs from mechanical fatigue during heavy agricultural fieldwork. Backed by a 3-year warranty, it delivers direct plug-and-play fitment across an extensive lineup of John Deere machines (5M, 5R/5RN, 11 series, 900, 1000 combine harvesters, and 5400, 6000/6000SE, 6010/6010SE, 6020/6020SE, 6030/6030 Premium series).
Key Features & Engineering Advantages
- Special MAC 110 Long-Case Profile (514x175x210 mm): Long, narrow footprint engineered specifically to fit perfectly into the narrow battery trays located beneath the cab or along the chassis of John Deere machines.
- Maintenance-Free Calcium/Calcium (Ca/Ca) Technology: Advanced lead-calcium grid formulation minimizes seasonal self-discharge and eliminates water consumption, ready for heavy duty straight out of the box.
- High Cold Cranking Power (800A EN): Substantial instantaneous discharge power specifically engineered to reliably start 4- and 6-cylinder John Deere PowerTech diesel engines, even in sub-zero winter temperatures.
- Class V3 Vibration Resistance (EN 50342 Standard): Reinforced plate anchoring and heavy-duty envelope separators deliver superior mechanical endurance against rough terrain shocks and continuous fieldwork vibration.
- Extended 3-Year Commercial Warranty: Industrial-grade manufacturing standards and stringent quality testing provide long operational life and dependable fleet investment protection.
- B03 Base Hold-Down & Layout 3 Configuration: Molded bottom ledge profile and standard Type 1 conical posts aligned for seamless integration with original factory John Deere battery cables.
Technical Specifications
| Commercial Part Number |
58561040G |
| John Deere & OEM References |
BAT110TRL, GB 61023, 61099 / FH1105, 61099FH1105, 018 61040 N, 61040, AL75644, AL205731, MCEX760PF, EPYP610013, AZ27734, AL27257, AT26552, AT41087, AZ25963 |
| Brand / Product Range |
Endurance Energy |
| Case Format / Model |
Model MAC 110 (Long-Case) • UK Ref: 615 |
| ETN Classification |
610 040 080 |
| Nominal Voltage |
12 V |
| Nominal Capacity (Ah) |
110 Ah |
| Cold Cranking Amps (CCA) |
800 A (EN rating) |
| Cell Technology |
Calcium/Calcium (Ca/Ca) – Filled, pre-charged, maintenance-free |
| Battery Classification |
SLI (Heavy Duty Commercial / Agricultural) |
| Terminal Type |
Type 1 (standard European conical posts) |
| Circuit / Polarity Layout |
Layout 3 (terminals located along one long side) |
| Base Hold-Down Type |
B03 |
| Vibration Resistance |
Class V3 (in accordance with EN 50342) |
| Warranty Coverage |
3-Year Warranty |
| External Dimensions (L x W x H) |
514 x 175/176 x 210 mm |
Equipment Compatibility & John Deere Machinery Application Guide
| Manufacturer |
Machine Series |
Supported Models |
| John Deere |
5M & 5R / 5RN Series |
5070M, 5080M, 5090M, 5100M • 5080R, 5090R, 5100R |
| 11 Series Combine Harvesters |
1166, 1169, 1174, 1177 |
| 900 & 1000 Series Combine Harvesters |
965, 968, 975, 985 • 1065, 1068H, 1072, 1075, 1085 |
| 5400 Series |
5420 |
| 6000 / 6000SE Series |
6100, 6200, 6300, 6400 • SE6100, SE6200, SE6300, SE6400 |
| 6010 / 6010SE Series |
6010, 6110, 6210, 6310, 6410 • SE6010, SE6110, SE6210, SE6310, SE6410 |
| 6020 / 6020SE Series |
6020, 6120, 6220, 6320, 6420, 6420S • SE6020, SE6120, SE6220, SE6320, SE6420 |
| 6030 / 6030 Premium Series |
6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR |
Installation Advice & Workshop Notes: Before installation, confirm the extended tray dimensions (514x175x210 mm) and check Layout 3 terminal polarity alignment. Switch off the equipment ignition and open the main master battery isolator; disconnect the negative ground cable (-) first, followed by the positive cable (+). Clean the mounting tray of dirt, chaff, and debris, seat the battery into the tray engaging the B03 base ledges, and secure the hold-down bracket firmly to ensure proper Class V3 vibration dampening. Reconnect standard Type 1 posts by attaching the positive terminal (+) first and the negative terminal (-) last; avoid overtightening terminal nuts and apply a thin layer of technical petroleum jelly or dielectric grease to prevent terminal corrosion. During seasonal machine storage, open the master disconnect switch or connect to an intelligent 12V maintenance trickle charger.
