Hydraulic Top Link Cylinder for Massey Ferguson Tractors Cat. 3 Quick Hook Part Number 50882
The heavy-duty hydraulic top link cylinder (code 50882) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Massey Ferguson tractors from the 5400 Series (particularly the 5465 Tier 2 model). It features a minimum length of 590 mm, a stroke of 220 mm, an 80 mm bore, and a 40 mm rod diameter. It comes equipped with a Cat. 3 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.
Read more ↓Fits
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €371.42
Description
The heavy-duty hydraulic top link cylinder (code 50882) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Massey Ferguson tractors from the 5400 Series (particularly the 5465 Tier 2 model). It features a minimum length of 590 mm, a stroke of 220 mm, an 80 mm bore, and a 40 mm rod diameter. It comes equipped with a Cat. 3 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.
Compatibility
| 5400 Series | 5465 (Tier 2) |
Model not listed? Message us on WhatsApp.
Specifications

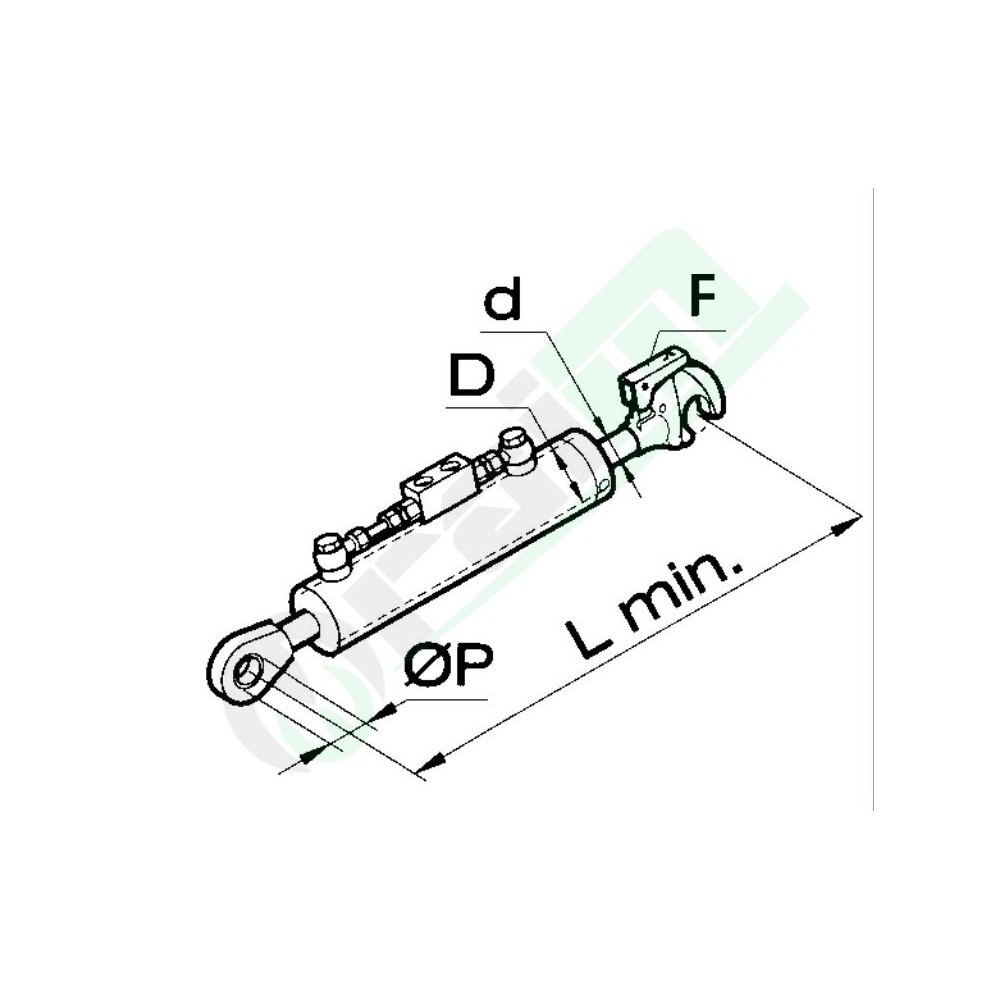

| Component Classification | Double-acting hydraulic top link actuator cylinder |
|---|---|
| Brand Compatibility | Massey Ferguson (Adaptable) |
| Minimum Length (Retracted) | 590 mm |
| Cylinder Stroke | 220 mm |
| Cylinder Bore Diameter (D) | 80 mm |
| Piston Rod Diameter (d) | 40 mm |
| Piston Rod End Fitting (F) | Automatic quick-release latch catch hook - Cat. 3 National |
| Cylinder Base End Fitting (P) | Spherical knuckle joint swiveling ball eye Ø 25.4 mm |
| Hydraulic Port Connection | 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve) |
| Product Code | 50882 |
