Hydraulic Top Link Cylinder for Goldoni Tractors Cat. 2 Walterscheid Hook Part Number 50890
The specialized hydraulic top link cylinder (code 50890, adaptable to OEM part numbers 00036490 and 00062190) is custom-engineered for Goldoni tractors. It features a minimum length of 600 mm, a stroke of 238 mm, a 60 mm bore, and a 30 mm rod diameter. The rod end is equipped with a premium Cat. 2 Walterscheid quick-release hook, while the cylinder base end features a Ø 19.3 mm ball joint. Complete with a 3/8" dual pilot check valve, it perfectly fits Goldoni Compact series (614D, 654, 664, 774), Star Quadrifoglio (4000 Q), and Star series (50, 70, 75) tractors.
Read more ↓Fits
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €312.62
Description
The specialized hydraulic top link cylinder (code 50890, adaptable to OEM part numbers 00036490 and 00062190) is custom-engineered for Goldoni tractors. It features a minimum length of 600 mm, a stroke of 238 mm, a 60 mm bore, and a 30 mm rod diameter. The rod end is equipped with a premium Cat. 2 Walterscheid quick-release hook, while the cylinder base end features a Ø 19.3 mm ball joint. Complete with a 3/8" dual pilot check valve, it perfectly fits Goldoni Compact series (614D, 654, 664, 774), Star Quadrifoglio (4000 Q), and Star series (50, 70, 75) tractors.
Compatibility
| COMPACT Series | Compact 614DCompact 654Compact 664Compact 774 |
| STAR QUADRIFOGLIO Series | Star 4000 Q |
| STAR Series | Star 50Star 70Star 75 |
Model not listed? Message us on WhatsApp.

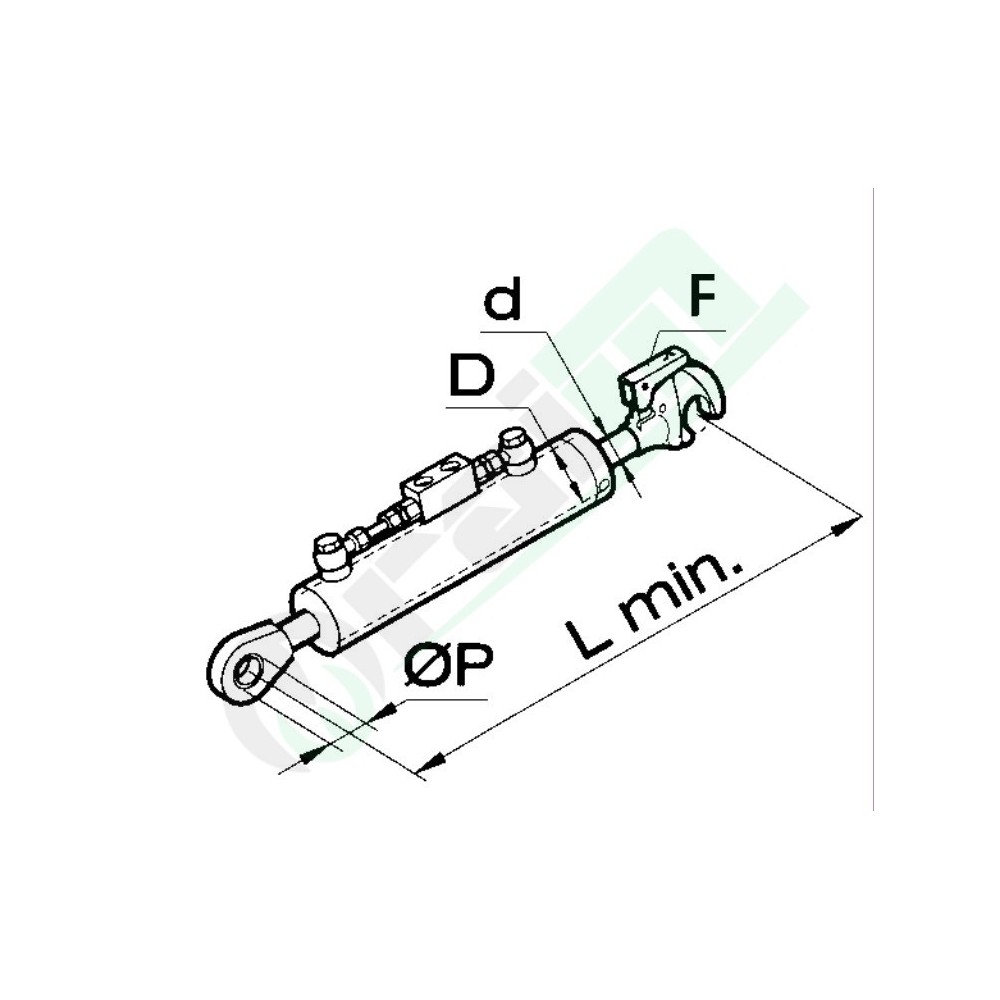

Specifications
| Component Classification | Double-acting hydraulic top link actuator cylinder |
|---|---|
| Goldoni OEM Cross-Reference | 00036490, 00062190 |
| Minimum Length (Retracted) | 600 mm |
| Cylinder Stroke | 238 mm |
| Cylinder Bore Diameter (D) | 60 mm |
| Piston Rod Diameter (d) | 30 mm |
| Piston Rod End Fitting (F) | Original Walterscheid automatic quick-release catch hook - Cat. 2 |
| Cylinder Base End Fitting (P) | Spherical swiveling ball eye joint Ø 19.3 mm |
| Hydraulic Port Connection | 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve) |
| Product Code | 50890 |
