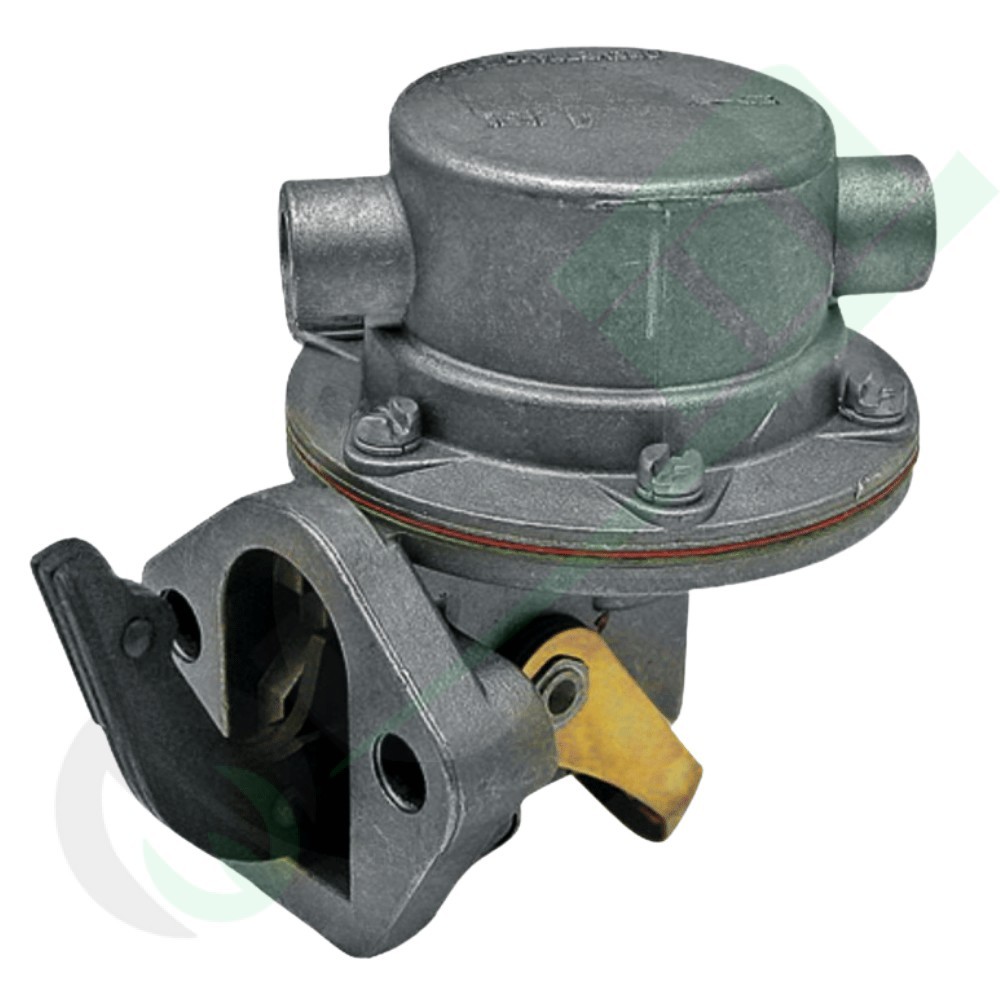

Fuel Lift Diaphragm Pump for John Deere Tractors Series 20 30 40 50 Ref RE527115 RE37482 AR92777 - 38019431

star star star star star_border
Aftermarket
38019431

Mechanical diaphragm fuel lift pump 38019431 (45 mm hole spacing, 10x1 threaded port) for John Deere engines, combine harvesters, and tractors Series 20, 30, 40, 50, 900, and 1000. Fully compatible with OEM part numbers RE527115, RE37482, AR92777, AR77914, DD13483, DD14195, and RE42211.

Hurry! only 21 items left in stock.
€25.90
Tax included
COUPON
- € 0,52
Final price: € 25,38
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Lift Pump - Part Number: 38019431

The Diaphragm Fuel Lift Pump (part number 38019431, original John Deere cross-references RE527115, RE37482, DD13483, AR77914, and Pierburg ref. 7.02242.54.0) is a precision 2-hole mechanical fuel delivery unit engineered to deliver continuous and reliable fuel flow to the injection pump across an extensive lineup of John Deere tractors, combines, and PowerTech engines (300 / 400 / 600 series).
Key Features & Benefits
  • Consistent Fuel Delivery: Maintains uniform flow rate and stable pressure feed to the high-pressure fuel injection system.
  • Heavy-Duty Diaphragm: Engineered from fuel-resistant materials capable of withstanding prolonged exposure to diesel and biodiesel without degradation.
  • OEM Fitment: Built strictly to original John Deere dimensional tolerances for direct, trouble-free installation onto the engine block.
Technical Specifications
Product Code 38019431
Mounting Type 2-hole mounting flange
Hole Spacing (Center to Center) 45 mm
Lever Length (Flange to tip) 30 mm
Port Thread M10 x 1
Equivalent OEM References 7.02242.54.0, RE527115, RE526203, RE42211, RE43274, RE37482, RE37463, RE27667, RE13517, DD13483, DD14195, DD14292, AR92777, AR77914, AR64120, AR60559, AR55730, AR52729, AR52556, AR52159, AR52158, AR47304, AR40259
Application Table & Compatible John Deere Models / Engines
Series / Category Compatible Models
John Deere Engines PowerTech, 3164, 3179, 4202, 4219, 4239, 6303, 6359
10 & 11 Series 1010, 2010, 2510, 4010, 5010; 1166, 1169, 1174, 1177
20 & 30 Series 820, 920, 1020, 1120, 1520, 2020, 2120, 3020, 3120, 4020, 4520, 4620, 5020; 830, 930, 1030, 1130, 1530, 1630, 1630VU, 1830, 2030, 2130, 3030, 3130, 4030, 4230, 6030
35 & 40 Series 1035, 1635, 2035, 2135, 3135; 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3140, 3340, 3640, 4040, 4040S, 4240
45F & 50 Series 1745F, 1845F, 2345F; 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3150, 3350, 3650, 4050
Combines (900 & 1000 Series) 925, 935, 945, 952, 955, 965, 968, 975; 1032, 1042, 1052, 1055, 1065, 1068H, 1072, 1075, 1085
2000, 5000, 5400, 7000 Series 2440, 2520; 5200, 5400; 5420; 7200, 7600
Technical Note: Prior to installation, confirm mounting hole center distance (45 mm), lever projection length (30 mm), and port thread pitch (M10x1) to ensure proper mechanical engagement with the engine camshaft/lifter.
: 38019431
Hurry! only 21 items left in stock.

Specific References

MPN
38019431
