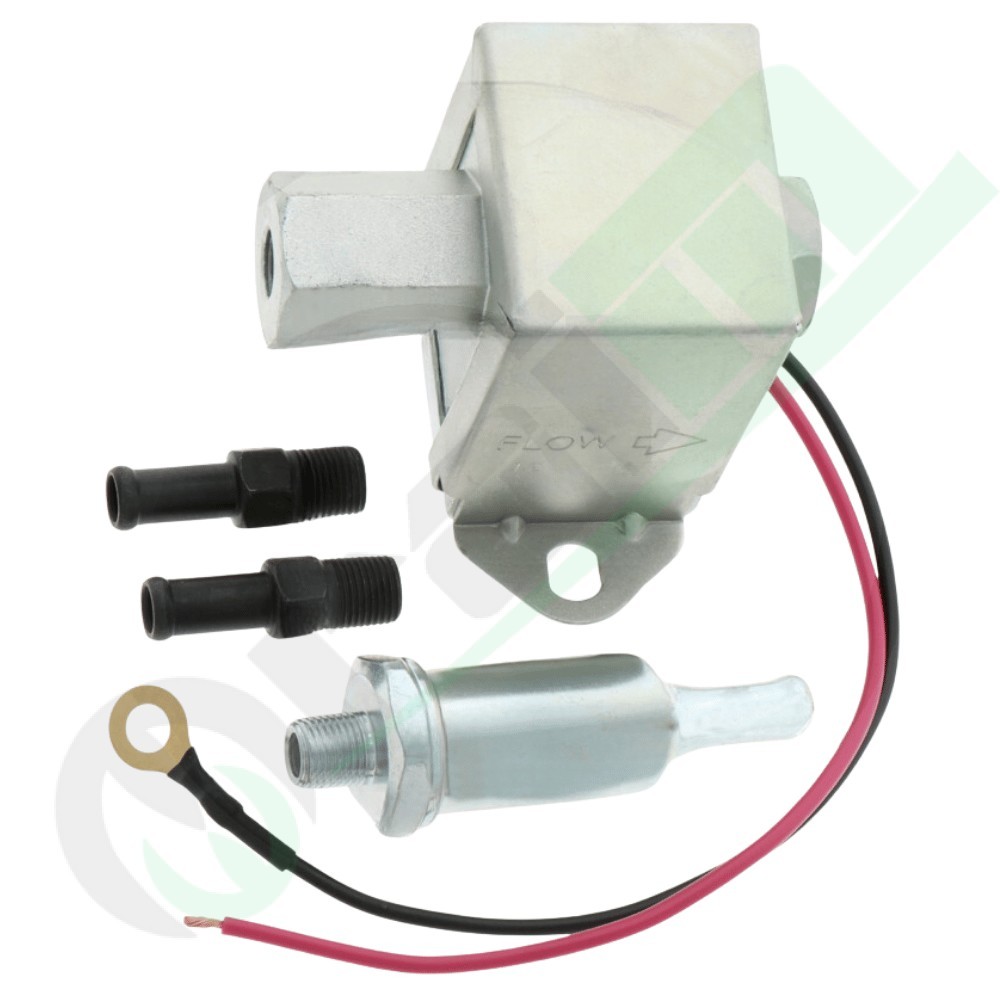

12V Electric Fuel Lift Pump for John Deere Tractors 5000 1000 11 CTS Series Ref AH130127 070188 - 38012311

star star star star star_border
Aftermarket
38012311

12V electric diaphragm fuel lift pump 38012311 (flow rate 128 L/h, max 0.48 bar, 1/8" NPT fittings Ø 6.5 mm, 64 mm hole pitch) suitable for diesel, petrol, and vegetable oil. Compatible with John Deere combine harvesters and tractors Series 11, 100, 1000, 5000, 5010/5010N, and CTS Series. Replaces OEM parts AH130127 and 070188.

Hurry! only 19 items left in stock.
€84.50
Tax included
COUPON
- € 1,69
Final price: € 82,81
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

12V Electric Diaphragm Fuel Lift Pump - Part Number: 38012311

The 12V Electric Diaphragm Fuel Lift Pump (part number 38012311, John Deere OEM references AH130127 and 070188) is a high-efficiency self-priming auxiliary fuel pump equipped with built-in overpressure shut-off. It is engineered for diesel, gasoline, and vegetable oil / biofuel compatibility on John Deere tractors, combines, and agricultural machinery.
Key Features & Benefits
  • Multi-Fuel Compatibility: Specifically engineered to handle diesel fuel, gasoline, and high-viscosity vegetable oil / biofuel mixtures.
  • Overpressure Safety Cut-Off: Integrated pressure-sensing mechanism disengages automatically under overpressure conditions.
  • Self-Priming Capability: High suction lift up to 0.3 meters with a reliable steady delivery rate of 128 L/h.
  • Complete Hose Connection Kit: Supplied with two Ø 6.5 mm hose barb connectors for female tapered 1/8"-27 NPT ports.
Technical Specifications
Product Code 38012311
Operating Voltage 12 V DC
Flow Rate / Max Pressure 128 L/h · Max Pressure 0.48 bar (approx. 7 PSI)
Suction Lift & Connections Self-priming up to 0.3 m · 1/8"-27 NPT thread with two Ø 6.5 mm hose fittings included
Body Dimensions & Mounting 72 mm (body length) x 50 mm (width) x 60 mm (height) · Hole Spacing: 64 mm (Ø 7 mm holes)
Equivalent John Deere OEM AH130127, 070188
Application Table & Compatible John Deere Models
Series / Category Specific Compatible Models
100 Series (Lawn & Garden) 116, 116H, 175, 185
5000 & 5010 / 5010N Series Tractors 5300, 5400, 5500; 5310, 5310N, 5410, 5510, 5510N
11 Series Combines 1155, 1157, 1158, 1166, 1169, 1174, 1177, 1188
1000 Series Combines 1032, 1042, 1052, 1055, 1065, 1068H, 1072, 1075, 1085
CTS Series Combines CTS, CTS II, CTS 9650
Technical Note: Pay strict attention to 12V electrical polarity upon wiring. Install the unit within 0.3 meters of vertical lift from the fuel supply tank to preserve self-priming reliability.
