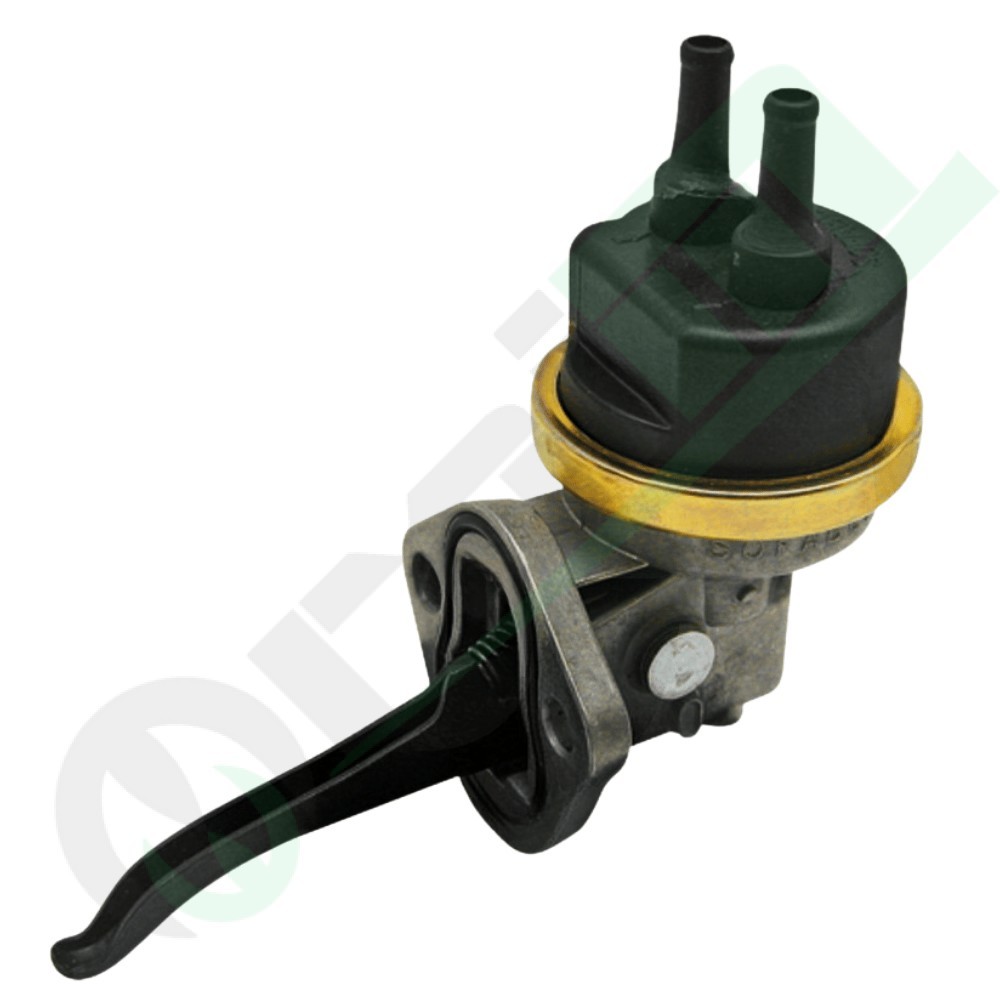

Fuel Lift Diaphragm Pump for John Deere Renault Ceres Cergos Series Ref RE61260 6005013076 - 38012303
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
AftermarketRef. OEM OEM OEM

Fuel Lift Diaphragm Pump for John Deere Renault Ceres Cergos Series Ref RE61260 6005013076 - 38012303

Mechanical diaphragm fuel lift pump 38012303 (2-hole mount, 44 mm hole spacing, 77 mm lever) for John Deere Series 3000, 3010 and Renault tractors with JD engines Series Ceres and Cergos. Direct fuel feed replacement compatible with OEM part numbers RE61260, 6005013076, and 400001.

Fits

Brand / Tractor SeriesJohn Deere - 3000 SeriesJohn Deere - 3010 SeriesRenault - Ceres Series (JD Engine)Renault - Cergos Series (JD Engine)

See full table ↓

€45.90VAT incl.
Coupon -€0.92 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €44.98

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Mechanical diaphragm fuel lift pump 38012303 (2-hole mount, 44 mm hole spacing, 77 mm lever) for John Deere Series 3000, 3010 and Renault tractors with JD engines Series Ceres and Cergos. Direct fuel feed replacement compatible with OEM part numbers RE61260, 6005013076, and 400001.

Key features

Consistent Fuel SupplyMaintains a steady flow rate and reliable line pressure to feed the high-pressure fuel injection pump.
Heavy-Duty DiaphragmFormulated with hydrocarbon-resistant elastomers compatible with standard diesel and biodiesel fuel blends.
Long Actuator Arm (77 mm)Precisely profiled for accurate mechanical engagement against the camshaft eccentric lobe on JD-engine applications.

Compatibility

Brand / Tractor SeriesSpecific Compatible ModelsEquivalent OEM References
John Deere - 3000 Series3100320033003400RE61260400001
John Deere - 3010 Series3110321033103410
Renault - Ceres Series (JD Engine)Ceres 65Ceres 75Ceres 85Ceres 95Ceres 310Ceres 320Ceres 330Ceres 340RE612604000016005013076
Renault - Cergos Series (JD Engine)Cergos 330Cergos 340Cergos 350

Specifications

Product Code38012303
Mounting Configuration2-hole mounting flange
Hole Spacing (Center to Center)44 mm
Lever Length (Flange to tip)77 mm
Equivalent OEM ReferencesRE61260, 400001, 6005013076
