Fuel Lift Pump Gasket for John Deere Tractors Series 20 30 40 50 Ref R520618 R97350 R27285 - 38012401

star star star star star_border
Aftermarket
38012401

Diaphragm fuel lift pump seal gasket code 38012401 for John Deere agricultural tractors and engines Series 10, 20, 30, 40, 50, 900, 1000, and PowerTech. Direct replacement compatible with OEM part numbers R520618, R97350, and R27285. Ensures a tight and leak-free seal on the fuel supply system.

Hurry! only 36 items left in stock.
€1.20
Tax included
COUPON
- € 0,02
Final price: € 1,18
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Fuel Lift Pump Gasket - Part Number: 38012401

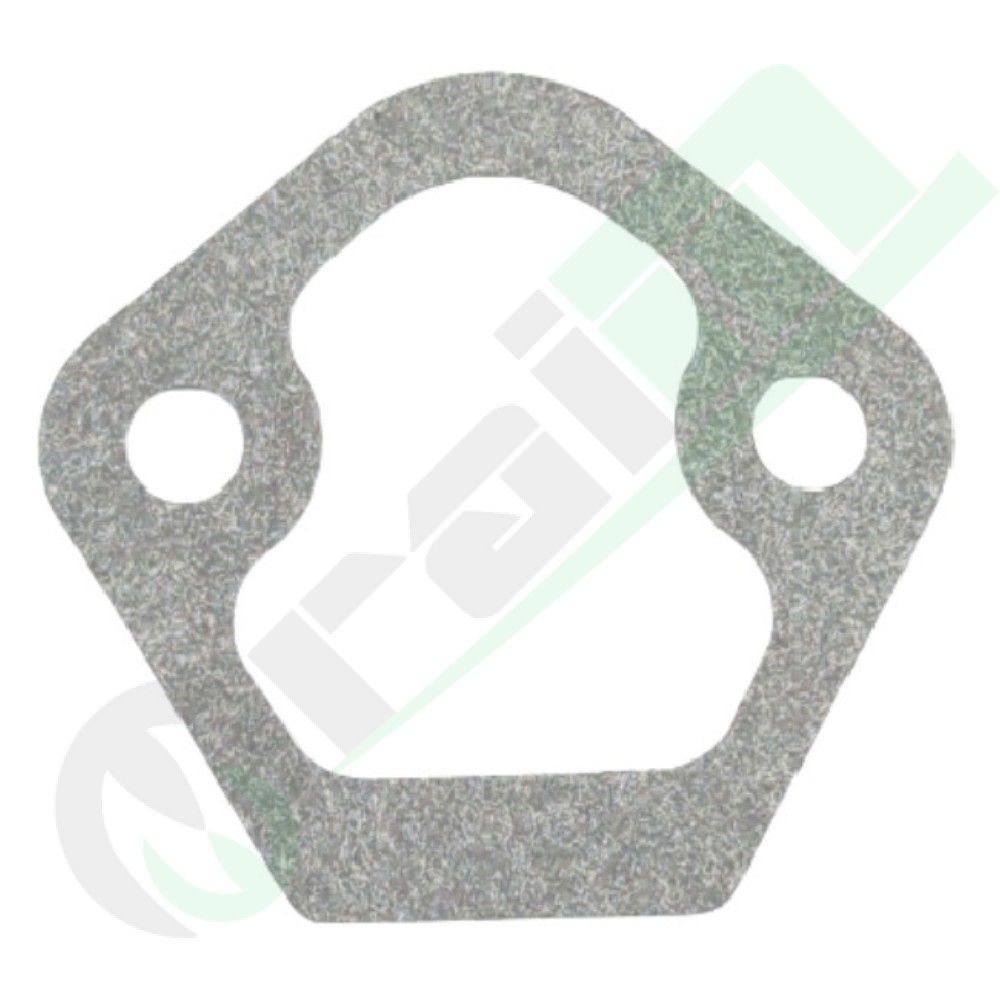

The Fuel Lift Pump Gasket (part number 38012401, original John Deere cross-references R520618, R97350, R27285) is a precision-engineered 2-hole sealing component designed to provide an airtight, leak-free seal between the engine block and the mechanical fuel lift pump across an extensive lineup of John Deere tractors, combines, and PowerTech engines (300 / 400 / 600 series).
Key Features & Benefits
  • Leak-Free Hermetic Seal: Effectively stops oil seepage and fuel leaks around the fuel pump mounting flange.
  • High Thermal & Chemical Resistance: Manufactured from premium gasket materials engineered to resist engine heat, motor oils, diesel, and biodiesel fuels.
  • Exact OEM Fitment: Fabricated to exact John Deere dimensional standards for seamless alignment on 2-hole flanges with 45 mm hole spacing.
Technical Specifications
Product Code 38012401
Mounting Configuration 2-hole mounting flange
Hole Spacing (Center to Center) 45 mm
Equivalent OEM References R520618, R97350, R27285
Matching Pump Unit Fuel Lift Pump part number 38019431 (and OEM references RE527115, RE37482, AR77914, etc.)
Application Table & Compatible John Deere Models / Engines
Series / Category Compatible Models
John Deere Engines PowerTech, 3164, 3179, 4202, 4219, 4239, 6303, 6359
10 & 11 Series 1010, 2010, 2510, 4010, 5010; 1166, 1169, 1174, 1177
20 & 30 Series 820, 920, 1020, 1120, 1520, 2020, 2120, 3020, 3120, 4020, 4520, 4620, 5020; 830, 930, 1030, 1130, 1530, 1630, 1630VU, 1830, 2030, 2130, 3030, 3130, 4030, 4230, 6030
35 & 40 Series 1035, 1635, 2035, 2135, 3135; 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3140, 3340, 3640, 4040, 4040S, 4240
45F & 50 Series 1745F, 1845F, 2345F; 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3150, 3350, 3650, 4050
Combines (900 & 1000 Series) 925, 935, 945, 952, 955, 965, 968, 975; 1032, 1042, 1052, 1055, 1065, 1068H, 1072, 1075, 1085
2000, 5000, 5400, 7000 Series 2440, 2520; 5200, 5400; 5420; 7200, 7600
Technical Note: Ensure both mounting surfaces on the engine block and fuel pump are thoroughly cleaned prior to installation. Verify that the hole spacing (45 mm) aligns correctly with OEM references R520618, R97350, or R27285.
: 38012401
Hurry! only 36 items left in stock.

Specific References

MPN
38019431
