DAB Aquajet 82M-G Hydrophore System Cast Iron Body 3600 l/h 850W Part No 12349777

star star star star star_border
DAB Water Technology
12349777

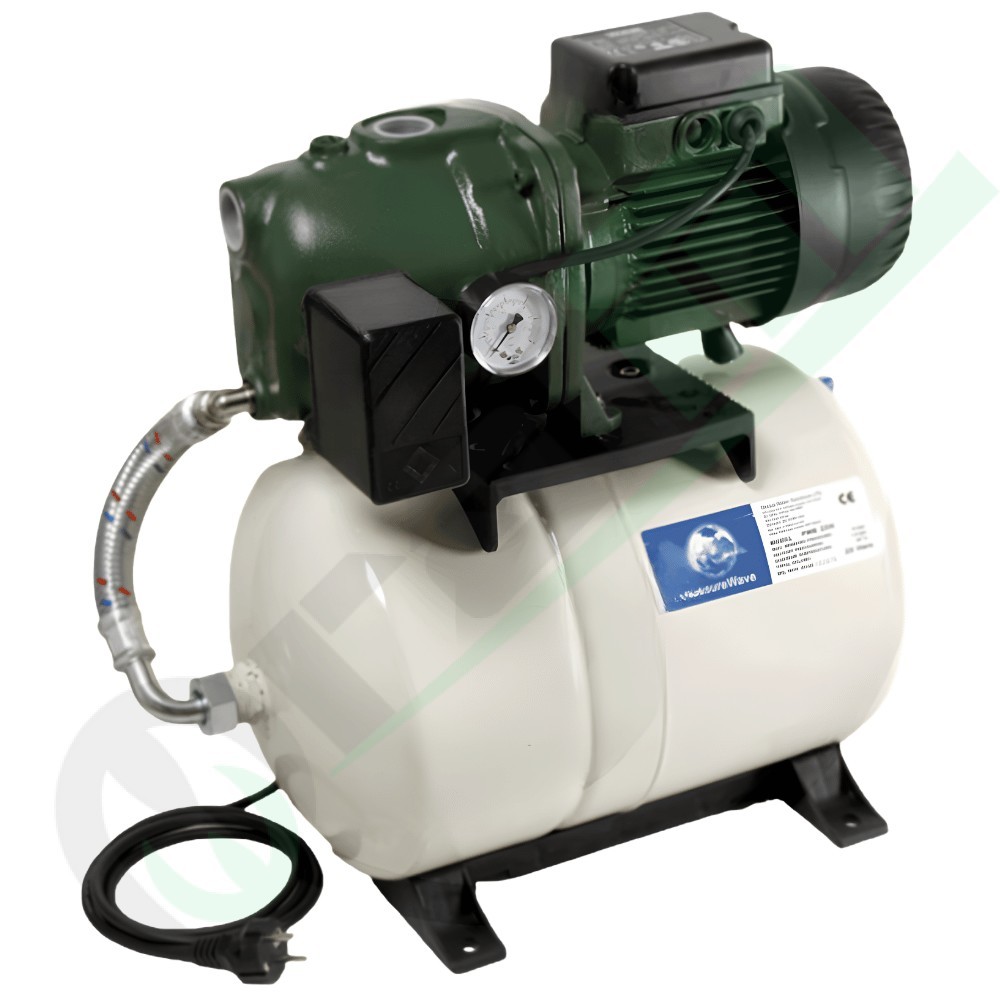

The DAB Aquajet 82M-G Hydrophore System (part number 12349777) is a self-priming domestic booster system featuring a cast iron pump body and a 20-liter membrane tank. Ideal for domestic use, small civil, agricultural, and industrial systems, it is equipped with an 850 W motor delivering a flow rate of 3600 l/h, a maximum head of 47 meters, an integrated pressure switch, and a pressure gauge.

Hurry! only 1 items left in stock.
€669.00
Tax included
COUPON
- € 13,38
Final price: € 655,62
Quantity

Bassa disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

DAB Aquajet 82M-G Water Pressure System with 20L Tank (12349777)

The DAB Aquajet 82M-G self-priming water pressure booster system (part number 12349777) is a highly reliable automatic water supply station engineered for domestic, agricultural, and light commercial applications. Featuring a heavy-duty cast iron pump body and a 20-liter pressure tank, it delivers a steady water output up to 3,600 L/h with a maximum pressure of 4.7 bar. Fully equipped with an integrated pressure switch and pressure gauge.
Key Features
  • Professional Cast Iron Pump Casing: Ultra-durable construction designed for long service life, featuring technopolymer impeller, diffuser, and Venturi tube for high hydraulic performance.
  • Protected 20-Liter Diaphragm Tank: Finished with a two-component polyurethane paint over an epoxy primer and an internal pure polypropylene lining for ultimate corrosion resistance.
  • High-Quality Sealing & Controls: Equipped with a stainless steel seal holder disc, carbon/ceramic mechanical seal, factory-preset pressure switch, and built-in pressure gauge.
  • Versatile Performance: Perfect for boosting domestic water supply, small garden irrigation systems, washing facilities, and hobby farming with suction capability up to 8 meters.
Technical Specifications
Product Code 12349777
Pump Model DAB Aquajet 82M-G
Power Supply / Engine Power 230V / 50 Hz - 850 W
Pressure Tank Capacity 20 Liters
Max Flow Rate 3,600 L/h (3.6 m³/h)
Max Pressure / Max Delivery Head 4.7 bar / 47 m
Max Suction Lift 8 m
Pump Body Material Cast Iron
Threaded Connection 1" G
Max Water Temperature 35 °C
Power Cable Length 1.8 m
Installation Mode Fixed, horizontal position
