DAB Aquajet 102M-G Hydrophore System Die-Cast Body 3600 l/h 750W Part No 26070332
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
DAB Water TechnologyRef.

DAB Aquajet 102M-G Hydrophore System Die-Cast Body 3600 l/h 750W Part No 26070332

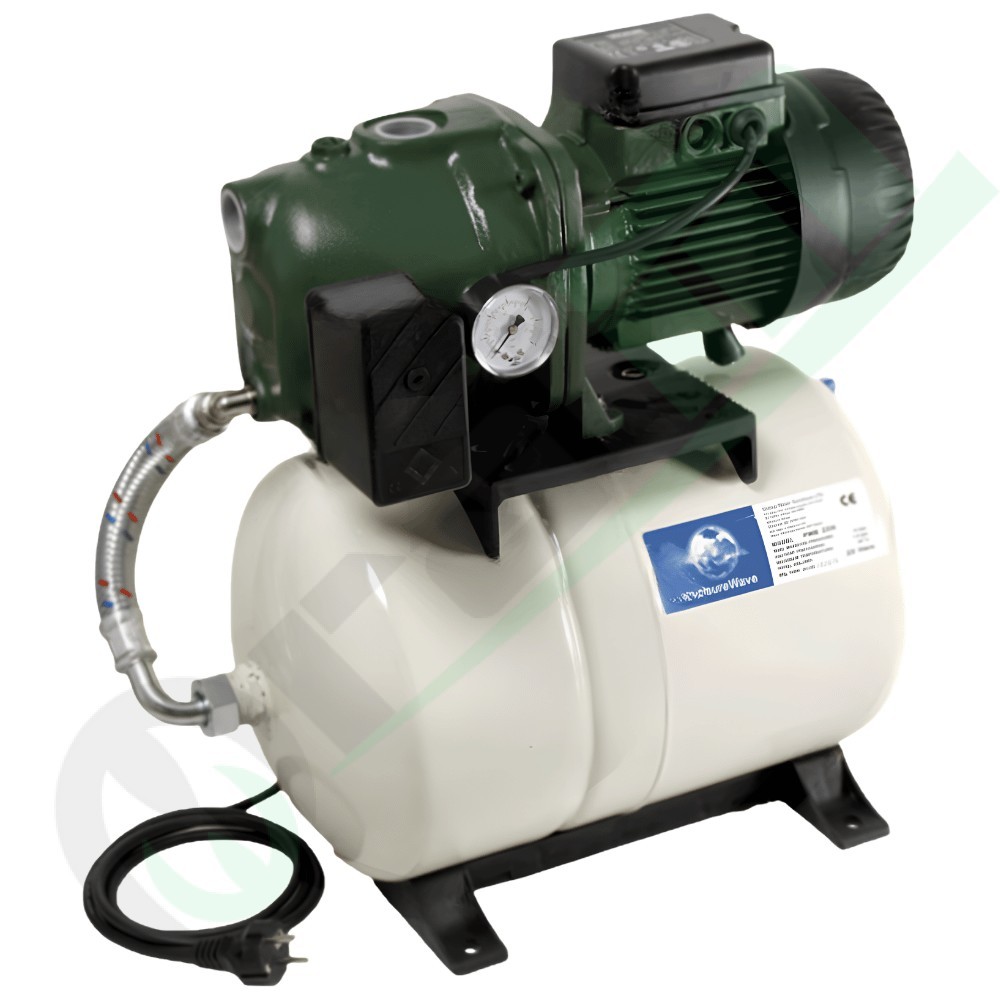

The DAB Aquajet 102M-G Hydrophore System (part number 26070332) is a self-priming domestic booster system featuring a die-cast pump body and a 20-liter membrane tank. Ideal for domestic use, small civil, agricultural, and industrial systems, it is equipped with an efficient 750 W motor delivering a flow rate of 3600 l/h, a maximum head of 54 meters, an integrated pressure switch, and a pressure gauge.

  • High-Pressure Delivery (5.4 Bar)
  • Die-Cast Pump Casing & Advanced Hydraulics
  • Coated 20-Liter Diaphragm Tank
€489.00VAT incl.
Coupon -€9.78 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €479.22

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The DAB Aquajet 102M-G Hydrophore System (part number 26070332) is a self-priming domestic booster system featuring a die-cast pump body and a 20-liter membrane tank. Ideal for domestic use, small civil, agricultural, and industrial systems, it is equipped with an efficient 750 W motor delivering a flow rate of 3600 l/h, a maximum head of 54 meters, an integrated pressure switch, and a pressure gauge.

Key features

High-Pressure Delivery (5.4 Bar)Delivers up to 54 meters total head driven by an energy-efficient 750 W motor, ideal for boosting domestic pressure and demanding irrigation tasks.
Die-Cast Pump Casing & Advanced HydraulicsRobust die-cast housing combined with technopolymer impeller, diffuser, and Venturi tube for high hydraulic output and durability.
Coated 20-Liter Diaphragm TankTank features a two-component polyurethane paint over an epoxy primer and an internal pure polypropylene lining to prevent corrosion.
Integrated Sealing & Control ComponentsEquipped with a carbon/ceramic mechanical seal, stainless steel seal plate, pressure switch for automatic start/stop, and pressure gauge.

Specifications

Product Code26070332
Pump ModelDAB Aquajet 102M-G
Power Supply / Engine Power230V / 50 Hz - 750 W
Pressure Tank Capacity20 Liters
Max Flow Rate3,600 L/h (3.6 m³/h)
Max Pressure / Max Delivery Head5.4 bar / 54 m
Max Suction Lift8 m
Pump Body MaterialDie-cast
Threaded Connection1" G
Noise Level87 dB
Max Water Temperature35 °C
Power Cable Length1.8 m
Installation ModeFixed, horizontal position
