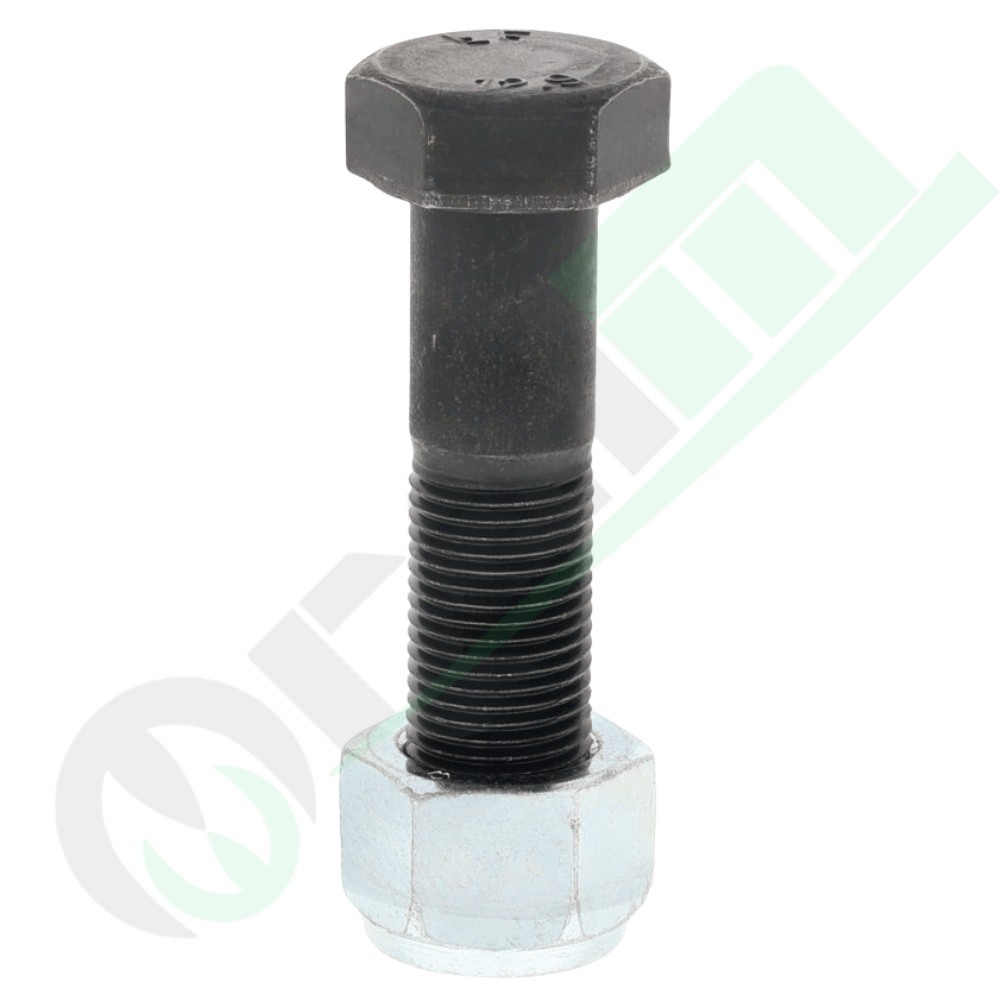

Bolt with Nut M16x1.5 L 47 mm Grade 12.9 for Agricultural Machinery - 18030-1647

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Bolt with Nut M16x1.5 L 47 mm Grade 12.9 for Agricultural Machinery - 18030-1647

Bolt and nut assembly part number 18030-1647 engineered for secure blade and component fastening on agricultural machinery. Manufactured from high-tensile grade 12.9 steel with fine pitch M16 x 1.5, total length L 47 mm, and thread length G 25 mm to deliver superior resistance against heavy vibration and shear stress.

Maximum Property Class 12.9
Metric Fine Thread Pitch (M16 × 1.5)
Precision 22 mm Unthreaded Solid Shank

€2.95VAT incl.

Coupon -€0.06 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €2.89

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Key features

Maximum Property Class 12.9Forged from high-grade alloy steel and through-hardened to achieve a nominal tensile strength of 1200 N/mm² and yield point of 1080 N/mm², preventing bolt stretching, plastic deformation, or brittle fatigue under stone impact.

Metric Fine Thread Pitch (M16 × 1.5)The fine 1.5 mm pitch provides superior self-locking performance against persistent rotation vibration compared to standard coarse threads, ensuring consistent preload retention.

Precision 22 mm Unthreaded Solid ShankEnsures the shear boundary between the tine shank and rotor flange rests on the solid unthreaded body, preventing localized thread shearing and mounting hole elongation.

Supplied Complete with Matched NutPaired with an extra high-strength matching nut suited for 12.9 torque specifications, optimized for compact flange clamping setups.

Specifications

Product Code	18030-1647
Component Type	Partially threaded hex head bolt with matched nut set
Property Class / Grade	12.9 (Quenched and tempered alloy steel)
Thread Size and Pitch	M16 × 1.5 (Metric fine pitch)
Total Underhead Length (L)	47 mm
Threaded Length (G)	25 mm
Unthreaded Shank Length	22 mm
Rotor Series Compatibility	Rotor series 140, 160 (and heavy-duty tillers with Ø 16.5 - 17 mm holes)
