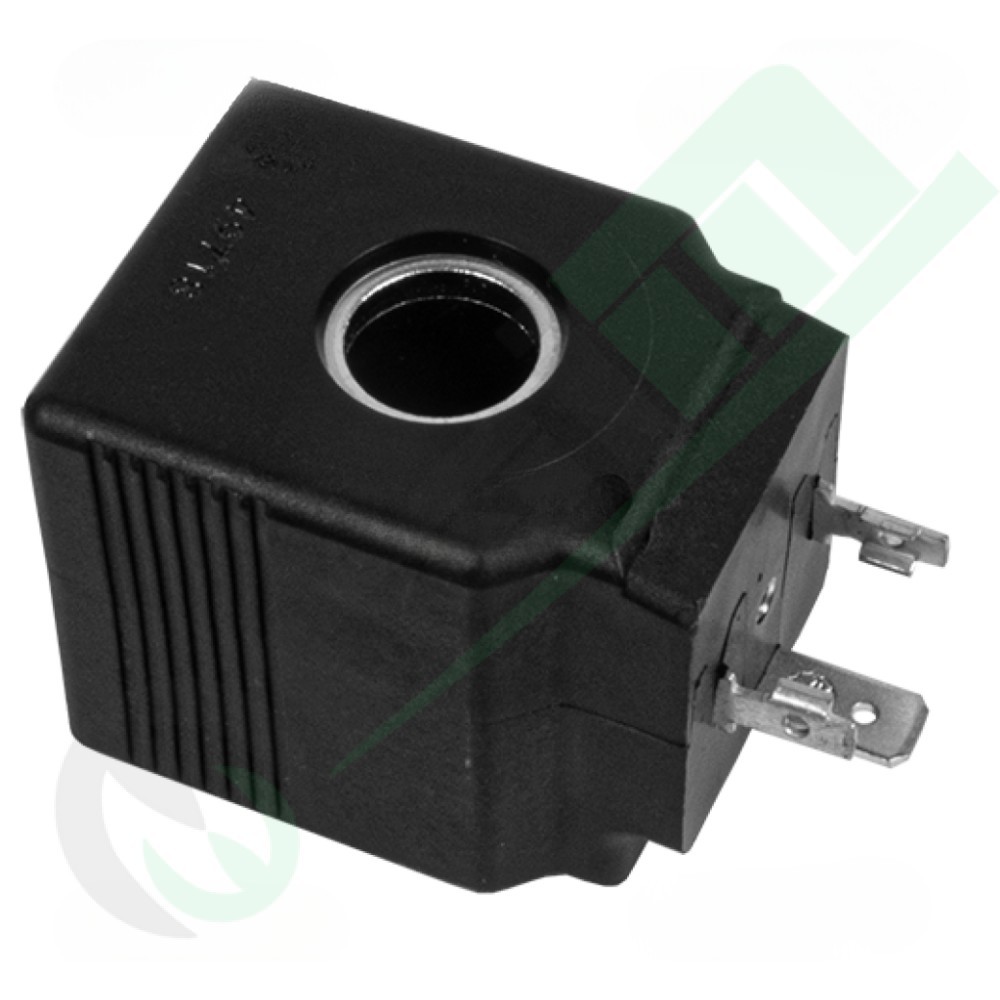

Replacement 27W Solenoid Coil for Solenoid Valve 27232 - Code 27620

The professional-grade high-output 27W replacement electrical solenoid coil (Product Code: 27620) is a heavy-duty inductive assembly engineered specifically as an original service part for the repair and maintenance of the line control solenoid valve matching part number 27232. Developed to generate an increased magnetic pull force, this 27-Watt coil secures instantaneous actuation of the valve's internal plunger armature, allowing for smooth, fluid-tight switching cycles under high-pressure agricultural spraying and weeding manifold setups.

Design Details and Electro-Mechanical Durability

This internal inductive solenoid winding is manufactured from high-purity electrolytic copper wire, fully encapsulated through a high-density injection-molded thermosetting epoxy resin matrix. The robust 27-Watt energy configuration yields superior electromagnetic torque, essential for overcoming intense internal fluid backpressure inside heavy-duty spraying arrays. This protective resin encapsulation achieves an IP65 environmental protection classification, completely sealing the delicate internal wiring against moisture intrusion, field dust, corrosive fertilizers, and aggressive chemical spray drift. Optimized thermodynamic properties ensure excellent dissipation of heat generated during prolonged continuous duty-cycle loops, preventing burnout failures and locking in uniform electrical response bounds from the vehicle central rate computer.

Technical Specifications

Workshop Installation and Field Maintenance Guidelines

• Electrical Safety Sequence: Prior to starting the replacement procedure, completely isolate the main power supply from the master control console panel and ensure that the hydraulic circuit contains no residual line pressure.
• Mechanical Coil Swapping: Remove the top retaining locknut on the 27232 valve body, slide the faulty coil assembly up and off, and seat the new 27W high-output solenoide over the core tube, making sure the sealing ring sits flush to block moisture tracking.
• Terminal Alignment Inspection: Clean the contact pins inside the wire plug to eliminate any trace of oxide or chemical scale before locking the harness back into place, avoiding localized electrical resistance spikes or voltage drops.
