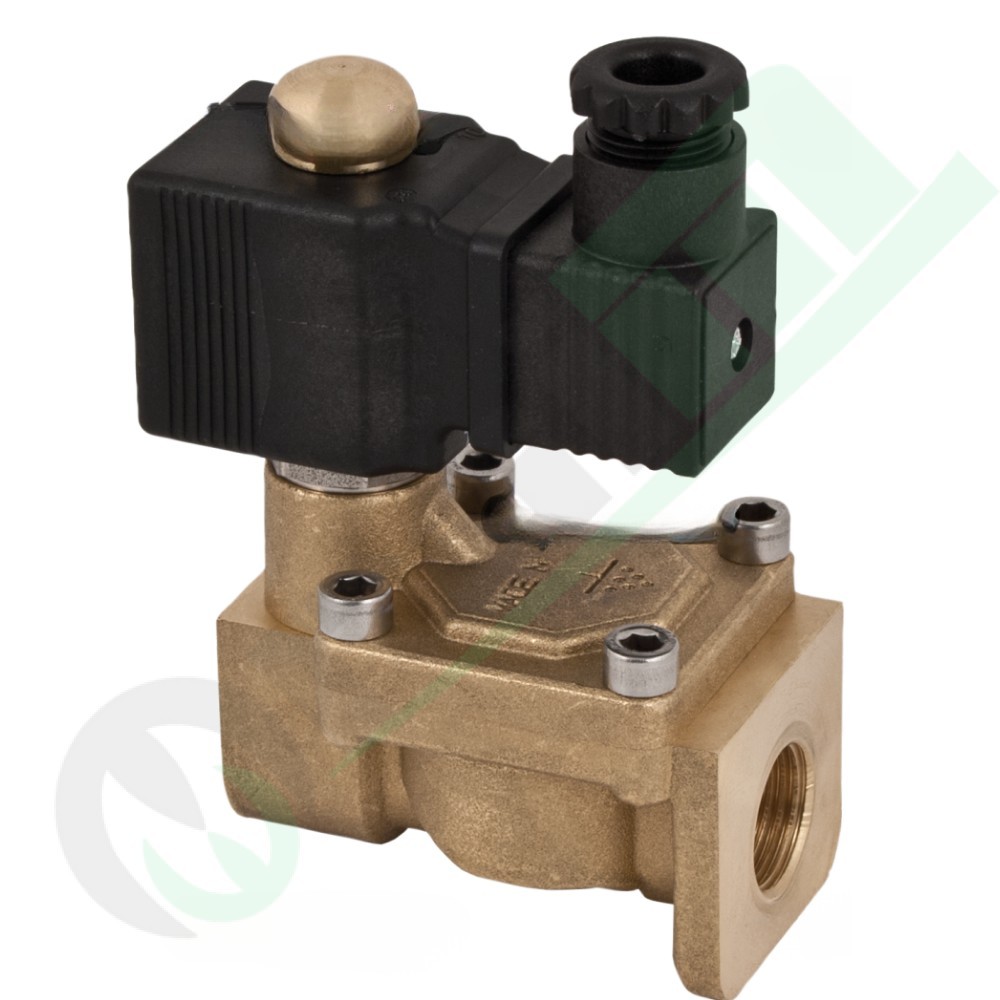

High-Pressure Two-Way Pilot-Operated 12V Solenoid Valve 1/2" - Code 27232

The professional-grade 1/2" 2-way pilot-operated high-pressure solenoid valve (Product Code: 27232) is a heavy-duty fluid-dynamic component engineered for the demanding command and section management of liquid lines on orchard mist-blowers and high-pressure industrial spraying systems. Driven by a low-voltage 12V DC network through a robust 27W electromagnet, this valve delivers instantaneous actuation thresholds and absolute leak-proof sealing under extreme line pressure loads.

Design Details and High-Pressure Hardening

This technical solenoid valve is configured with a "Normally Closed" (NC) circuit logic, restricting fluid flow when de-energized to serve as an integrated safety barrier. The internal mechanical architecture is specifically hardened to operate within a critical high-pressure window of 3 to 40 bar, maintaining an elevated nominal fluid delivery rating of 70 liters per minute. The main body structure is fully hot-forged from high-grade industrial stamped brass, a premium metallurgy selection built to survive severe hydraulic shock loads and fluid water-hammer spikes. The inner fluid distribution network incorporates static sealing elements made of premium Stainless Steel (INOX) to eliminate galvanic oxidation caused by harsh agrochemicals, combined with moving plunger internals and core diaphragms manufactured from genuine Viton (FKM). Viton yields unmatched structural flexibility and chemical resistance when handling aggressive chemical compounds, solvents, and oil matrices, locking in long-term dimensional retention. The high-capacity 27-Watt electromagnet supplies the intense magnetic pull necessary to overcome the reverse fluid backpressure generated under maximum 40 bar field operational cycles.

Technical Specifications

Installation Guidelines and Fleet Rig Safety Advice

• Minimum Pressure Operational Threshold: Because this is a pilot-operated high-pressure assembly, the system manifold must maintain a minimum fluid backpressure of 3 bar to allow the internal diaphragm to lift and execute a full open stroke. Do not deploy this unit in gravity-fed lines or low-pressure networks dropping below the stated metric.
• Harness and 27W Coil Wiring: Align the valve body according to the directional arrow stamped on the brass chassis. Connect the 27W high-capacity electromagnet using a matching wire gauge configuration and mount a dedicated terminal fuse inline at the tractor control console panel to handle continuous amp loads securely.
• Viton Care and Line Flushing: Although the moving Viton internals are optimized for compound chemical exposure, it is highly recommended to run a clear-water flushing loop at the close of every field treatment block. This prevents sediment accumulation or scale binding on the plunger faces inside the Stainless Steel internal guide housing.
