Brass Pipe Clamp Bracket for 1/2" Stainless Steel Booms Part 26233 - Fits OEM 004215

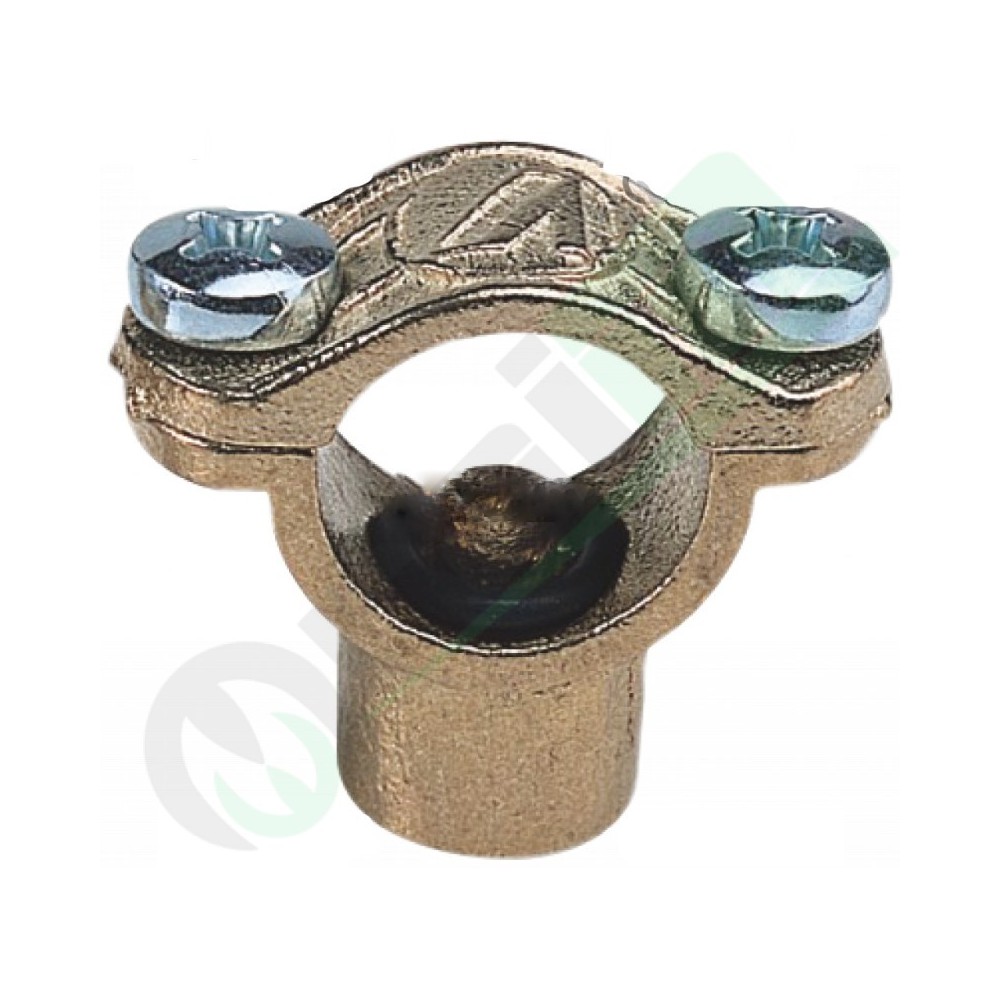

This premium brass pipe clamp bracket (interchangeable with OEM part number 004215) is a heavy-duty saddle clamp designed for mounting and feeding nozzle holders onto 1/2" stainless steel spray boom lines (matching a 20 mm outer tube diameter). Manufactured from forged brass to withstand the intense working pressures of air-blast orchard sprayers, this clamp is supplied complete with a sealing rubber gasket. It features a 1/4" Female threaded outlet for jet integration and requires a 7 mm diameter (d) pre-drilled intake hole on the pipe.

Output Discharge Thread Gauge (f): 1/4" GAS (Interface profile layout: FEMALE)
Internal Intake Port Bore: 7 mm
Saddle Structural Material: Heavy-duty forged industrial brass alloy

€4.99VAT incl.

Coupon -€0.10 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €4.89

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

This premium brass pipe clamp bracket (interchangeable with OEM part number 004215) is a heavy-duty saddle clamp designed for mounting and feeding nozzle holders onto 1/2" stainless steel spray boom lines (matching a 20 mm outer tube diameter). Manufactured from forged brass to withstand the intense working pressures of air-blast orchard sprayers, this clamp is supplied complete with a sealing rubber gasket. It features a 1/4" Female threaded outlet for jet integration and requires a 7 mm diameter (d) pre-drilled intake hole on the pipe.

Specifications

Component Classification	Hose-clamp style fluid delivery saddle / split collar interface for spray booms

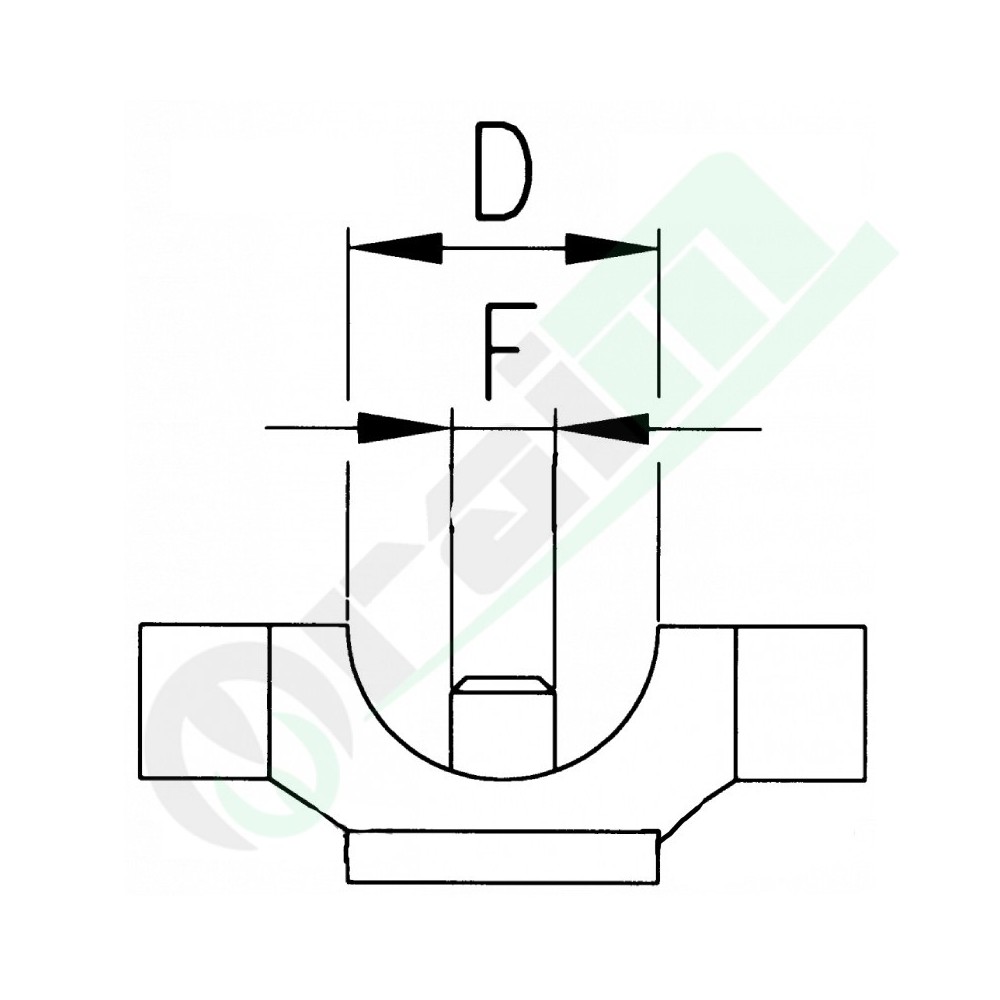

Target Tubing Outer Diameter (d)	Ø 20 mm (tailored for standard 1/2" Stainless Steel spray rails)
Output Discharge Thread Gauge (f)	1/4" GAS (Interface profile layout: FEMALE)
Internal Intake Port Bore	7 mm
Saddle Structural Material	Heavy-duty forged industrial brass alloy
Included Sealing Components	Chemical-resistant pre-shaped nitrile rubber sealing washer
OEM Cross Compliance	Adaptable to original equipment factory code: 004215
Product Reference Code	MORSETTO A FASCETTA IN OTTONE PER ASTE INOX 1/2"

Fitting tipsRail Drilling and Deburring: Drill a clean index hole on the 1/2" Stainless Steel tubing at the designated nozzle location. Thoroughly deburr the edge parameters to prevent raw metal shavings from scoring or tearing the sealing washer during assembly.
Mechanical Coupling and Torque: Seat the included rubber washer into the brass saddle nest, align the 7 mm delivery nipple with the drilled intake hole on the pipe, and close the clamp hardware. Tighten evenly to achieve uniform rubber compression without over-stressing the 1/4" female threads.
Leak Inspection and Winterization: During routine sprayer maintenance washing, check for structural weepage around the 20 mm collar base. The forged brass structure resists winter frost cracking, but it is highly recommended to purge all liquid loops before prolonged freezing storage blocks.
