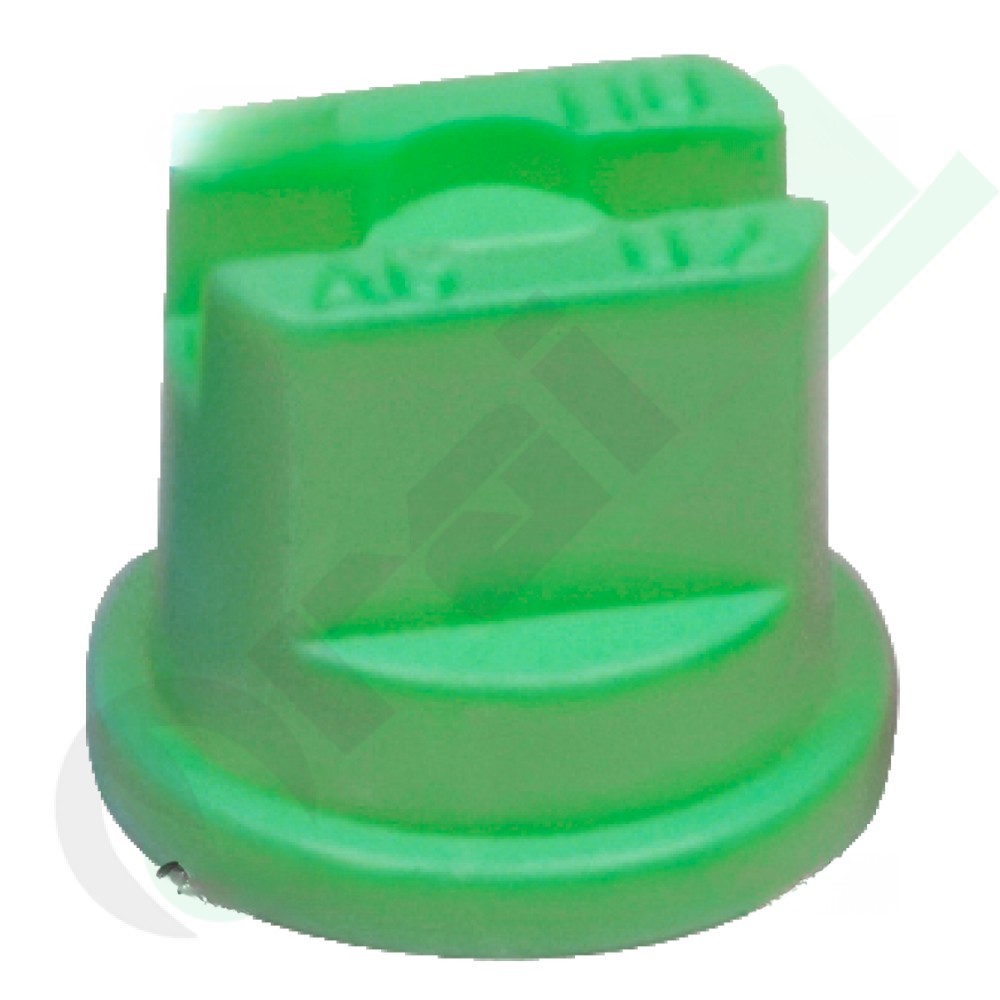

ISO Standard 110° Flat Fan Spray Tip SF 110-015 Green Kematal Part 26310
The ISO flat fan spray tip SF 110° - 015 (part 26310), replacing OEM 422SF110015, is molded in high chemical-stability acetal resin (Kematal). Featuring the standard ISO Green color coding and a 110° spray angle, it operates at 1.5 to 7 Bar with a 0.42 ÷ 0.92 l/min flow rate, ensuring uniform coverage for herbicide, fungicide, and insecticide applications.
Read more ↓- International Calibration Standard: ISO 015 - Green (Nominal calibrated orifice scale: Ø 0.6 mm)
- Spray Projection Open Angle: 110°
- Nominal Flow Output Range: 0.42 ÷ 0.92 L/min (Liters per minute discharge constant)
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €0.78
Description
The ISO flat fan spray tip SF 110° - 015 (part 26310), replacing OEM 422SF110015, is molded in high chemical-stability acetal resin (Kematal). Featuring the standard ISO Green color coding and a 110° spray angle, it operates at 1.5 to 7 Bar with a 0.42 ÷ 0.92 l/min flow rate, ensuring uniform coverage for herbicide, fungicide, and insecticide applications.
Specifications
| Component Classification | Standard flat fan crop spraying and weeding nozzle tip (SF Series) |
|---|---|
| International Calibration Standard | ISO 015 - Green (Nominal calibrated orifice scale: Ø 0.6 mm) |
| Spray Projection Open Angle | 110° |
| Nominal Flow Output Range | 0.42 ÷ 0.92 L/min (Liters per minute discharge constant) |
| Minimum Working Pressure Limit | 1.5 bar |
| Maximum Working Pressure Limit | 7 bar |
| Structural Engineering Metallurgy | High-grade industrial molded acetal copolymer resin (Kematal) |
| OEM Cross Compliance | Adaptable to original equipment factory code: 422SF110015 |
| Product Reference Code | 26310 |
