ISO Flat Fan Nozzle SF 110° 10 Light Blue Kematal 25219 | Raim Store

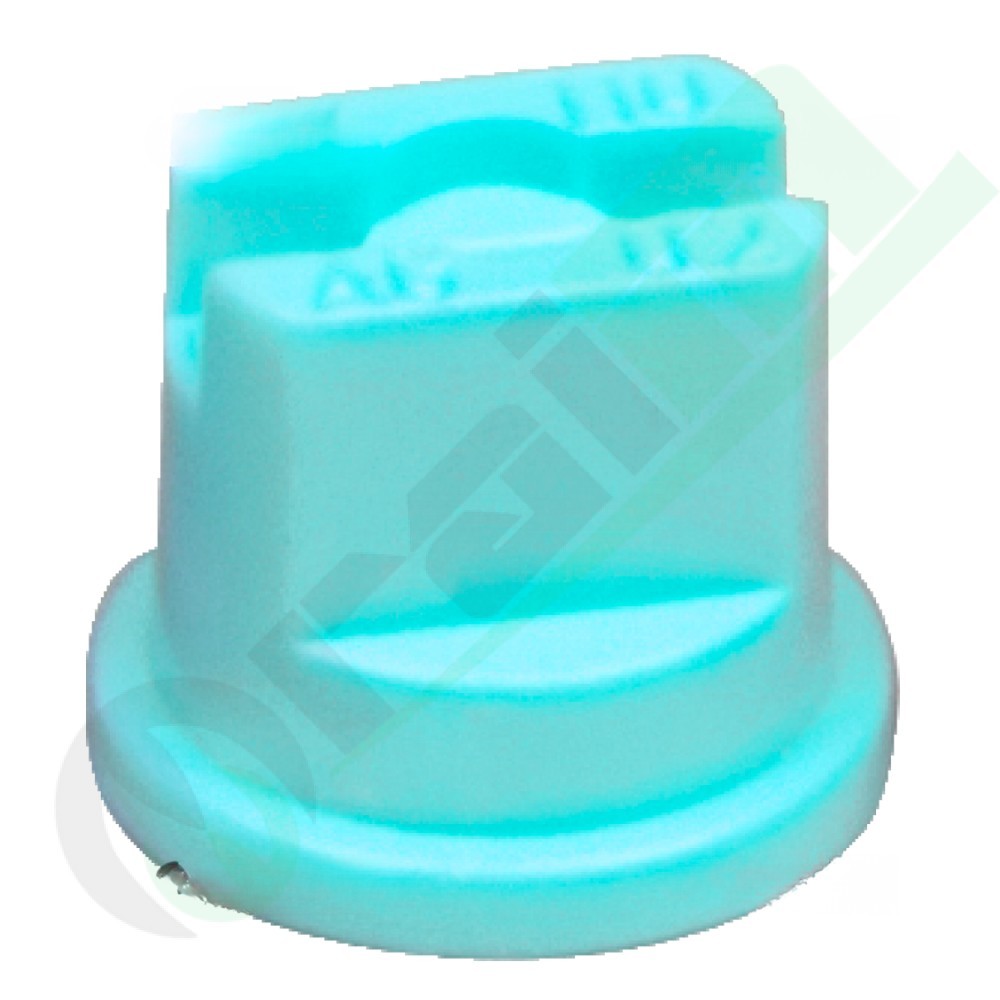

ISO Standard 110° Flat Fan Spray Tip SF 110-10 Light Blue Kematal Part 25219

star star star star star_border
Arag
25219

The ISO flat fan spray tip SF 110° - 10 (part 25219) is molded in high chemical-stability acetal resin (Kematal) for extended durability. Featuring the standard ISO Light Blue color coding and a 110° spray angle, it operates at 1.5 to 7 Bar with a 2.83 ÷ 6.11 l/min flow rate, ensuring uniform coverage for herbicide, fungicide, and insecticide applications.

Hurry! only 100 items left in stock.
€0.80
Tax included
COUPON
- € 0,02
Final price: € 0,78
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Standard ISO Flat Fan Spray Nozzle SF Series 110° - 10 (Azure) - Code 25219

The professional-grade standard ISO flat fan spray nozzle SF series 110° - 10 (Product Code: 25219) is a high-precision fluid-dynamic component engineered for high-volume spraying operations and intensive agricultural treatments. Molded from premium acetal resin (Kematal) and coded to international standard ISO 10 - Azure / Blue (equivalent to a 2.0 mm calibrated orifice), this nozzle is designed for large-scale field applications and tasks requiring higher output volumes. When correctly spaced along the distribution rail, these nozzles yield a highly uniform spray pattern, ensuring maximum efficiency and consistent coverage across the entire working width.
Design Details and Materials Engineering (Kematal)
This technical spray nozzle is fully manufactured from high-grade industrial "Kematal" acetal resin, an advanced technical polymer renowned for its exceptional chemical stability and dimensional retention. The 2.0 mm orifice provides outstanding structural resistance against mechanical abrasion from fluid delivery, maintaining precise flow rate accuracy even after extended operational hours. The acetal matrix ensures total inertness against common agrochemicals (herbicides, fungicides, and insecticides), offering a far superior durability compared to standard brass nozzle tips. The 110° fan layout is optimized for balanced, overlapping patterns with adjacent boom nozzles, securing consistent volume distribution across the entire swath without localized missing spots.
Technical Specifications and Boundary Limits
Component Classification Standard flat fan crop spraying and weeding nozzle tip (SF Series)
International Calibration Standard ISO 10 - Azure (Nominal calibrated orifice scale: Ø 2.0 mm)
Spray Projection Open Angle 110°
Nominal Flow Output Range 2.83 ÷ 6.11 L/min (Liters per minute discharge constant)
Minimum Working Pressure Limit 1.5 bar
Maximum Working Pressure Limit 7 bar
Structural Engineering Metallurgy High-grade industrial molded acetal copolymer resin (Kematal)
Product Reference Code 25219
Calibration Notes and Practical Field Guidelines
  • Manifold Pressure Verification: Standard application volumes are calculated by cross-referencing tractor velocity (km/h) with real-time pressure. Always monitor working pressure via an inline gauge upstream of the nozzle body to account for manifold line friction losses.
  • Boom Pitch and Spacing Parameters: To leverage the full 110° fan width, ensure precise nozzle spacing (typically 50 cm layout) and height adjustment to secure perfect pattern overlapping across the entire boom length.
  • Orifice Maintenance: Despite Kematal's durability, insoluble residues may clog the 2.0 mm section. Clean clogged orifices exclusively via compressed air or soft nylon brushes. Never use metal wires or needles, as these will permanently scratch the orifice geometry and distort the spray pattern.
: 25219
Hurry! only 100 items left in stock.

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
