Wide-Spectrum WRC 110° 02 Yellow Ceramic Nozzle 27511 | Raim Store

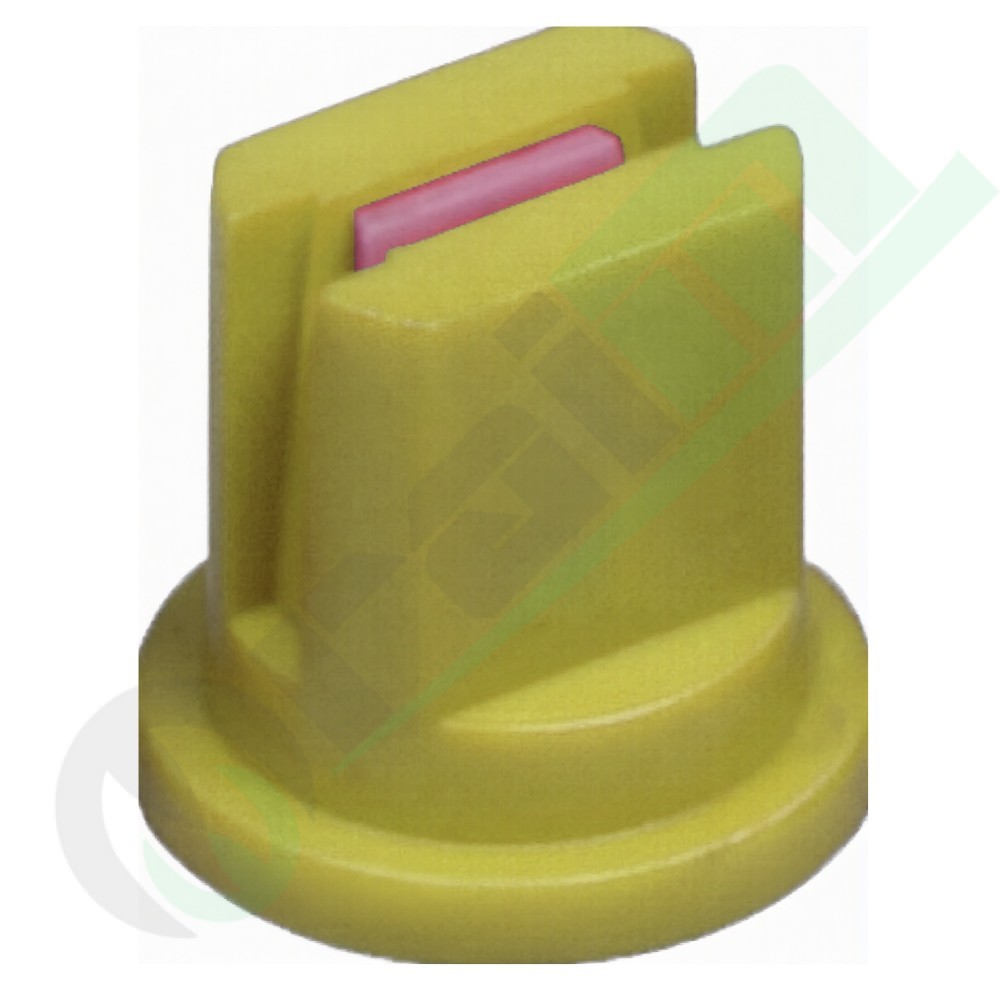

Wide-Spectrum Flat Fan Nozzle WRC 110° - 02 Ceramic Yellow Part 27511

star star star star star_border
Arag
27511

The wide-spectrum flat fan nozzle (WRC) 110° - 02 (part 27511) provides consistent coverage and maintains a constant 110° spray angle from just 1 bar. Featuring a durable Delrin body with a ceramic insert, it offers superior wear resistance and reduced drift at low pressures. Rated for 1-7 Bar and 0.46 ÷ 1.22 l/min, it is perfect for all herbicide, fungicide, and insecticide applications.

Hurry! only 80 items left in stock.
€3.70
Tax included
COUPON
- € 0,07
Final price: € 3,63
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Wide Spectrum WRC Flat Fan Spray Nozzle 110° - 02 (Yellow) - Code 27511

The wide spectrum WRC series 110° - 02 flat fan nozzle (Product Code: 27511) represents the pinnacle of professional crop protection distribution. Featuring the international ISO 02 - Yellow color code, this nozzle provides constant spray coverage and unparalleled distribution quality across a broad operating pressure range (1 to 7 bar). Engineered to reduce drift at low pressures (1 - 1.5 bar) and ensure excellent coverage at 1.5 - 2 bar, it is the ideal choice for growers seeking maximum flexibility with herbicides, fungicides, and insecticides.
Design Details and Ceramic Engineering
The technological core of the WRC model is the high-density ceramic insert, encapsulated within a rugged acetal resin (Delrin) body. This synergistic construction delivers extraordinary operational longevity, effectively countering both mechanical abrasion from suspended particles and aggressive chemical corrosion. Unlike standard nozzles, the WRC technology maintains a constant 110° spray angle starting from just 1 bar of pressure, ensuring the spray pattern never distorts or closes. This dynamic behavior allows for confident spraying even in moderate wind, keeping droplet sizing optimized for specific product application targets.
Technical Specifications and Boundary Limits
Component Classification Wide spectrum (WRC) flat fan spray nozzle
International Calibration Standard ISO 02 - Yellow
Spray Projection Open Angle 110° (Constant from 1 bar pressure)
Nominal Flow Output Range 0.46 ÷ 1.22 L/min (Liters per minute discharge constant)
Operational Pressure Range 1 ÷ 7 bar
Construction Materials Delrin (outer body) + Technical Ceramic (insert)
Product Reference Code 27511
Installation and Maintenance Guidelines
  • Drift Management: To minimize drift risks, set the operating pressure within the 1 - 1.5 bar range. The stable 110° fan geometry ensures maximum efficiency even at these lower settings.
  • Treatment Efficacy: For applications requiring deeper canopy penetration and high coverage, use an operating pressure between 1.5 and 2 bar; this is the optimal balance for the WRC series performance.
  • Ceramic Insert Care: Despite the ceramic's extreme hardness, do not use metal wires or needles for clearing obstructions, as this may chip the insert. Use only compressed air or soft nylon-bristle brushes for cleaning clogged orifices.
: 27511
Hurry! only 80 items left in stock.

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
