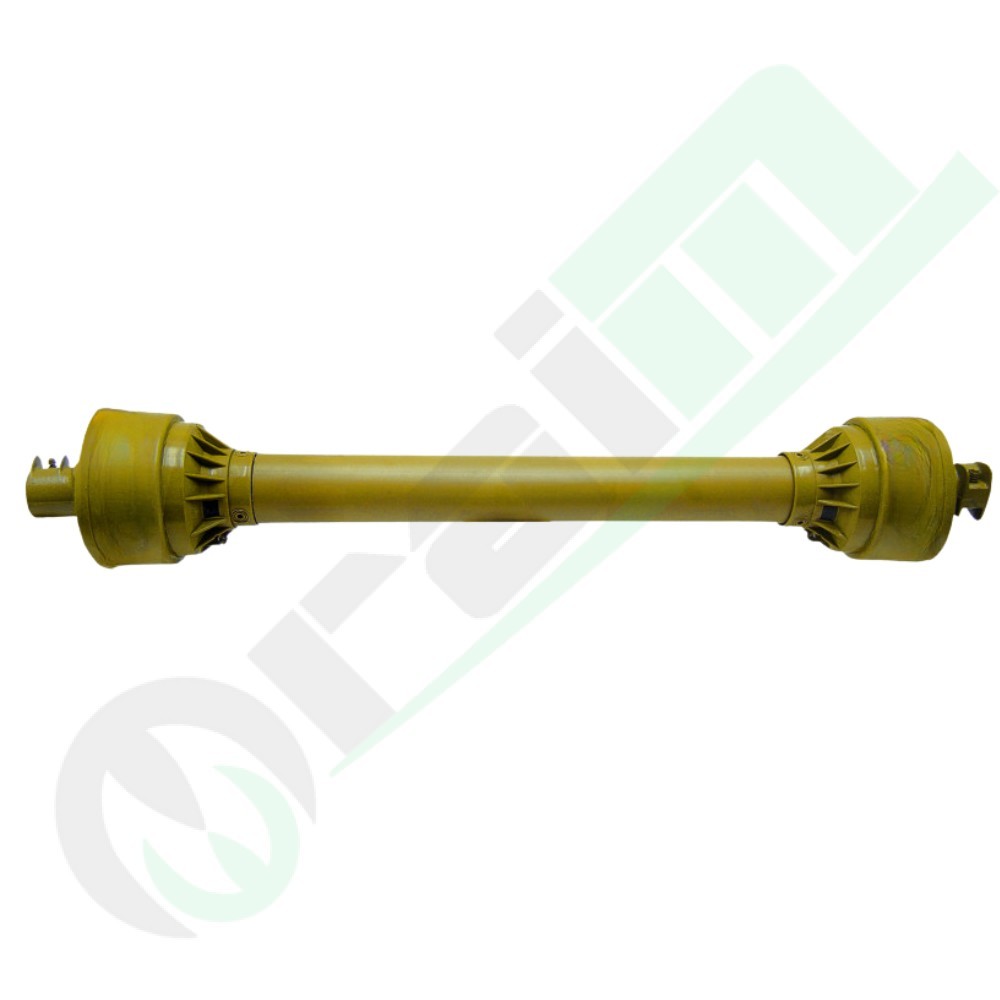

BLUELINE 377121023934 PTO Shaft Series F23 1210mm

377121023934 BLUELINE PTO Drive Shaft Series F23 Lz 1210mm for Tractors up to 35HP

Blueline
377121023934

BLUELINE F23 Series PTO Drive Shaft - L 1210mm (Code 377121023934)

Hurry! only 2 items left in stock.
€199.00
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE F23 Series drive shaft (1210 mm) is an extra-long, high-performance transmission component designed for heavy agricultural use. Featuring reinforced 27 x 74.6 mm universal joints and the reliable Lemon Profile, it provides 460 Nm of nominal torque for medium-to-high power implements. This model is ideal for large mist blowers, heavy-duty flail mowers, and soil preparation tools that require an extended connection reach from the tractor.

Technical Specifications

Part Number: 377121023934

Series: F23 (Standard Version)

Total Length (Lz): 1210 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 27 x 74.6 mm

Locking System: Push-button / Push-button (G3/G4 Coupling)

Tube Profile: Lemon Profile

Performance Data

Power at 540 rpm: Up to 35 HP (26 kW)

Power at 1000 rpm: Up to 53 HP (39 kW)

Nominal Torque (540 rpm): 460 Nm

Nominal Torque (1000 rpm): 370 Nm

Operating instructions are included. For 1.2-meter shafts, always verify correct telescopic tube overlap and secure the safety chains to fixed mounting points to prevent disconnection or excessive vibration during high-torque operation.
