Pair of Curved Stainless Steel 304 Spray Pipes for Ø 600 mm Fan 5-Port Part 27393

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Pair of Curved Stainless Steel 304 Spray Pipes for Ø 600 mm Fan 5-Port Part 27393

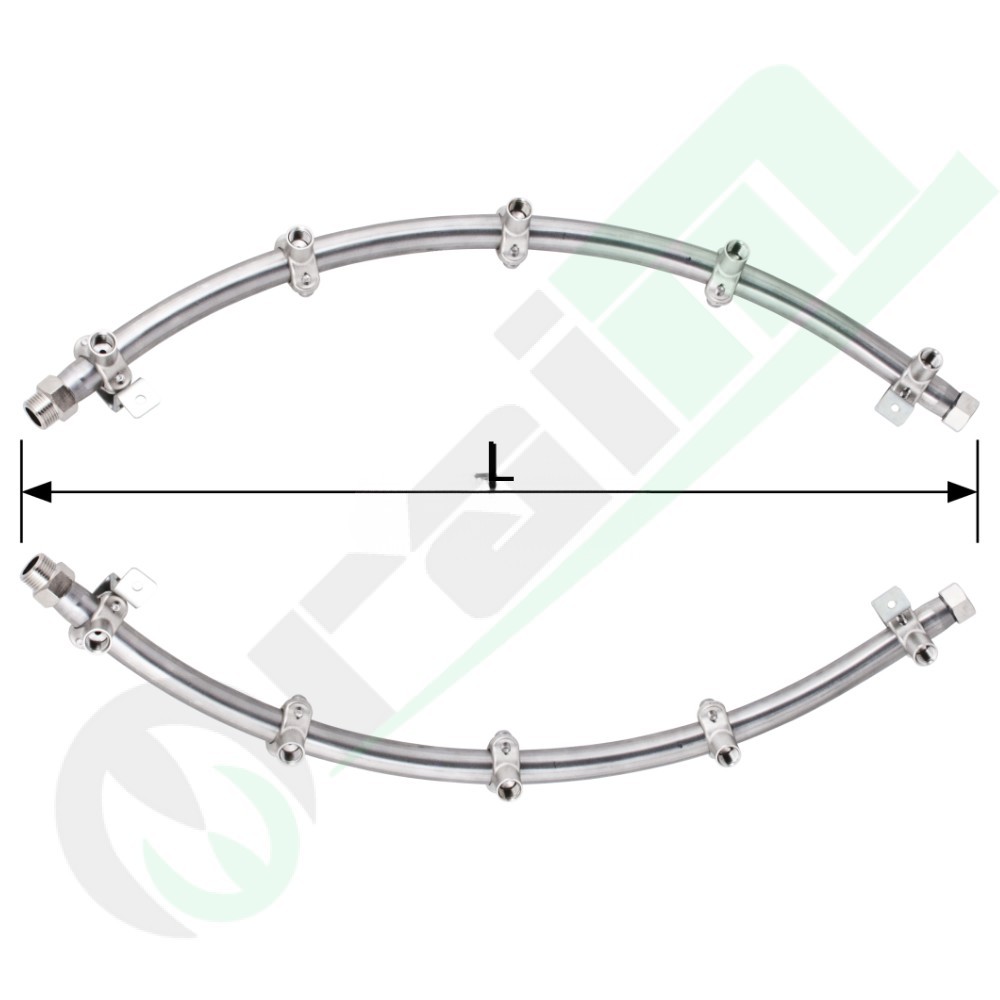

The pair of curved stainless steel 304 spray boom pipes (part number 27393) is a set of precision-bent fluid manifolds engineered for agricultural mist blowers and air-assisted sprayers equipped with a 600 mm diameter fan. Each arc-shaped pipe features a linear development length (L) of 560 mm with a 365 mm radius and is configured with 5 ports utilizing 1/4" Female threaded clamps for nozzle holder integration. The kit comes complete with a main 1/2" Male inlet connection and a matching end-plug. Premium AISI 304 stainless steel construction guarantees maximum resilience against high-pressure

Target Fan Shroud Diameter: Ø 600 mm (Standard round atomizer cowl layouts)

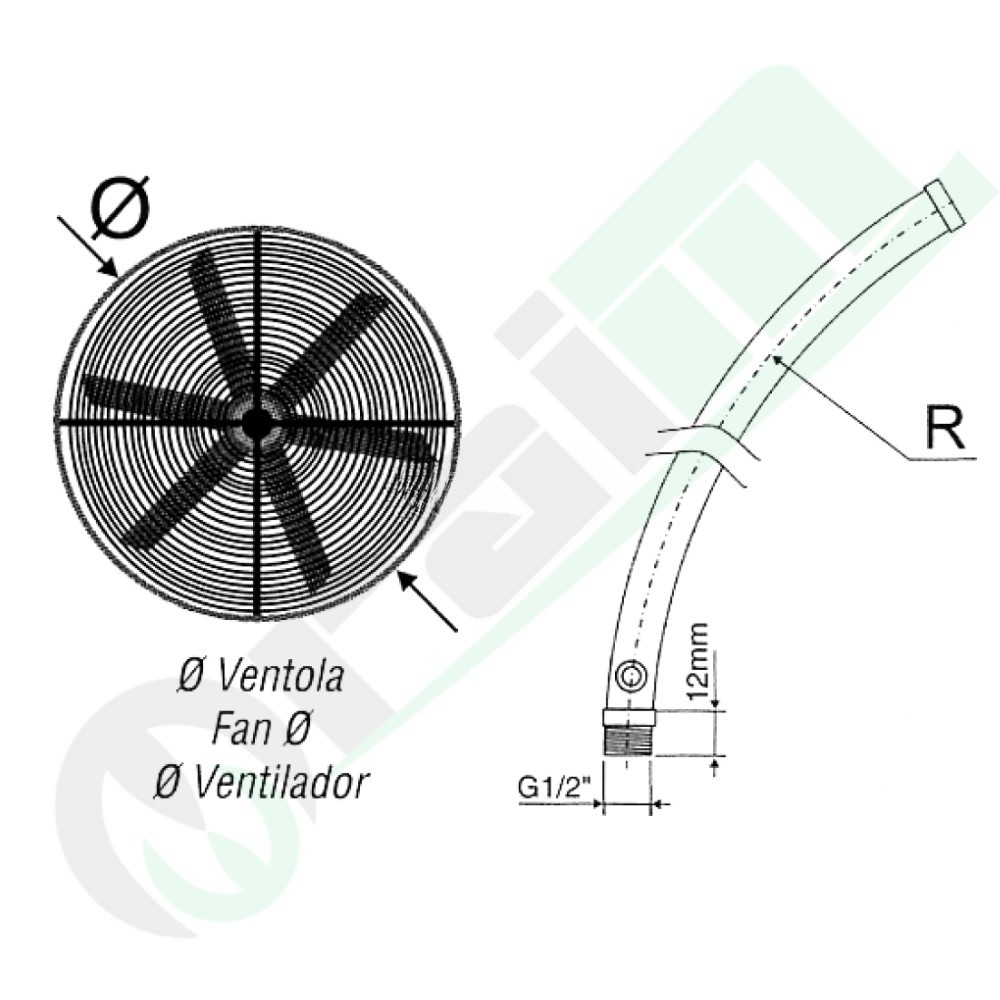

Convex Curve Radius Specification: 365 mm
Longitudinal Extension (L): 560 mm

€115.00VAT incl.

Coupon -€2.30 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €112.70

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The pair of curved stainless steel 304 spray boom pipes (part number 27393) is a set of precision-bent fluid manifolds engineered for agricultural mist blowers and air-assisted sprayers equipped with a 600 mm diameter fan. Each arc-shaped pipe features a linear development length (L) of 560 mm with a 365 mm radius and is configured with 5 ports utilizing 1/4" Female threaded clamps for nozzle holder integration. The kit comes complete with a main 1/2" Male inlet connection and a matching end-plug. Premium AISI 304 stainless steel construction guarantees maximum resilience against high-pressure spraying operations and harsh chemical corrosion.

Specifications

Component Classification	Pair of curved fluid manifold pipelines (left and right sides) for mist-blower atomizers
Target Fan Shroud Diameter	Ø 600 mm (Standard round atomizer cowl layouts)
Convex Curve Radius Specification	365 mm
Output Outlet Configuration	5 indexing holes / 5 clamp mounts per rail (10 jets total across pair assembly)
Longitudinal Extension (L)	560 mm
Thread & Port Technical Gauges	Nozzle outlets: 1/4" Female GAS thread \| Primary fluid inlet: 1/2" Male GAS thread
Rail Structural Metallurgy	AISI 304 Stainless Steel (high-yield structural strength and anti-corrosive bounds)
Standard Included Hardware Items	Terminal end-blanking plug and integrated threaded seats for clamp-on nozzle body coupling
Product Reference Code	27393

Fitting tipsConcentric Shroud Alignment: Position the two curved rails (left and right matching sides) onto the perimeter flange of the 600 mm air cowl. Fasten using the structural clamp collars, ensuring the 365 mm radius profile mounts perfectly concentric to the fan wheel, optimizing how the high-speed air stream shears through the nozzle spray cones.
Fluid-Tight Pipeline Connection: Bind the core fluid feed line directly to the 1/2" male inlet nipple. Thread the chosen nozzle holder units into the 1/4" female outlet ports, utilizing appropriate sealing gaskets or thread-locking compound to block pressure drops across the circuit loop.
Purging Protocol & Winterization: Leverage the inclusion of the terminal end-blanking plug to run systematic flushing cycles through the 304 Stainless Steel core line. Removing the plug after applying wettable powders or seasonal treatments allows insoluble sediments to clear out, preventing nozzle blockages and protecting the pipeline during winter storage blocks.
