Left Curved Blade 30x6 BCS Ferrari Pasquali 56956 | Raim Store

Left Curved Tiller Blade 30x6 mm for BCS Ferrari Pasquali Ref OEM 580 59276 - 56956

star star star star star_border
Aftermarket
56956

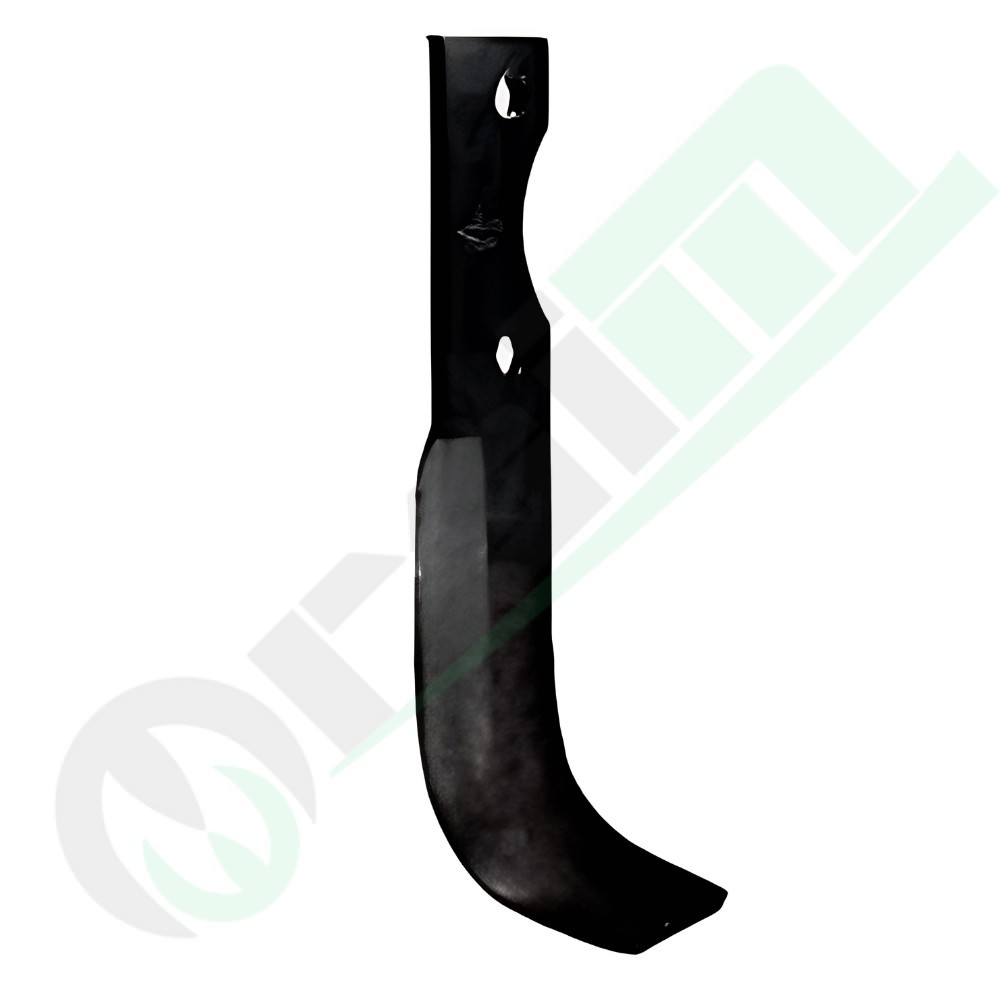

Left-hand curved rotary tiller blade part number 56956 (flat plate 30x6 mm, hole spacing 55 mm, hole diameter 8.5 mm, dimensions 55x193x18 mm) for two-wheel tractors. Forged from high-grade wear-resistant steel, engineered for BCS 732 Fresa 20 AR/EL, Ferrari 320, 330, 340, and Pasquali XB40-SB30 implements. Replaces OEM reference 580 59276.

Hurry! only 25 items left in stock.
€3.99
Tax included
COUPON
- € 0,08
Final price: € 3,91
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Tiller Blade for BCS / Ferrari / Pasquali - Part Number: 56956

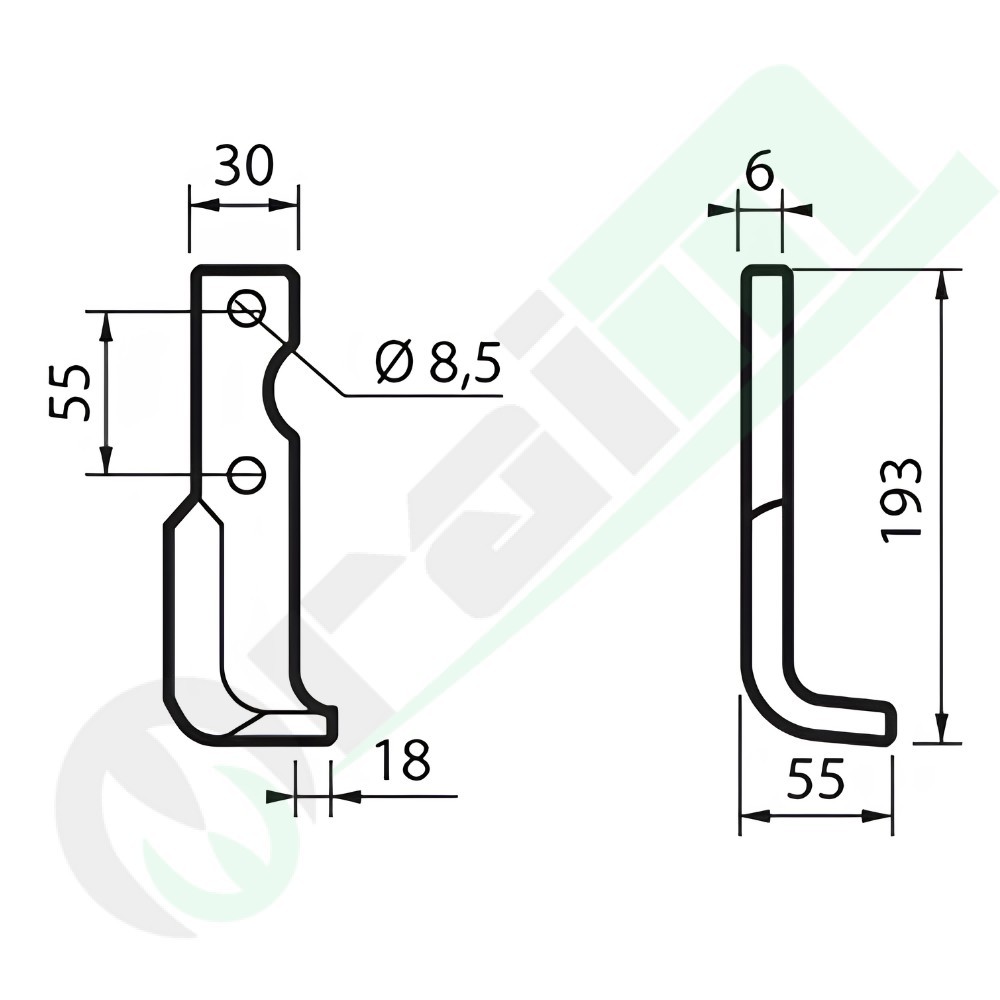

The Left Curved Rotary Tiller Blade (part number 56956, reinforced flat steel section 30 × 6 mm, mounting holes Ø 8.5 mm with 55 mm center-to-center distance, working dimensions X = 55 mm, Y = 193 mm, Z = 18 mm, adaptable OEM reference 580 59276) is a drop-forged, heat-treated alloy steel wear part engineered for abrasion resistance and bending toughness. Featuring a left-hand helical profile with an extended 193 mm vertical depth to operate in complete dynamic balance alongside its matching right-hand blade, it delivers smooth ground penetration, thorough clod pulverization, and precise fitment across rotary tillers and two-wheel tractors from BCS (model 732 Tiller 20 AR/EL), Ferrari (models 320, 330, 340 Helical Arc), and Pasquali (models XB40, SB30 Helical Arc).
Key Features & Benefits
  • Reinforced 30 × 6 mm Forged Alloy Steel: Hot-forged from boron spring alloy and through-hardened for superior core toughness and wear endurance. The wider 30 mm shank provides increased structural stiffness compared to standard 25 mm plates, preventing bending or cracking in heavy and rocky soils.
  • Extended Vertical Reach (Y = 193 mm, Z = 18 mm): The 193 mm working height and 18 mm lateral offset provide deep ground tillage and effective furrow inversion while minimizing engine drag and fuel consumption.
  • Precision 8.5 mm Mounting Holes (55 mm Spacing): Dual 8.5 mm bolt holes designed for M8 hardware match factory BCS, Ferrari, and Pasquali rotor flanges, ensuring a rigid, play-free seat.
  • Seedbed Finishing & Inter-Row Cultivation: Ideal for fine seedbed preparation, mechanical inter-row weeding, soil aeration, and thorough incorporation of crop residues and organic fertilizers.
Technical Specifications
Product Code 56956
Component Type Rotary tiller blade / Walk-behind tractor tine
Shape & Direction Helical Curved – Left Hand (LH)
Flat Stock Section (Width × Thickness) 30 × 6 mm
Length X (Horizontal Working Reach) 55 mm
Length Y (Vertical Height) 193 mm
Lateral Offset (Z Dimension) 18 mm
Mounting Hole Diameter Ø 8.5 mm (suited for M8 hardware)
Hole Center-to-Center Distance 55 mm
Adaptable OEM Part Number 580 59276 (58059276)
Matching Opposite Blade Part number 56955 (OEM 580 59275)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
BCS Rotary Tiller / Two-Wheel Tractor 732 Tiller 20 Helical Arc (AR/EL)
Ferrari Two-Wheel Tractor / Rotary Tiller 320, 330, 340 Helical Arc
Pasquali Two-Wheel Tractor / Rotary Tiller XB40, SB30 Helical Arc
Installation Technical Note: Assemble using grade 8.8 or 10.9 high-tensile M8 fasteners fitted with prevailing torque locknuts or locking spring washers. Ensure the rotor holder hole spacing matches 55 mm center-to-center and re-tighten hardware after the first operating hour.
: 56956
Hurry! only 25 items left in stock.

Specific References

MPN
56955
