Hydraulic Top Link Cylinder Cat. 2 for Fiat Crawler Tractors Part Number 50934

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Hydraulic Top Link Cylinder Cat. 2 for Fiat Crawler Tractors Part Number 50934

The heavy-duty hydraulic top link cylinder (code 50934) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Fiat Crawler (Cingoli) tractors. It features a minimum length of 500 mm, a stroke of 170 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 10.2 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 19.3 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve. This model perfectly fits Fiat crawler models from the 85 Series (Frutteto, Vigneto, Montagna, ranging from 55-85 to 88-85)

Fits

85 Series (Crawlers)75 Series (Crawlers)

See full table ↓

€335.00VAT incl.

Coupon -€6.70 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €328.30

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The heavy-duty hydraulic top link cylinder (code 50934) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Fiat Crawler (Cingoli) tractors. It features a minimum length of 500 mm, a stroke of 170 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 10.2 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 19.3 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve. This model perfectly fits Fiat crawler models from the 85 Series (Frutteto, Vigneto, Montagna, ranging from 55-85 to 88-85) and the 75 Series (60-75, 70-75, 80-75).

Compatibility

85 Series (Crawlers)	55-85 Frutteto55-85 Montagna55-85 Vigneto60-85 Frutteto60-85 Vigneto62-8562-85 Montagna72-8572-85 Montagna82-85 Montagna88-85 Montagna
75 Series (Crawlers)	60-7570-7580-75

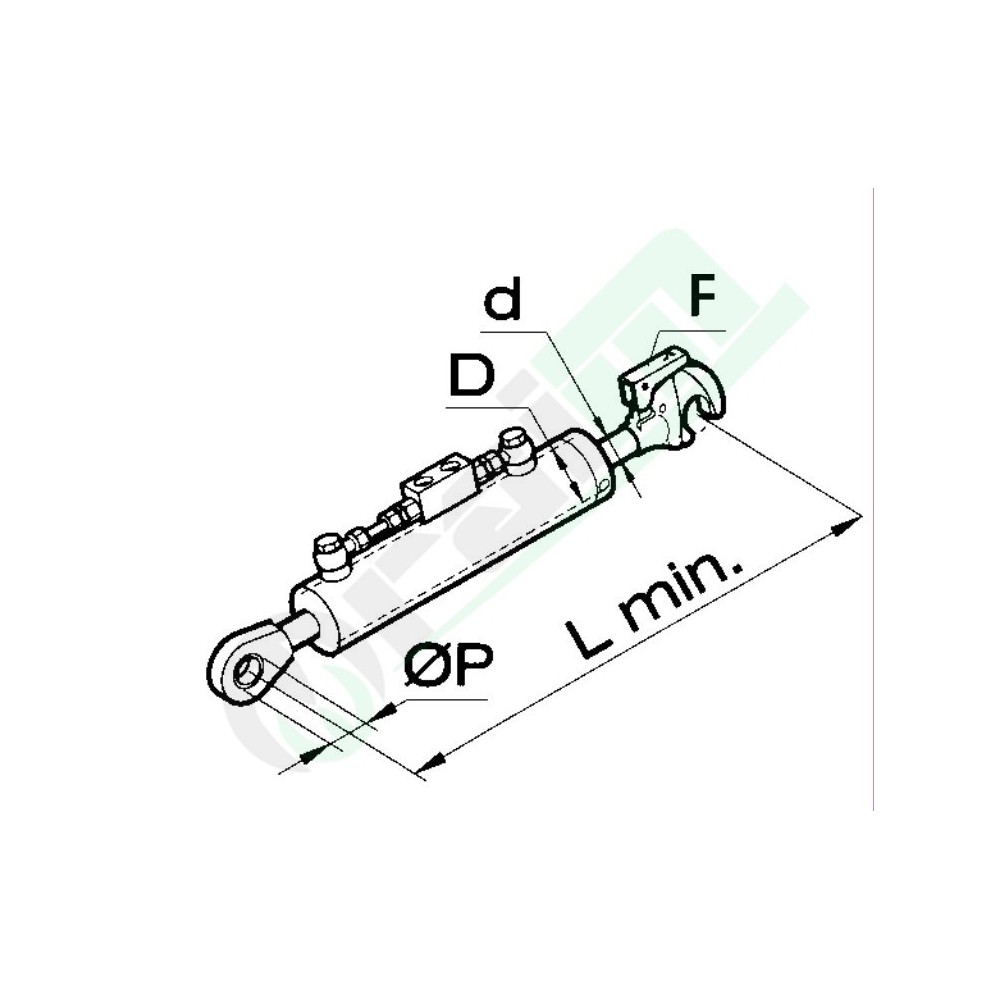

Specifications

Component Classification	Double-acting hydraulic top link actuator cylinder
Brand Compatibility	Fiat Crawlers / Fiatagri (Adaptable)
Minimum Length (Retracted)	500 mm
Cylinder Stroke	170 mm
Cylinder Bore Diameter (D)	70 mm
Piston Rod Diameter (d)	35 mm
Piston Rod End Fitting (F)	Automatic quick-release latch catch hook - Cat. 2 National
Cylinder Base End Fitting (P)	Spherical knuckle joint swiveling ball eye Ø 19.3 mm
Hydraulic Port Connection	3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve)
Net Component Weight	10.2 kg
Product Code	50934
