Hydraulic Top Link Cylinder Cat. 2 for Lamborghini Tractors Part Number 50879
The heavy-duty hydraulic top link cylinder (code 50879) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Lamborghini tractors (specifically models 760 DTR and 256 DT). It features a minimum length of 500 mm, a stroke of 170 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 11 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.
Read more ↓Fits
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €273.42
Description
The heavy-duty hydraulic top link cylinder (code 50879) is engineered for agricultural tractor 3-point hitches, specifically adaptable to Lamborghini tractors (specifically models 760 DTR and 256 DT). It features a minimum length of 500 mm, a stroke of 170 mm, a 70 mm bore (cylinder diameter), a 35 mm rod diameter, and a net weight of 11 kg. It comes equipped with a Cat. 2 National quick-release hook on the rod end, a Ø 25.4 mm ball joint on the cylinder base end, and a 3/8" dual pilot check valve.
Compatibility
| Manufacturer | Compatible Models |
| LAMBORGHINI | 760 DTR256 DT |
Model not listed? Message us on WhatsApp.

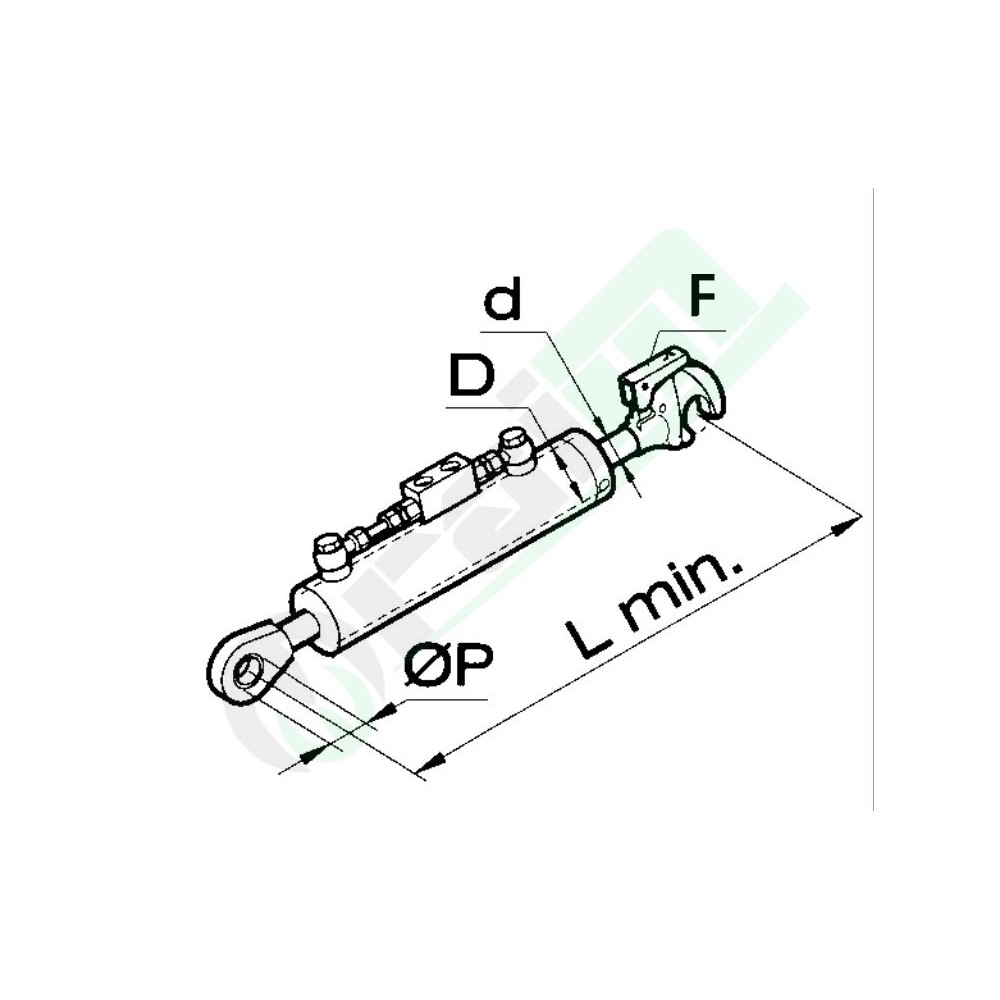

Specifications
| Component Classification | Double-acting hydraulic top link actuator cylinder |
|---|---|
| Brand Compatibility | Lamborghini (Adaptable) |
| Minimum Length (Retracted) | 500 mm |
| Cylinder Stroke | 170 mm |
| Cylinder Bore Diameter (D) | 70 mm |
| Piston Rod Diameter (d) | 35 mm |
| Piston Rod End Fitting (F) | Automatic quick-release latch catch hook - Cat. 2 National |
| Cylinder Base End Fitting (P) | Spherical knuckle joint swiveling ball eye Ø 25.4 mm |
| Hydraulic Port Connection | 3/8" BSP threads (with pre-assembled pilot-operated dual check safety valve) |
| Net Component Weight | 11 kg |
| Product Code | 50879 |
