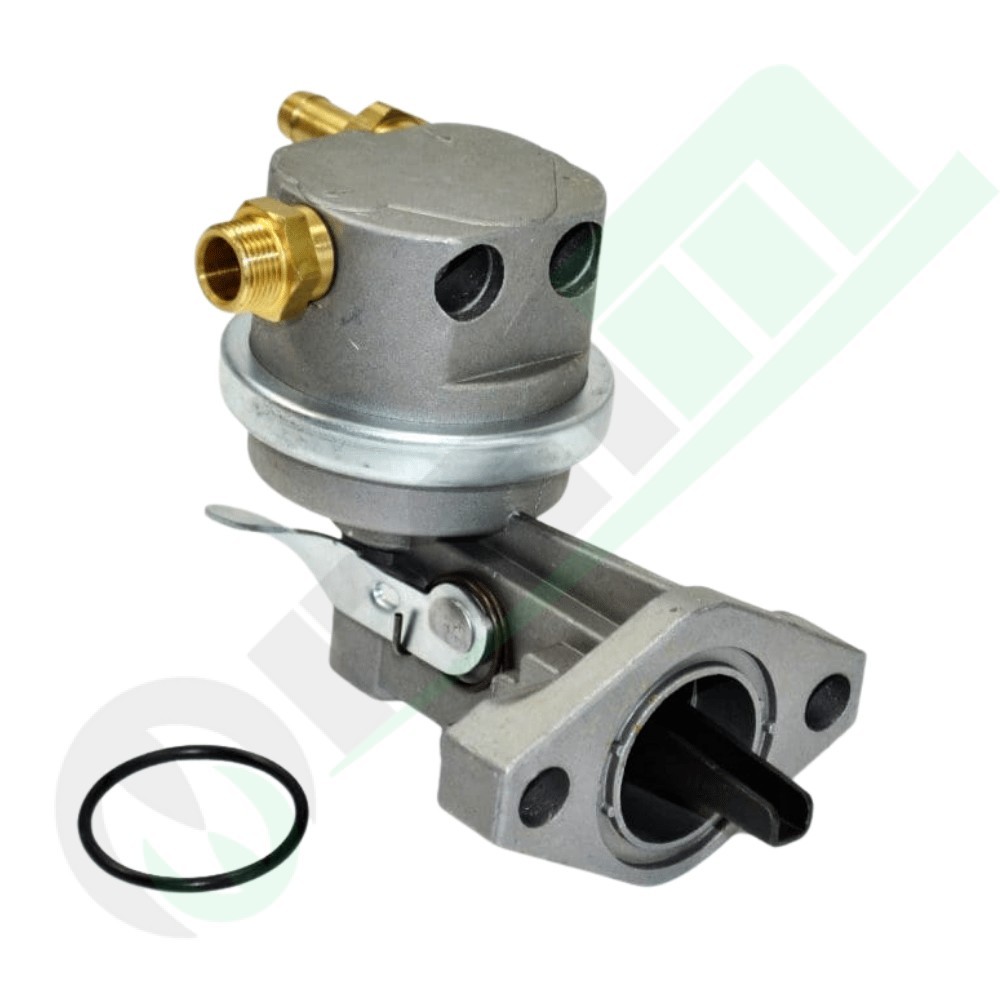

Fuel Lift Diaphragm Pump for John Deere Tractors Series 5M 7010 11 22 Ref RE68345 - 38012306

star star star star star_border
Aftermarket
38012306

Mechanical diaphragm fuel lift pump 38012306 (2-hole mount, 59 mm hole pitch, 22 mm lever) for John Deere tractors and combine harvesters Series 5M (5085M, 5095M, 5105M), Series 7010 (7610, 7710, 7810), Series 11, and Series 22. Direct fuel feed replacement compatible with OEM part numbers RE68345 and RE535727.

Hurry! only 7 items left in stock.
€49.90
Tax included
COUPON
- € 1,00
Final price: € 48,90
Quantity

Media disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Diaphragm Fuel Lift Pump - Part Number: 38012306

The Diaphragm Fuel Lift Pump (part number 38012306, original John Deere OEM references RE68345 and RE535727) is a 2-hole mechanical fuel delivery unit featuring a 59 mm hole center distance and a 22 mm actuator arm, engineered to ensure continuous and reliable diesel flow to the injection pump on John Deere tractors and combines (5M, 7010, 11, and 22 Series).
Key Features & Benefits
  • Continuous & Dependable Delivery: Delivers steady low-pressure diesel flow to the fuel injection circuit, preventing starvation and power loss under demanding field conditions.
  • Heavy-Duty Diaphragm: Formulated with hydrocarbon-resistant elastomeric materials engineered to resist standard diesel and biodiesel blends without cracking.
  • Precise Actuator Geometry: Calibrated 22 mm lever arm ensures smooth and accurate mechanical engagement with the engine camshaft lobe.
  • Direct OEM Replacement: Manufactured with 59 mm mounting hole spacing to match factory John Deere dimensional tolerances perfectly.
Technical Specifications
Product Code 38012306
Mounting Configuration 2-hole mounting flange
Hole Spacing (Center to Center) 59 mm
Lever Length (Flange to tip) 22 mm
Equivalent OEM References RE68345, RE535727
Application Table & Compatible John Deere Models
Series / Category Specific Compatible Models OEM Reference
5M Series Tractors 5085M, 5095M, 5105M RE68345, RE535727
7010 Series Tractors 7610, 7710, 7810
11 Series Combines 1165, 1170
22 Series Combines 2254
Technical Note: Carefully check the mounting hole spacing (59 mm) and lever arm length (22 mm from flange to tip) before fitting to ensure correct differentiation from 44/45 mm flange variants.
