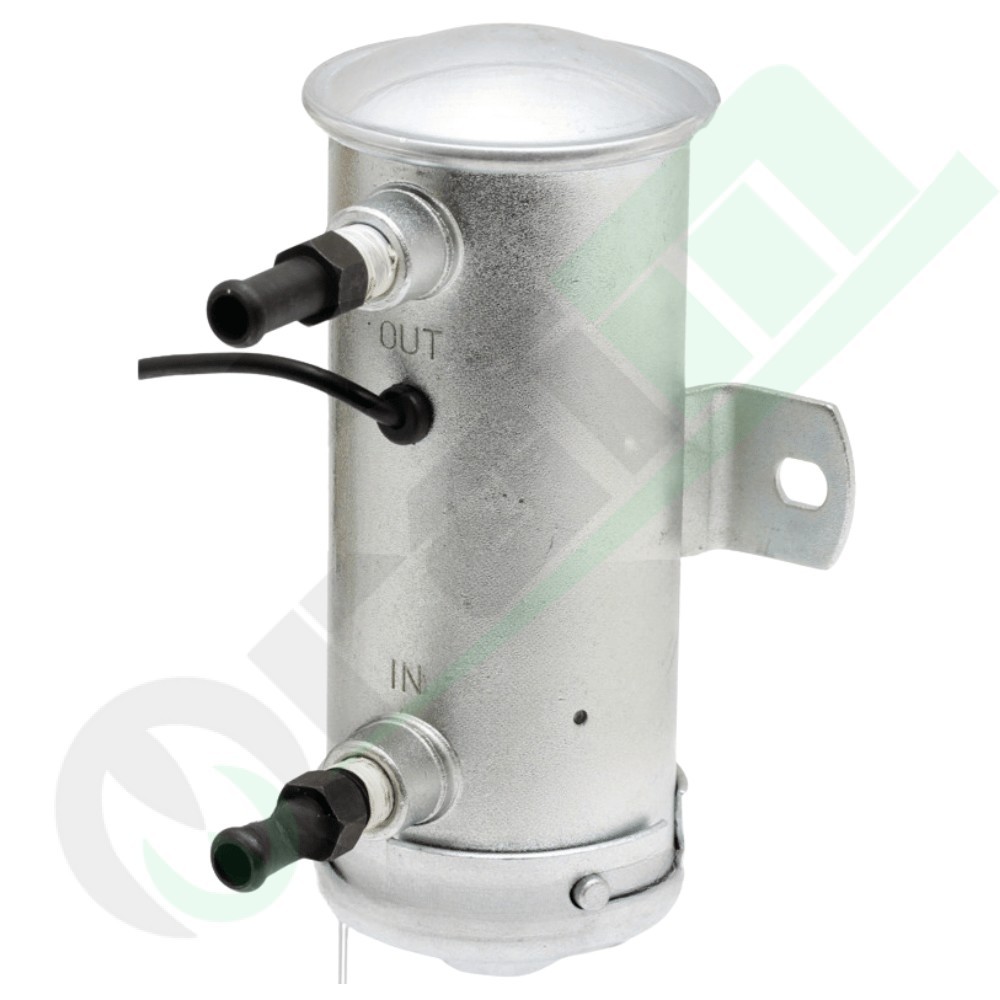

12V Electric Diaphragm Fuel Pump for Fiat Ford John Deere Tractors Ref 82006984 AR65058 - 38017523

star star star star star_border
Aftermarket
38017523

12V electric diaphragm fuel pump 38017523 (flow rate 170 l/h, max 0.5 bar, 1/8" NPT thread, integrated 400 µ filter) suitable for diesel, petrol, E10-E85, and vegetable oil. Compatible with Fiat Series M, Ford Series 60, and John Deere Series 900 and 1000. Matches OEM references 82006984, AR65058, AZ27952, and AH66236.

Hurry! only 19 items left in stock.
€89.00
Tax included
COUPON
- € 1,78
Final price: € 87,22
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

12V Electric Diaphragm Fuel Lift Pump (170 L/h) - Part Number: 38017523

The 12V Electric Diaphragm Fuel Lift Pump (part number 38017523, John Deere OEM references AR65058, AZ27952, AZ27951, AR67543, AH66236 and Fiat/Ford 82006984) is a heavy-duty, self-priming universal fuel transfer pump featuring an integrated, replaceable 400 µm mesh filter. It is fully engineered to handle diesel, gasoline, ethanol blends (E10-E85), and vegetable oil on John Deere combines, as well as Fiat and Ford tractors.
Key Features & Benefits
  • Broad Fuel Compatibility: Engineered for full compatibility with standard diesel, gasoline, ethanol blends from E10 to E85, and neat or viscous vegetable oil.
  • Integrated Cleanable Filter: Built-in 400-micron replaceable mesh filter traps coarse impurities before they reach internal pump diaphragms and valves.
  • Superior Priming & High Flow: Supplies a steady delivery rate of 170 L/h with up to 0.6 m self-priming suction lift and maximum pressure of 0.5 bar.
  • Standard Tapered Fittings: Standard 1/8" NPT female ports and 64 mm mounting bracket spacing for direct fitment across John Deere, Fiat, and Ford fleets.
Technical Specifications
Product Code 38017523
Operating Voltage 12 V DC
Flow Rate & Maximum Pressure 170 L/h · Max pressure 0.5 bar
Suction Lift & Connections 0.6 m self-priming lift · Female 1/8" tapered NPT ports
Integrated Pre-Filter Built-in, serviceable, 400 µm mesh width
Dimensions & Bracket Spacing Total height: 139 mm · Hole spacing: 64 mm (Ø 7 mm holes)
Equivalent OEM References John Deere: AR65058, AZ27952, AZ27951, AR67543, AH66236 · Fiat / Ford: 82006984
Application Table & Compatible Brands
Manufacturer Series / Category Specific Compatible Models
John Deere 900 Series Combines 925, 932, 935, 942, 945, 952, 955, 965, 968, 975, 985
1000 Series Combines 1032, 1042, 1052, 1055, 1065, 1068H, 1072, 1075, 1085
Fiat / Fiatagri M Series Tractors M 100, M 115, M 135, M 160
Ford / New Holland 60 Series Tractors 8160, 8260, 8360, 8560
Technical Note: Pay attention to 12V polarity upon installation. To ensure reliable self-priming (up to 0.6 m), locate the pump as close to the fuel supply level as possible. Routinely service or rinse the integrated 400 µm mesh filter to maintain nominal flow capacity (170 L/h).
