Diaphragm Fuel Lift Pump for John Deere PowerTech Engines 4045 6068 22 Z Series Ref RE55390 - 3802708

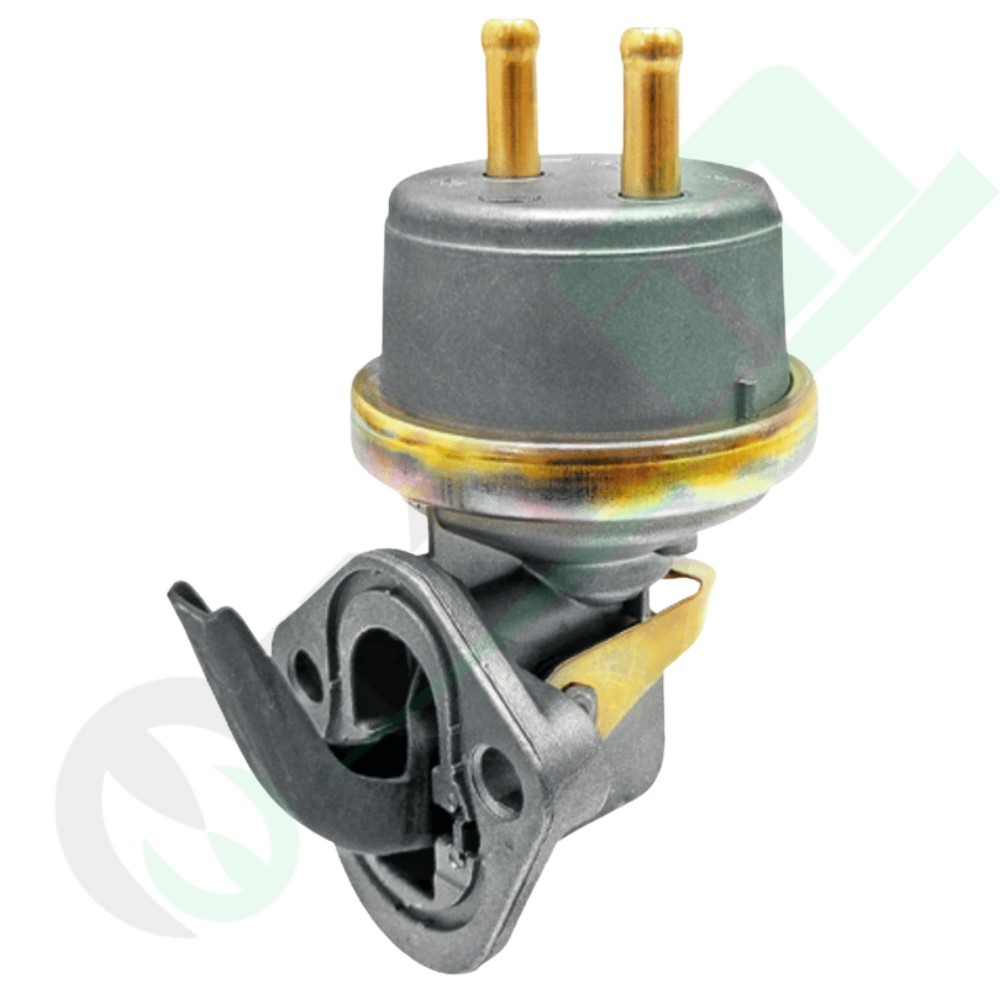

Mechanical diaphragm fuel lift pump 3802708 (2-hole mount, 45 mm hole pitch, 33 mm lever) for John Deere PowerTech engines 3029, 4039, 4045, 6059, 6068, 4000 Series tractors, and combine harvesters Series 22 (2254) and Series Z (2054). Direct fuel feed replacement compatible with OEM part number RE55390.

Consistent Fuel Feed
Specific 33 mm Lever Geometry
Heavy-Duty Diaphragm

€34.90VAT incl.

Coupon -€0.70 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €34.20

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Mechanical diaphragm fuel lift pump 3802708 (2-hole mount, 45 mm hole pitch, 33 mm lever) for John Deere PowerTech engines 3029, 4039, 4045, 6059, 6068, 4000 Series tractors, and combine harvesters Series 22 (2254) and Series Z (2054). Direct fuel feed replacement compatible with OEM part number RE55390.

Key features

Consistent Fuel FeedMaintains steady low-pressure fuel supply to the injection pump, preventing starvation and line cavitation under heavy field workloads.

Specific 33 mm Lever GeometryFeatures a calibrated 33 mm actuator arm designed for accurate engagement with the engine camshaft lobe.

Heavy-Duty DiaphragmMolded with high-grade elastomeric materials resistant to standard diesel, biodiesel blends, and severe thermal cycles.

Direct OEM FitmentBuilt strictly to factory specifications with a 45 mm horizontal hole pattern for direct, leak-free installation on John Deere RE55390 applications.

Specifications

Product Code	3802708
Mounting Configuration	2-hole mounting flange
Horizontal Hole Spacing	45 mm
Lever Length (Flange to tip)	33 mm
John Deere OEM Reference	RE55390
