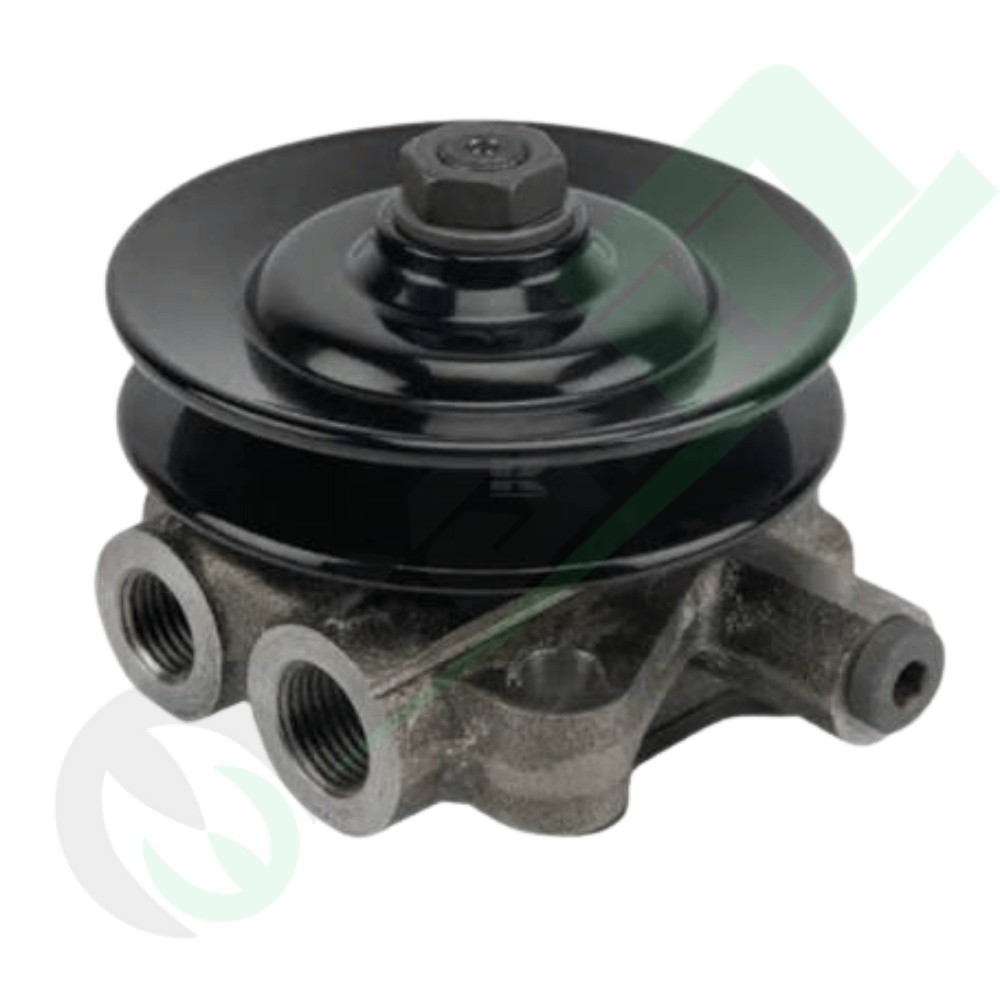

GENUINE DEUTZ Mechanical Diesel Fuel Feed Lift Pump for Deutz Engines, Deutz-Fahr Agrotron K, Lamborghini R6 & Same Iron Tractors - Part Number: 04514752
The GENUINE DEUTZ mechanical diesel fuel feed lift pump (part number 04514752, interchangeable and cross-references 04516956, 04296790, 04290599, 18542611, 38004707) is an authentic OEM factory-direct component engineered by Deutz AG to deliver reliable, continuous low-pressure fuel flow to the main filtration circuit and high-pressure common rail injection pump. Built specifically for Deutz 4-cylinder and 6-cylinder TCD series agricultural engines, it supplies bubble-free, pulsation-dampened diesel fuel across all engine RPMs and operating conditions. Manufactured to exacting original engineering tolerances, it prevents fuel starvation, delivers positive sealing, and ensures direct plug-and-play fitment on Deutz-Fahr Agrotron K series, Lamborghini R6 series, and Same Iron series tractors.
Key Features & Engineering Advantages
- 100% Genuine Deutz Factory Part: Manufactured to official Deutz AG engineering and metallurgical specifications, ensuring precise drive alignment with internal engine gears and preventing premature mechanical wear.
- Stable Delivery Rate & Flow Pressure: Maintains steady low-pressure diesel delivery from the tank to primary filters, protecting sensitive high-pressure common rail systems against cavitation and starvation.
- OEM-Grade Sealing Matrix: CNC-machined die-cast metal housing fitted with high-grade elastomeric seals designed to withstand high engine heat cycles and the chemical action of diesel and biodiesel fuels (EN 590 / FAME).
- High-Integrity Internal Non-Return Valves: Check valves maintain circuit prime when the engine is switched off, stopping fuel drain-back to the tank and ensuring smooth, instant cold-weather starts.
- Direct Multi-Brand Drop-In Fit: Fully interchangeable with Deutz and SDF group part numbers 04516956, 04296790, 04290599, 18542611, and 38004707 without requiring line adaptations or bracket changes.
Technical Specifications
| Primary Part Number |
04514752 |
| Manufacturer / Quality Brand |
DEUTZ (Original Genuine Parts) |
| OEM Cross-References |
04514752, 04516956, 04296790, 04290599, 18542611, 38004707 |
| Component Classification |
Mechanical low-pressure diesel fuel feed pump (lift pump) |
| Engine Family Compatibility |
Deutz 4 & 6-Cylinder Engines (TCD 2012 / TCD 4.1 / TCD 6.1 and related platforms) |
| Operational Fluid |
Standard agricultural diesel and biodiesel blends compliant with EN 590 |
| Housing Material |
Heavy-duty precision-machined die-cast metal alloy |
| Primary Application |
Fuel supply and pre-pressurization for Deutz-Fahr, Lamborghini, and Same tractors |
Equipment Compatibility & Tractor Application Guide
| Manufacturer |
Tractor Series |
Supported Tractor Models |
| Deutz-Fahr |
Agrotron K Series |
Agrotron K 430, Agrotron K 610 |
| Lamborghini |
R6 Series |
R6.115, R6.125 |
| Same |
Iron Series |
Iron 115, Iron 125 |
Installation Advice & Workshop Notes: Clean the engine mounting face thoroughly before unbolting the old pump to eliminate the risk of dirt or grit contaminating the fuel lines or crankcase. Disconnect the negative battery terminal and relieve residual pressure from the lines. Always fit a new genuine Deutz sealing ring or gasket, lightly lubricating it with clean engine oil or diesel prior to installation. Tighten mounting bolts evenly in a crisscross sequence to the torque specified in the Deutz workshop service manual. Reconnect fuel suction and delivery ports using new copper/aluminum seal washers, and thoroughly bleed air from the fuel filters and pre-feed lines before starting the engine.
