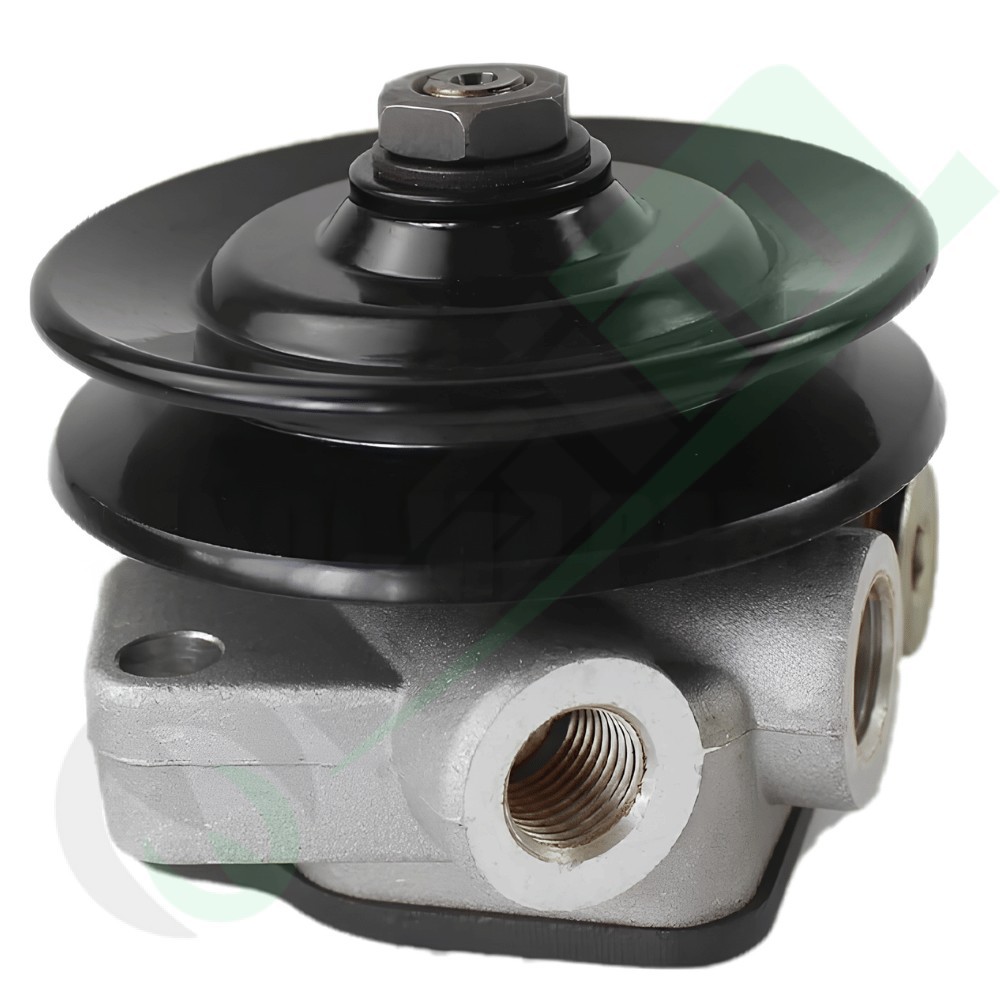

Belt-Driven Centrifugal Fuel Lift Pump with Ø 102 mm Pulley for Deutz Engines, Deutz-Fahr, Fendt, Lamborghini & Same Tractors - Part Number: 38004379

The centrifugal diesel fuel feed lift pump with integrated Ø 102 mm drive pulley (part number 38004379, OEM references 04503573, 04515664, 04503572, 02113812, 02113799, 02113753, 02112672, 02112558, 04255562, 02111634, 04207013, 04801613, F119200710710) is a belt-driven low-pressure fuel circulation component engineered for Deutz BFM1012, BFM1013, BFM2012, and TCD2012 diesel engines. Featuring a 2-hole mounting pattern with a 78 mm horizontal hole spacing and a 102 mm pulley, it provides steady, pulsation-free low-pressure fuel transfer from the tank to primary filters and the high-pressure injection pump. Built to OEM equivalent standards, it ensures optimal hydraulic performance and durable service life across broad tractor ranges from Deutz-Fahr (Agrofarm, Agroplus, Agrotron, Agrotron MK3/New/TTV, Agrovector), Fendt (Farmer 300 series), Lamborghini (R6, R7, R8, Victory), and Same (Diamond, Iron).

Key Features & Engineering Advantages

• Continuous-Flow Centrifugal Design: The precision-balanced centrifugal impeller delivers uniform and smooth diesel feed, preventing fuel pressure pulsations and cavitation in high-load operating conditions.
• Precision-Balanced Ø 102 mm Pulley: Machined to exact OEM tolerances for balanced belt engagement, eliminating belt chatter, vibration, and premature bearing wear at high engine RPMs.
• Calibrated 2-Hole Mounting Pattern (78 mm Spacing): Standard 78 mm horizontal mounting pattern ensures rigid, parallel alignment against Deutz engine blocks and timing cases.
• Heavy-Duty Mechanical Seal & Bearings: Sealed dual-row ball bearings and fluorocarbon elastomeric seals resist low-sulfur diesel degradation and modern biodiesel blends (EN 590 / FAME).
• Extensive Multi-Brand OEM Interchange: Serves as a direct replacement for multiple historic Deutz and SDF part numbers and Fendt reference F119200710710, simplifying inventory across agricultural fleets.

Technical Specifications & Dimensions

Equipment Compatibility & Tractor Application Guide

Manufacturer	Tractor Series / Engine	Supported Tractor Models
Deutz-Fahr	Deutz Engines	BFM 1012, BFM 1013, BFM 2012, TCD 2012
	Agrofarm & Agroplus Series	Agrofarm 410, 420, 430 • Agroplus 75, 85, 95, 100
	Agrotron (First Generation)	Agrotron 80, 85, 90, 100, 105, 106, 110, 115, 120, 135, 150, 160, 175, 195, 200, 230, 260
	Agrotron (4.xx & 6.xx)	Agrotron 4.70, 4.80, 4.85, 4.90, 4.95 • Agrotron 6.00, 6.01, 6.05, 6.15, 6.20, 6.30, 6.45
	Agrotron K Series	Agrotron K 410
	Agrotron MK3 Series	Agrotron MK3 80, 85, 90, 100, 105, 106, 110, 115, 120, 135, 150, 160, 165, 175, 200, 230, 260
	Agrotron New Series	Agrotron New 130, 140, 150.7, 155, 165, 165.7, 180, 180.7, 210, 215, 235, 265
	Agrotron TTV Series	Agrotron TTV 1130, TTV 1145, TTV 1160
	Agrovector Series (Telehandlers)	Agrovector 26.6, 29.6, 30.7, 35.7
Fendt	Farmer 300 Series	Farmer 307 (Typ 117), Farmer 308 (Typ 118), Farmer 309 (Typ 119)
Lamborghini	R6 Series	R6.130, R6.140, R6.150, R6.150.7, R6.165, R6.165.7, R6.180.7
	R7 Series	R7.175, R7.190, R7.200
	R8 Series	R8.215, R8.265
	Victory Series	Victory 230, Victory 260
Same	Diamond Series	Diamond 215, Diamond 230, Diamond 260, Diamond 265
	Iron Series	Iron 130, Iron 140, Iron 150, Iron 150.7, Iron 165, Iron 165.7, Iron 175, Iron 180.7, Iron 190, Iron 200

Installation Advice & Workshop Notes: Relieve belt tension and remove the accessory drive belt before unbolting the pump. Thoroughly clean the mounting surface on the engine block to eliminate old gasket particles or road dirt. Install the new pump using a new sealing ring/gasket over the 2-hole pattern (78 mm horizontal spacing) and torque mounting bolts evenly. Check that the 102 mm pulley spins freely and is co-planar with adjacent engine pulleys prior to refitting the drive belt. Replace all fuel connection sealing washers, set the drive belt to factory tension, and thoroughly bleed air from the fuel supply circuit before engine start-up.
