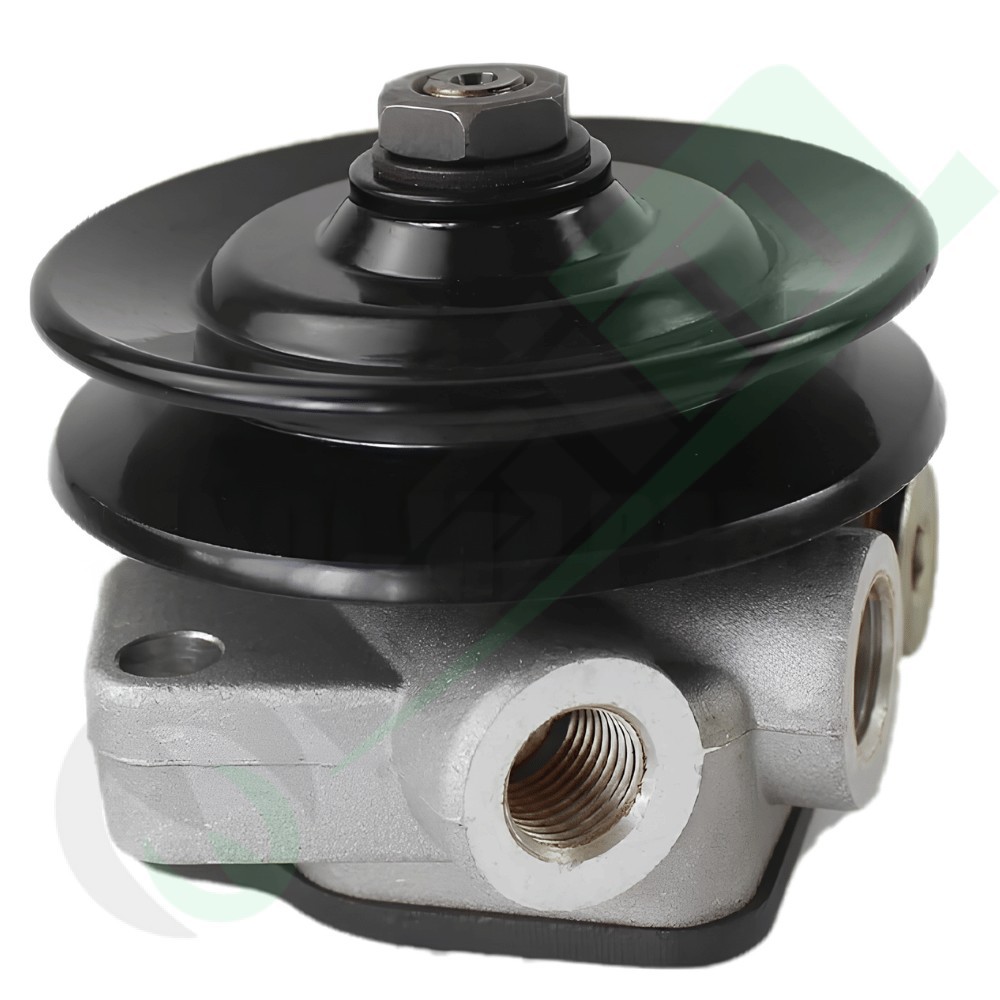

GENUINE DEUTZ Belt-Driven Centrifugal Fuel Lift Pump with Ø 102 mm Pulley for Deutz-Fahr, Fendt, Lamborghini & Same Tractors - OEM Part: 4503572, 04515664

The GENUINE DEUTZ centrifugal diesel fuel feed lift pump with integrated Ø 102 mm drive pulley (original Deutz OEM part numbers 4503572, 04515664, related cross-references 04503573, 04503572, 02113812, 02113799, 02113753, 02112672, 02112558, 04255562, 02111634, 04207013, 04801613, F119200710710, 38004379) is an authentic factory-direct low-pressure fuel supply component manufactured by Deutz AG for Deutz BFM1012, BFM1013, BFM2012, and TCD2012 diesel engines. Engineered with a 2-hole mounting flange (horizontal hole spacing 78 mm) and a 102 mm balanced pulley, it provides steady, cavitating-free diesel delivery from the tank to primary filters and the high-pressure injection pump. This genuine Deutz part delivers maximum operational reliability, true rotational balance, and direct bolt-on fitment on agricultural equipment from Deutz-Fahr (Agrofarm, Agroplus, Agrotron, Agrotron MK3/New/TTV, Agrovector), Fendt (Farmer 300 series), Lamborghini (R6, R7, R8, Victory), and Same (Diamond, Iron).

Key Features & Engineering Advantages

• 100% Genuine Deutz Factory Quality: Built strictly to Deutz AG original equipment engineering standards, ensuring precise drive alignment with ancillary components and eliminating shaft vibration.
• Continuous Impeller Flow Dynamics: Dynamically balanced centrifugal impeller delivers steady, surge-free diesel flow, shielding high-pressure common rail injection pumps from fuel starvation and cavitation.
• Precision-Balanced Ø 102 mm Drive Pulley: Machined to exact OEM tolerances for smooth belt contact, eliminating belt squeal, harmonics, and premature bearing strain under heavy engine loads.
• Precision 2-Hole Mounting Pattern (78 mm Spacing): 78 mm horizontal bolt spacing provides an oil-tight, rigid fit against Deutz engine blocks and front gear covers.
• Heavy-Duty Bearings & Internal Mechanical Seals: Premium internal elastomeric seals and sealed dual-row bearings resist modern low-sulfur fuels and biodiesel degradation (EN 590 / FAME).
• Extensive OEM Interconnectivity: Directly replaces parts 4503572, 04515664, all associated Deutz/SDF references, and Fendt reference F119200710710 across agricultural machinery fleets.

Technical Specifications & Dimensions

Equipment Compatibility & Tractor Application Guide

Manufacturer	Tractor Series / Engine	Supported Tractor Models
Deutz-Fahr	Deutz Engines	BFM 1012, BFM 1013, BFM 2012, TCD 2012
	Agrofarm & Agroplus Series	Agrofarm 410, 420, 430 • Agroplus 75, 85, 95, 100
	Agrotron (First Generation)	Agrotron 80, 85, 90, 100, 105, 106, 110, 115, 120, 135, 150, 160, 175, 195, 200, 230, 260
	Agrotron (4.xx & 6.xx)	Agrotron 4.70, 4.80, 4.85, 4.90, 4.95 • Agrotron 6.00, 6.01, 6.05, 6.15, 6.20, 6.30, 6.45
	Agrotron K Series	Agrotron K 410
	Agrotron MK3 Series	Agrotron MK3 80, 85, 90, 100, 105, 106, 110, 115, 120, 135, 150, 160, 165, 175, 200, 230, 260
	Agrotron New Series	Agrotron New 130, 140, 150.7, 155, 165, 165.7, 180, 180.7, 210, 215, 235, 265
	Agrotron TTV Series	Agrotron TTV 1130, TTV 1145, TTV 1160
	Agrovector Series (Telehandlers)	Agrovector 26.6, 29.6, 30.7, 35.7
Fendt	Farmer 300 Series	Farmer 307 (Typ 117), Farmer 308 (Typ 118), Farmer 309 (Typ 119)
Lamborghini	R6 Series	R6.130, R6.140, R6.150, R6.150.7, R6.165, R6.165.7, R6.180.7
	R7 Series	R7.175, R7.190, R7.200
	R8 Series	R8.215, R8.265
	Victory Series	Victory 230, Victory 260
Same	Diamond Series	Diamond 215, Diamond 230, Diamond 260, Diamond 265
	Iron Series	Iron 130, Iron 140, Iron 150, Iron 150.7, Iron 165, Iron 165.7, Iron 175, Iron 180.7, Iron 190, Iron 200

Installation Advice & Workshop Notes: Relieve auxiliary belt tension and remove the belt prior to dismantling the pump. Clean the engine block mounting area thoroughly to remove dirt and carbon remnants. Install the genuine Deutz pump using a brand-new genuine gasket or O-ring over the 2-hole mounting pattern (78 mm horizontal spacing) and tighten retaining bolts evenly to Deutz AG torque specifications. Verify that the 102 mm pulley rotates freely without runout before tensioning the belt. Reconnect the fuel lines using new copper/aluminum seal rings, adjust belt tension to factory specifications, and bleed all air from the fuel supply circuit prior to starting the engine.
