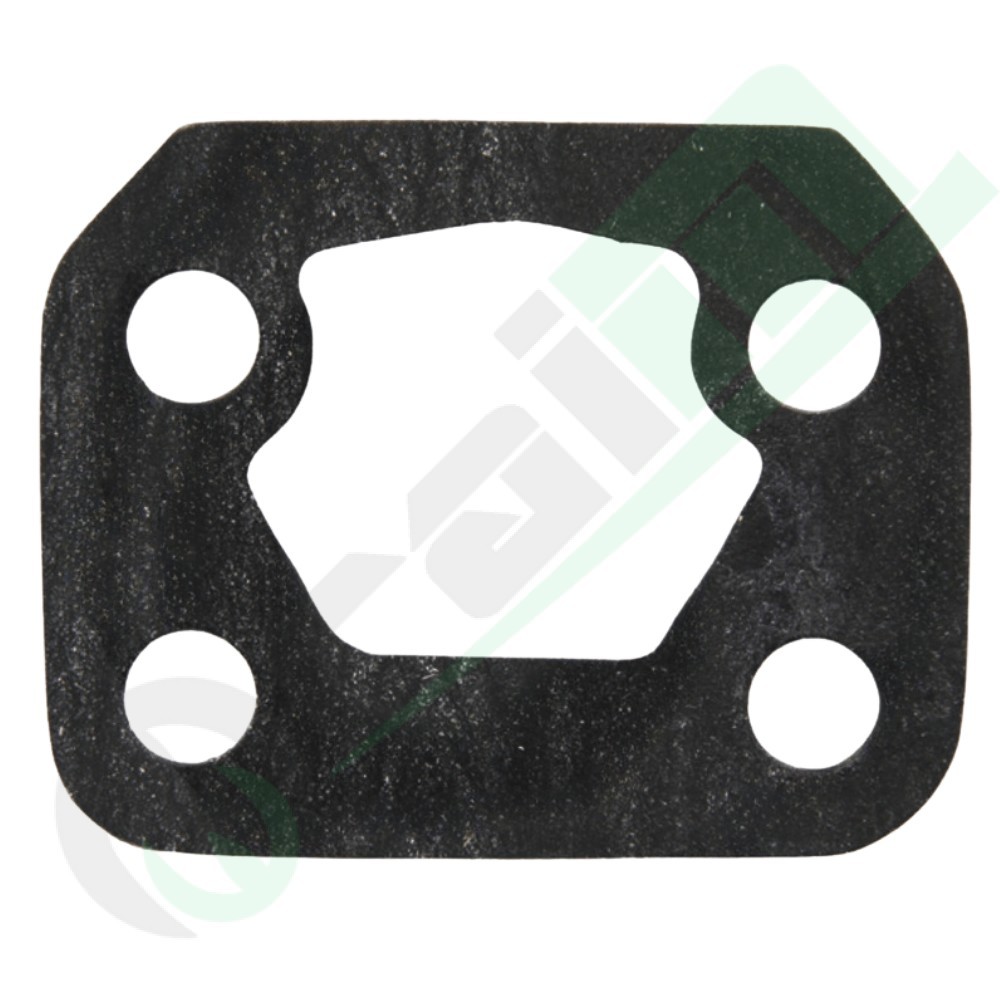

4-Hole Diesel Fuel Lift Pump Flange Gasket for Same, Lamborghini, Hürlimann, Landini & Massey Ferguson Tractors - Part Number: 38002777

The mechanical fuel lift pump mounting gasket (part number 38002777, interchangeable references 2.4519.230.0/10, 2.4519.290.0, 2.4519.220.0, 2.4519.230.0, 218790A1) is an OEM-grade precision die-cut sealing component designed to ensure a leak-free interface between the engine block and the fuel feed pump mounting flange. Built with a standardized 4-hole pattern (vertical hole spacing = 25 mm, horizontal hole spacing = 45 mm), it prevents hot engine oil leaks and protects the crankcase from fuel contamination. Its calibrated thickness maintains exact rocker arm travel and pump stroke relative to the camshaft lobe. This gasket provides universal application across SDF Group powertrains (Same, Lamborghini, Hürlimann) as well as Perkins 3.152 and 4.XXX series engines (4.40, 4.302, ED 4.108, Typ 3.XXX) fitted on Landini and Massey Ferguson tractors.

Key Features & Engineering Advantages

• Precision 4-Hole Die-Cut Geometry (25 x 45 mm): Matches factory SDF and Perkins block mountings accurately, ensuring uniform surface pressure and preventing flange distortion.
• High-Grade Hydrocarbon-Resistant Composite: Formulated from high-density NBR-bonded cellulose fibers resistant to hot motor oil, standard diesel fuel, and modern biodiesel blends (EN 590 / FAME).
• Calibrated Thickness for Rocker Alignment: Engineered to original thickness specifications to preserve proper camshaft lobe engagement, stroke distance, and rated fuel delivery pressure.
• Reliable Dual-Barrier Sealing: Eliminates external oil weeping from the crankcase port while keeping environmental dust and grit from entering the engine.
• Extended Multi-Brand Agricultural Fitment: Broad coverage spanning SDF tractor ranges (Same, Lamborghini, Hürlimann) and classic Perkins-powered Landini and Massey Ferguson machines.

Technical Specifications & Dimensions

Equipment Compatibility & Tractor Application Guide

Manufacturer / Brand	Engine Family / Series	Supported Tractor Models & Applications
Landini & Massey Ferguson (Perkins Engines)	Perkins 3 & 4-Cylinder Engines	Perkins 3.152, Typ 3.XXX
	4.XXX Series (OEM Ref. 218790A1)	4.40, 4.302, ED 4.108 across Landini and Massey Ferguson tractor lines
Hürlimann	Deutz Engines	Deutz H1106/17T
	H 351 → H 361 Series	H-361
	H 496 → H 5116 Series	H-496, H-5116
	H 6130 → H 6170 Series	H-6136, H-6160, H-6170
Lamborghini	Lamborghini & Same Engines	Lamborghini 984, 986 • Same 916.3, 916.4, 1000.6, 1054
	Series 1000	1506, 1706
	C Series (Crawlers)	C 503, C 554, C 583, C 603, C 653, C 664, C 674, C 683, C 684, C 754, C 784
	R 600 Series	R 613, R 653, R 660, R 683, R 684
	R 700 & R 800 Series	R 754, R 784, R 854
	R 900 Series	R 955
	R 1000 Series	R 1056, R 1156, R 1256, R 1556
Same	Same Engines	Same 105.4, 105.5
	Broadacre & Classic Series	Buffalo 130, Buffalo 140, Centauro 70, Centurion 70, Centurion 75, Corsaro 70, Drago 120, Galaxi 170, Jaguar 95, Panther 95, Saturno 80, Trident 130
	Laser Series	Laser 85, Laser 90, Laser 100, Laser 110, Laser 130, Laser 150
	Leopard & Mercury Series	Leopard 85, Leopard 90, Leopard C, Mercury 85
	Compact, Orchard & Crawler Series	Condor 55, Minitaurus 50/55/60, Solar 55/60, Taurus 60, Taurus C, Tiger 100/105, Vigneron 60/70

Installation Advice & Workshop Notes: Thoroughly remove all remnants of the old gasket from both the engine block and the pump flange using a non-marring scraper and solvent. Install the gasket dry without liquid silicone or RTV sealant unless specifically instructed, as excess sealant can squeeze inward and interfere with rocker arm motion or alter standoff distance. Center the gasket over the 4 mounting studs (25 x 45 mm spacing) and tighten nuts in an alternating crisscross pattern to factory torque settings to prevent distorting the aluminum flange.
