GRANIT Oval LED Work Light 7070010251 | 18W | 1200 lm | FENDT JOHN DEERE | Replaces RE219708

GRANIT LED Work Light 7070010251 (Long Range)

€69.90VAT incl.

Coupon -€1.40 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €68.50

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The GRANIT LED work light 7070010251 is a robust and universal oval auxiliary lamp designed to provide long-range illumination in harsh operating conditions. With an IP67 / IP69K protection rating, it is ideal for use on Fendt and John Deere tractors and combines. It features low power consumption (18 W) and a high effective luminous flux (1200 lm).

Technical Data

Part Number: 7070010251 (GRANIT).
Light Function: Long range illumination.
Nominal Voltage (V): 12 / 24.
Voltage (Volt): 10 - 30.
Power Consumption (W): 18.
LED Quantity: 4.
Effective Luminous Flux (lm): 1200.
Theoretical Luminous Flux (lm): 1550.
Light Color (K): 5700 - 7000.
Lamp Type: LED (Bulbs included: Yes).
Protection Type: IP67 / IP69K.
Temperature Range (°C): -40 / +80.

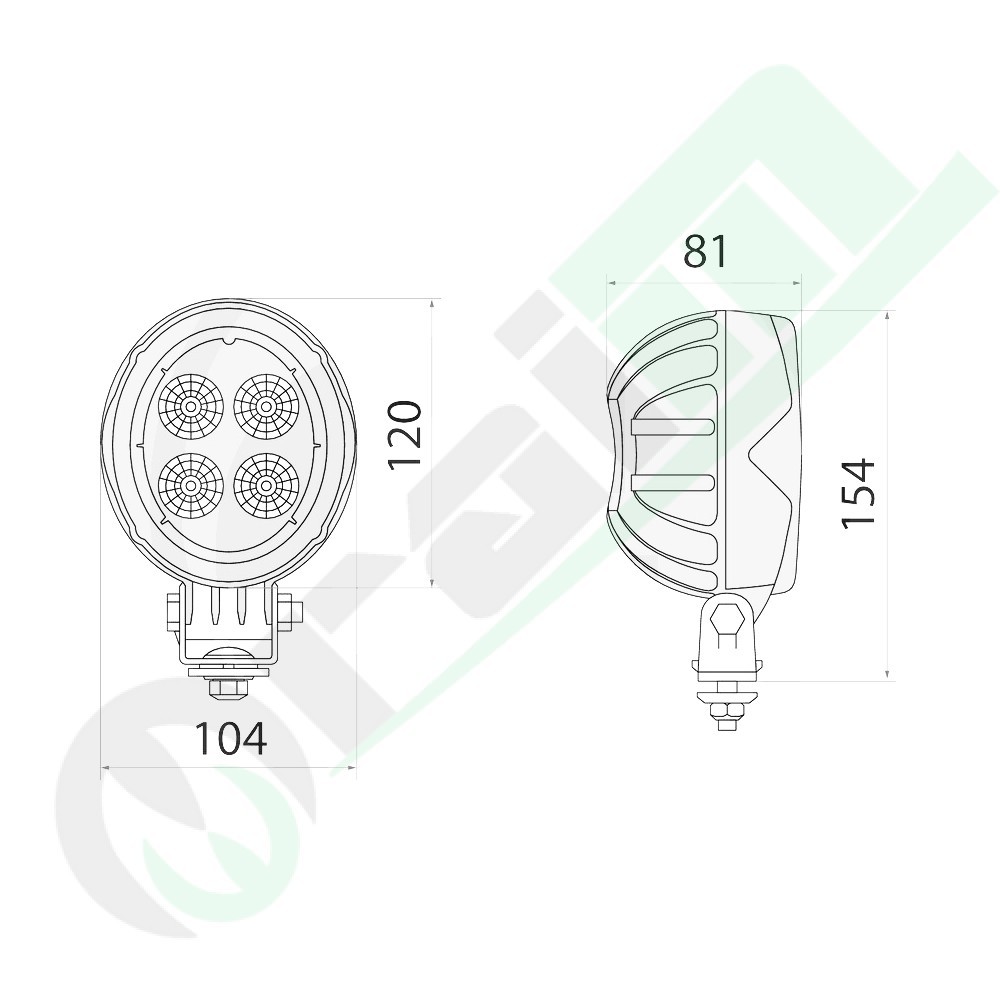

Dimensions and Mounting

Dimensions L x H x D (mm): 104 x 120 x 81.
Frame Size (mm): 154.
Shape: Oval.
Mounting Position: Universal.
Mounting Method: Screw mounting, vertical / suspended.
Connection: Open cable ends.
Cable Length (mm): 500.
Pole Quantity: 2.
Material: Housing: Plastic material, aluminum; lens: Plastic material.
Additional Information: Red frame, interchangeable (M8).

Original References

1GM 996 136-361
RE219708
AL150478
RE233263

Compatible Machine Models (Brand - Series - Model)

FENDT - Fendt 200 Series:
- 206 S (Typ 326), 206 V+F (Typ 210)
- 207 (Typ 330), 207 S (Typ 327), 207 V+F (Typ 212, Typ 260)
- 208 (Typ 331), 208 P (Typ 221), 208 S (Typ 328), 208 V+F (Typ 213, Typ 261)
- 209 (Typ 332), 209 P (Typ 222, Typ 272), 209 S (Typ 329), 209 V+F (Typ 214, Typ 262)
- 210 (Typ 333), 210 P (Typ 273), 210 V+F (Typ 263)
- 211 (Typ 334), 211 P (Typ 274), 211 V+F (Typ 264)
FENDT - Fendt 800 Series:
- 819 (Typ 832), 822 (Typ 833), 824 (Typ 834), 826 (Typ 835), 828 (Typ 836)
FENDT - Fendt 900 Series:
- 922 (Typ 919), 924 (Typ 922, Typ 941)
- 927 (Typ 925, Typ 942), 930 (Typ 928, Typ 943)
- 933 (Typ 931, Typ 944), 936 (Typ 934, Typ 945)
- 939 (Typ 946)
JOHN DEERE - 5E / 5M / 5R/5RN / 6D / 6E / 6M / 6MC Series:
- 5055E, 5075E, 5083E, 5083EN, 5085E, 5093E, 5093EN, 5101E, 5101EN
- 5065M, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5105M, 5115M
- 5080R, 5080RN, 5090R, 5090RN, 5100R, 5100RN
- 6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D
- 6105E
- 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M
- 6090MC
JOHN DEERE - 3000 / 3015 / 3020 / 5020 / 5025 Series:
- 3800
- 3215, 3415
- 3220, 3420
- 5320, 5520
- 5220, 5620, 5720, 5820 (5020/5020N Series)
- 5625 (5025/5025N Series)
- 5080, 5090
JOHN DEERE - 6015 / 6020 / 6030 Series:
- 6215 (PC4367), 6715
- 6120, 6120 (PC4356), 6220, 6320, 6320 (PC4357), 6420, 6420 (PC4357), 6420S, 6520, 6620, 6820, 6920, 6920S
- 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR
JOHN DEERE - 7000 / 7030 / 7050 Series:
- 7200, 7300, 7400, 7500, 7700, 7800
- 7130, 7230, 7430 PR, 7530 PR
- 7250, 7350, 7450, 7550, 7750, 7850, 7950
JOHN DEERE - Combines (C / CTS / T / W / WTS Series):
- C 670
- CTS 9780
- T550, T560, T660, T670
- WTS 9540, 9540i, 9560, 9560i, 9580, 9580i, 9640, 9660, 9680
NEW HOLLAND - CL / CS 500 / CS 6000 / CSX 7000 Series:
- CL560, CL6060
- CS520, CS540, CS640, CS660
- CS6050, CS6060, CS6070, CS6080, CS6090
- CSX7040 (9/08-), CSX7050 (1/08-8/11), CSX7060 (9/06-8/08, 9/08-), CSX7070 (9/08-), CSX7080 (9/06-8/08, 9/08-)
