GRANIT Oval LED Work Light 7070010306 | 30W | 3500 lm | Close and Wide Range Illumination

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

GRANIT Oval LED Work Light 7070010306 | 30W | 3500 lm | Close and Wide Range Illumination

GRANIT LED Work Light 7070010306 (Near Field/Wide Area)

€69.90VAT incl.

Coupon -€1.40 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €68.50

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The GRANIT LED work light 7070010306 provides optimal near field or wide area illumination. With 3500 effective lumens and 30 Watts of power, it is an efficient lighting solution for agricultural machinery, particularly suitable as a replacement for many John Deere series. The oval shape and IP67 / IP6K9K rating guarantee durability and resistance in difficult working environments. Installation is via an AMP plug and straight M4 mounting.

Technical Data

Part Number: 7070010306 (GRANIT).
Light Function: Reflector (Near field / wide area illumination).
Nominal Voltage (V): 12 / 24.
Voltage (Volt): 10 - 30.
Power Consumption (W): 30.
LED Quantity: 18.
Effective Luminous Flux (lm): 3500.
Theoretical Luminous Flux (lm): 4100.
Light Color (K): 5000 - 6500.
Lamp Type: LED (Bulbs included: Yes).
Protection Type: IP67 / IP6K9K.
Temperature Range (°C): -40 / +50.
Control Mark: ECE R10; CE.
EMC: CISPR25 Class 3.

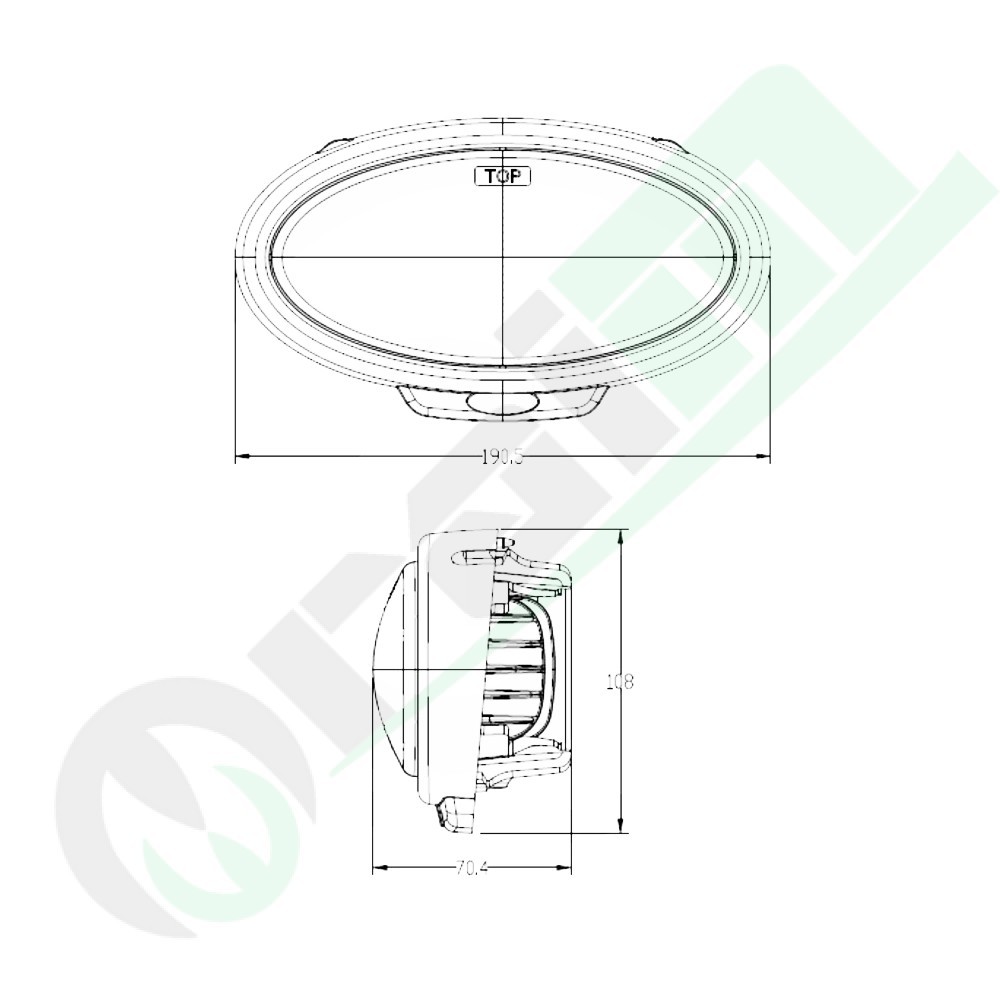

Dimensions and Mounting

Shape: Oval.
Dimensions L x H x D (mm): 190 x 108 x 70.
Width (mm): 190.5.
Height (mm): 108.
Depth (mm): 70.4.
Light Aperture (mm): 167 x 78.
Mounting Method: Straight; M4.
Connection: AMP Plug.
Material: Housing: Aluminum; lens: Plastic material.
Body Color: Black.

Original References

RE269637
RE331642

Compatible Machine Models (Brand - Series - Model)

JOHN DEERE - 5R/5RN Series:
- 5125R
JOHN DEERE - 6M Series:
- 6100M
JOHN DEERE - 6R Series:
- 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R
JOHN DEERE - 7R Series:
- 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R
JOHN DEERE - 8R/8RT Series:
- 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT
JOHN DEERE - 9R/RT/RX Series:
- 9360R, 9370R, 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX
