GRANIT Oval LED Work Light 7070010252 | 18W | 1200 lm | Long Range | For FENDT

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

GRANIT Oval LED Work Light 7070010252 | 18W | 1200 lm | Long Range | For FENDT

GRANIT LED Work Light 7070010252 (Horizontal Long Range)

€69.90VAT incl.

Coupon -€1.40 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €68.50

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The GRANIT LED work light 7070010252 is a robust auxiliary lamp, ideal for horizontal installation on agricultural machinery. With a low power draw of just 18 Watts and an effective luminous flux of 1200 lumens, it provides efficient long-range illumination. The IP67 / IP69K protection rating makes it extremely resistant to water and dust, perfect for the severe environmental conditions typical of farming. It is specifically applied to numerous Fendt tractor series.

Technical Data

Part Number: 7070010252 (GRANIT).
Light Function: Long range illumination.
Nominal Voltage (V): 12 / 24.
Voltage (Volt): 10 - 30.
Power Consumption (W): 18.
LED Quantity: 4.
Effective Luminous Flux (lm): 1200.
Theoretical Luminous Flux (lm): 1550.
Light Color (K): 5700 - 7000.
Lamp Type: LED (Bulbs included: Yes).
Protection Type: IP67 / IP69K.
Temperature Range (°C): -40 / +80.
Admissible: De minimis.

Dimensions and Mounting

Shape: Oval.

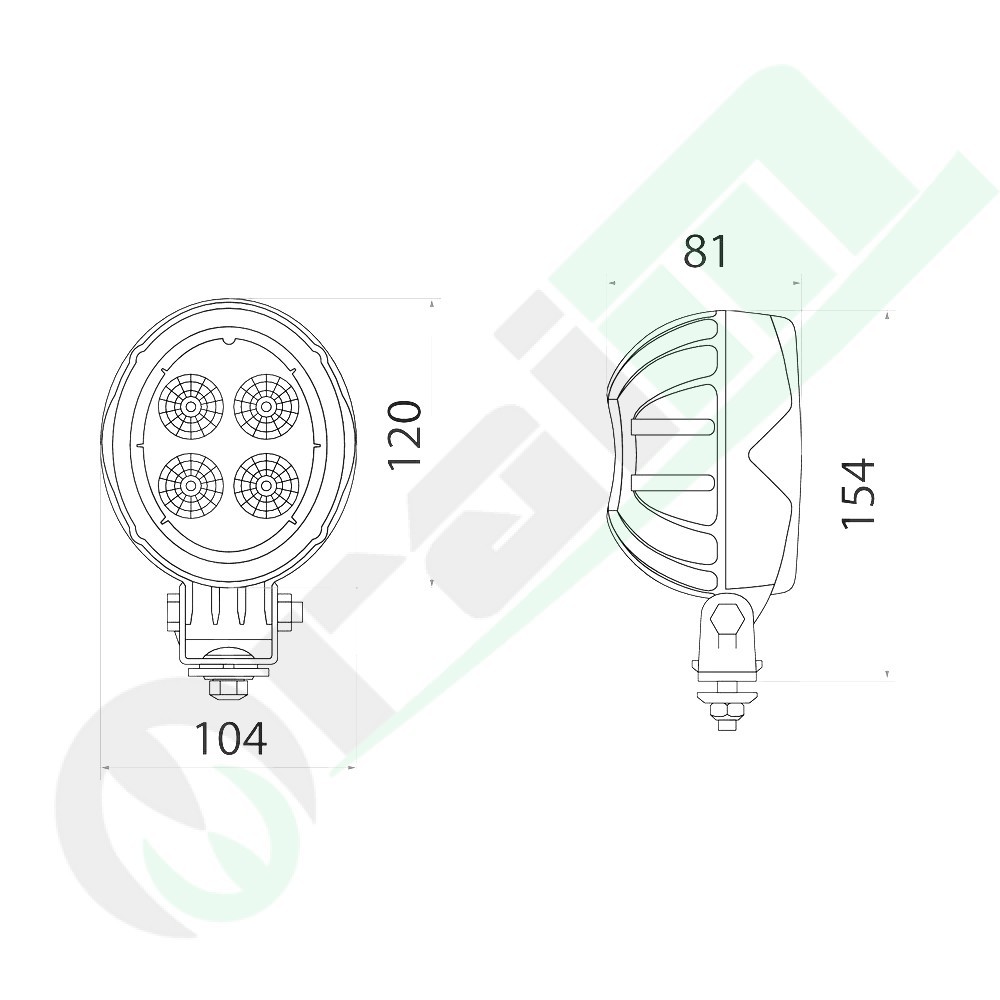

Dimensions L x H x D (mm): 120 x 104 x 81.
Frame Size (mm): 154.
Mounting Position: Universal.
Mounting Method: Screw mounting, horizontal.
Attachment: M8.
Connection: Open cable ends (Cable Length: 500 mm).
Pole Quantity: 2.
Material: Housing: Plastic material, aluminum; lens: Plastic material.
Additional Information: Red frame, interchangeable (M8).

Compatible Machine Models (Brand - Series - Model)

FENDT - Fendt 300 Series:
- 309 (Typ 322, Typ 336)
- 310 (Typ 323, Typ 337)
- 311 (Typ 324, Typ 338)
- 312 (Typ 325, Typ 339)
- 313 (Typ 340)
FENDT - Fendt 400 Series:
- 411 (Typ 400), 412 (Typ 401), 413 (Typ 402), 414 (Typ 403), 415 (Typ 404)
FENDT - Fendt 500 Series:
- 512 (Typ 413), 513 (Typ 414), 514 (Typ 415), 516 (Typ 416)
FENDT - Fendt 700 Series:
- 712 (Typ 724), 714 (Typ 725, Typ 732), 716 (Typ 726, Typ 733), 718 (Typ 727, Typ 734)
- 720 (Typ 735), 722 (Typ 736), 724 (Typ 737)
FENDT - Fendt 800 Series:
- 818 (Typ 729), 819 (Typ 832), 820 (Typ 731)
- 822 (Typ 833), 824 (Typ 834), 826 (Typ 835), 828 (Typ 836)
FENDT - Fendt 900 Series:
- 922 (Typ 919), 924 (Typ 922, Typ 941), 927 (Typ 925, Typ 942)
- 930 (Typ 928, Typ 943), 933 (Typ 931, Typ 944), 936 (Typ 934, Typ 945), 939 (Typ 946)
