GRANIT Black Oval LED Work Light 19537304 | 65W | 6000 lm | John Deere R-Series | Replaces RE269637

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

GranitRef.

GRANIT Black Oval LED Work Light 19537304 | 65W | 6000 lm | John Deere R-Series | Replaces RE269637

GRANIT Black LED Work Light 19537304 (6000 lm)

€59.90VAT incl.

Coupon -€1.20 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €58.70

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

This black GRANIT LED work light is a high-intensity 65 Watt lamp, specifically designed for John Deere R-series machinery. It provides reflector (wide area) illumination with an effective luminous flux of 6000 lumens. Thanks to the IP6K9K rating, it guarantees excellent resistance to dust and high-pressure water jets. The 9006 Base connector ensures easy integration into existing electrical systems.

Technical Data

Part Number: 19537304 (GRANIT).
Light Function: Reflector (Wide area illumination).
Nominal Voltage (V): 12 / 24.
Voltage (Volt): 10 - 30.
Power Consumption (W): 65.
Current Draw (A): 12V@5.41A, 24V@2.7A.
LED Quantity: 4.
Effective Luminous Flux (lm): 6,000.
Theoretical Luminous Flux (lm): 8,800.
Light Color (K): 5,700.
Lamp Type: LED (Bulbs included: Yes).
Protection Type: IP6K9K.
Temperature Range (°C): -40 / +50.
Control Mark: ECE R10, CE, UKCA, RoHS.
EMC: CISPR 25 Class 3.

Dimensions and Mounting

Shape: Oval.

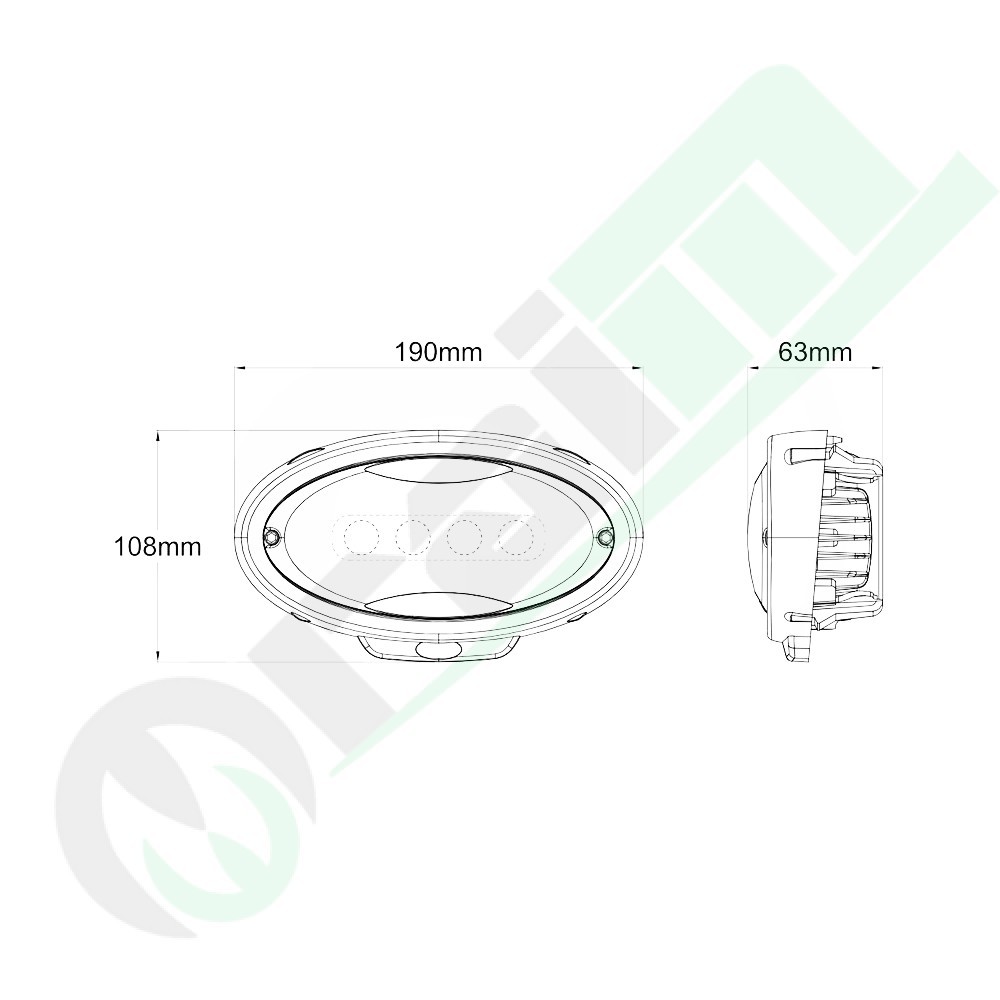

Dimensions L x H x D (mm): 190 x 108 x 63.
Light Aperture (mm): 167 x 78.
Mounting Method: Straight; M4.
Connection: 9006 Base.
Cable Length (mm): 500.
Material: Housing: Aluminum; lens: Plastic material.

Original References

RE269637

Compatible Machine Models (Brand - Series - Model)

JOHN DEERE - 6R Series:
- 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R
JOHN DEERE - 7R Series:
- 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R
JOHN DEERE - 8R/8RT Series:
- 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT
JOHN DEERE - 9R/RT/RX Series:
- 9360R, 9370R, 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX
