Right Curved Blade 30x6 BCS 20 Corta 56957 | Raim Store

Right Curved Tiller Blade 30x6 mm for BCS Rotary Tiller 20 Short Ref OEM 580 59277 - 56957

star star star star star_border
Aftermarket
56957

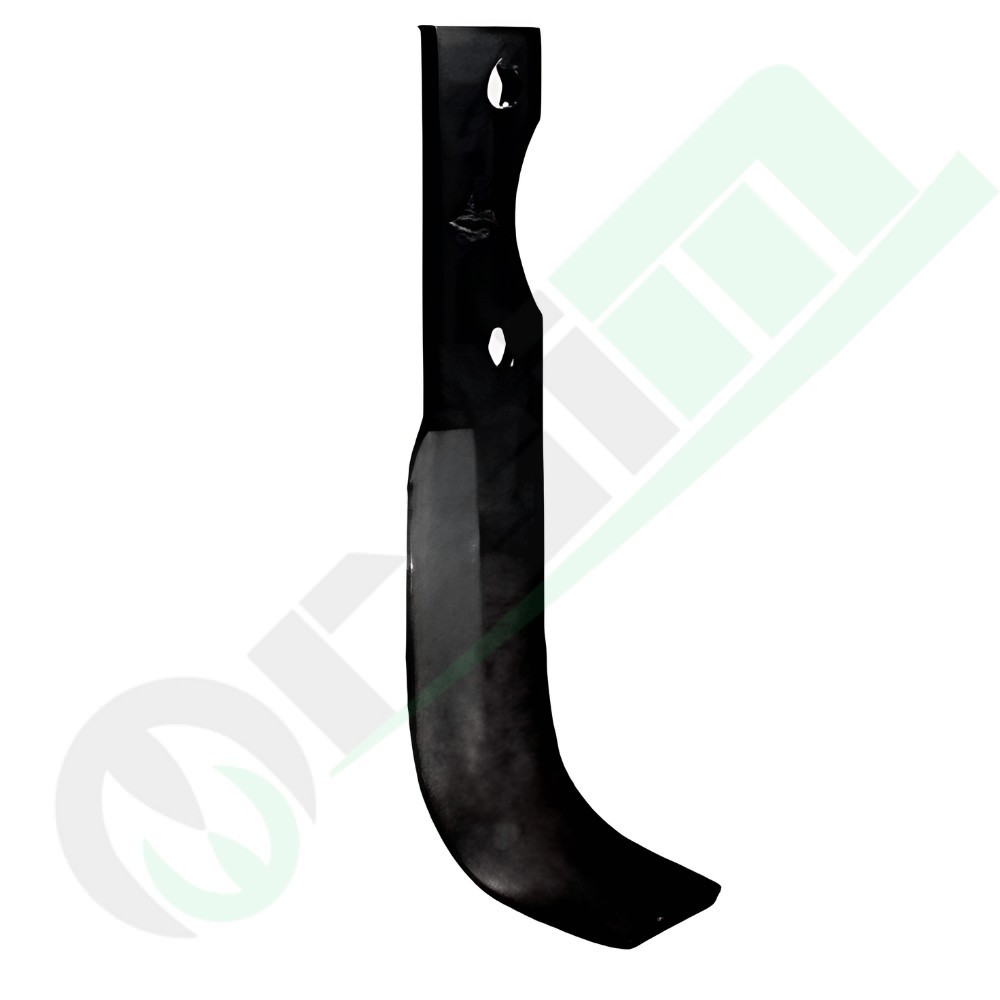

Right-hand curved rotary tiller blade part number 56957 (flat plate 30x6 mm, hole spacing 55 mm, hole diameter 8.5 mm, dimensions 55x170x18 mm) for rotary tillers. Manufactured from wear-resistant forged steel, specifically engineered for BCS Fresa 20 Corta AR/EL implements. Replaces original OEM reference 580 59277.

Hurry! only 25 items left in stock.
€3.80
Tax included
COUPON
- € 0,08
Final price: € 3,72
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Right Curved Rotary Tiller Blade (Short Version) for BCS - Part Number: 56957

The Right Curved Rotary Tiller Blade (Short Series) (part number 56957, reinforced flat steel section 30 × 6 mm, mounting holes Ø 8.5 mm with 55 mm center-to-center distance, compact working dimensions X = 55 mm, Y = 170 mm, Z = 18 mm, adaptable OEM reference 580 59277) is a drop-forged, heat-treated alloy steel wear part engineered for abrasion resistance and low-drag soil cultivation. Designed with a right-hand helical profile and a compact 170 mm vertical working depth, it delivers smooth ground penetration, fine clod pulverization, and minimal powertrain resistance across BCS rotary tillers (model Tiller 20 Short AR/EL).
Key Features & Benefits
  • Reinforced 30 × 6 mm Forged Alloy Steel: Hot-forged from boron spring alloy and through-hardened for superior toughness and wear endurance. The widened 30 mm shank provides significantly higher bending resistance than conventional 25 mm tines, preventing plastic deformation during rock strikes.
  • Compact “Short” Working Depth (Y = 170 mm, Z = 18 mm): The reduced 170 mm vertical profile decreases torque demands on the transmission and engine, making it an ideal choice for high-speed secondary tillage and light to medium walk-behind units.
  • Precision 8.5 mm Mounting Holes (55 mm Spacing): Dual 8.5 mm bolt holes designed for M8 hardware match genuine BCS rotor flanges, ensuring a rigid, slip-resistant fitment.
  • Seedbed Finishing & Inter-Row Cultivation: Ideal for horticultural nursery beds, mechanical weed eradication, surface aeration, and uniform blending of organic fertilizers.

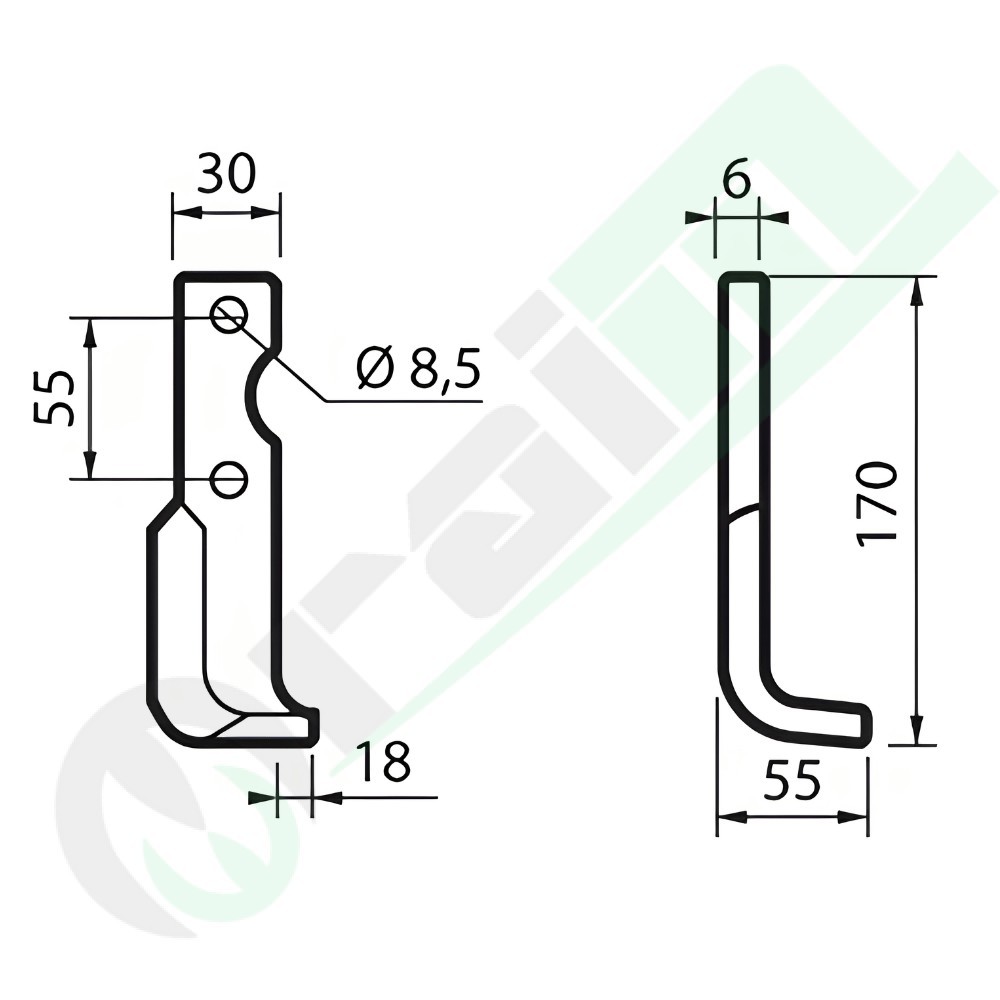

Technical Specifications
Product Code 56957
Component Type Rotary tiller blade / Cultivator tine (short series)
Shape & Direction Helical Curved (Short Profile) – Right Hand (RH)
Flat Stock Section (Width × Thickness) 30 × 6 mm
Length X (Horizontal Working Reach) 55 mm
Length Y (Vertical Height) 170 mm
Lateral Offset (Z Dimension) 18 mm
Mounting Hole Diameter Ø 8.5 mm (suited for M8 hardware)
Hole Center-to-Center Distance 55 mm
Adaptable OEM Part Number 580 59277 (58059277)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
BCS Rotary Tiller Tiller 20 Short Helical Arc (AR/EL)
Installation Technical Note: Assemble using grade 8.8 or 10.9 high-tensile M8 hardware with prevailing torque locknuts or spring lock washers. Confirm that the rotor holder hole spacing matches 55 mm center-to-center and re-tighten hardware after the first operating hour.
: 56957
Hurry! only 25 items left in stock.

Specific References

MPN
56957

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
