Left Curved Blade 30x6 BCS 20 Corta 56958 | Raim Store

Left Curved Tiller Blade 30x6 mm for BCS Rotary Tiller 20 Short Ref OEM 58059278 - 56958

star star star star star_border
Aftermarket
56958

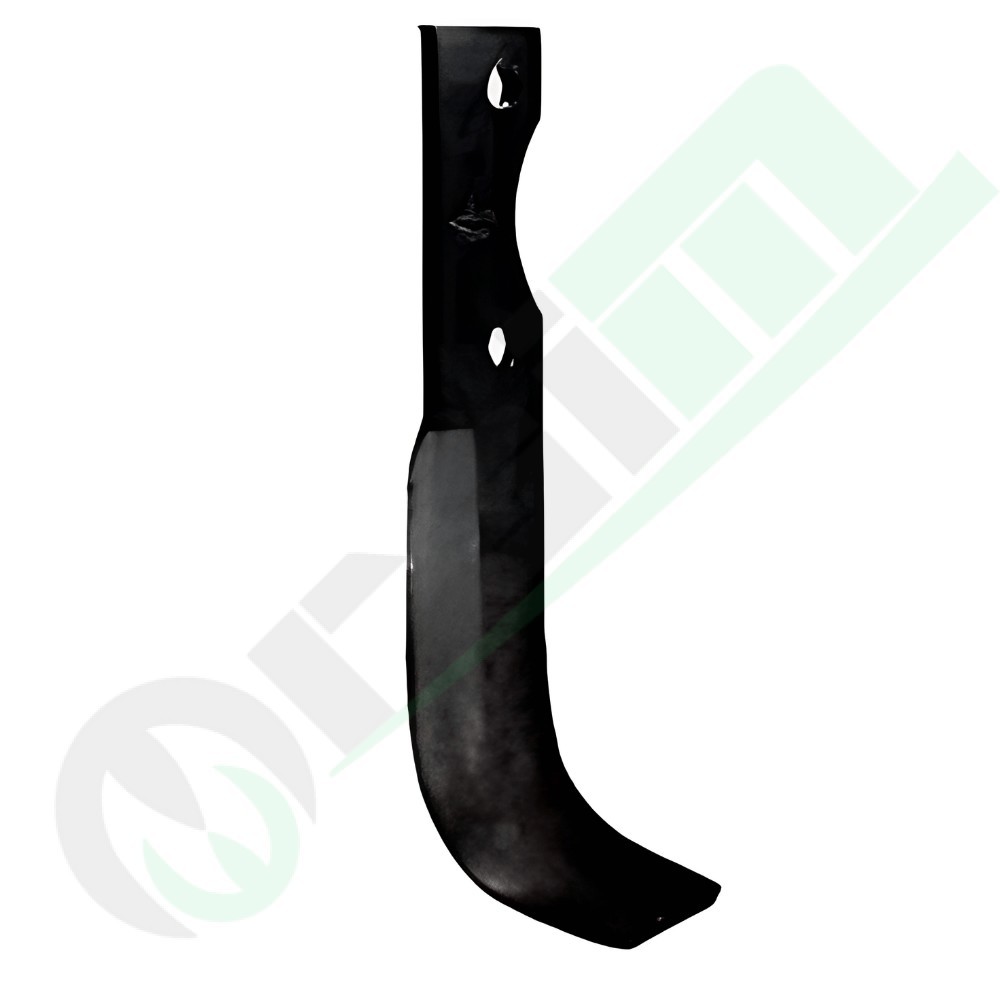

Left-hand curved rotary tiller blade part number 56958 (flat plate 30x6 mm, hole spacing 55 mm, hole diameter 8.5 mm, dimensions 55x170x18 mm) for rotary tillers. Manufactured from wear-resistant forged steel, specifically engineered for BCS Fresa 20 Corta AR/EL implements. Replaces original OEM reference 58059278.

Hurry! only 25 items left in stock.
€3.80
Tax included
COUPON
- € 0,08
Final price: € 3,72
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Left Curved Rotary Tiller Blade (Short Version) for BCS - Part Number: 56958

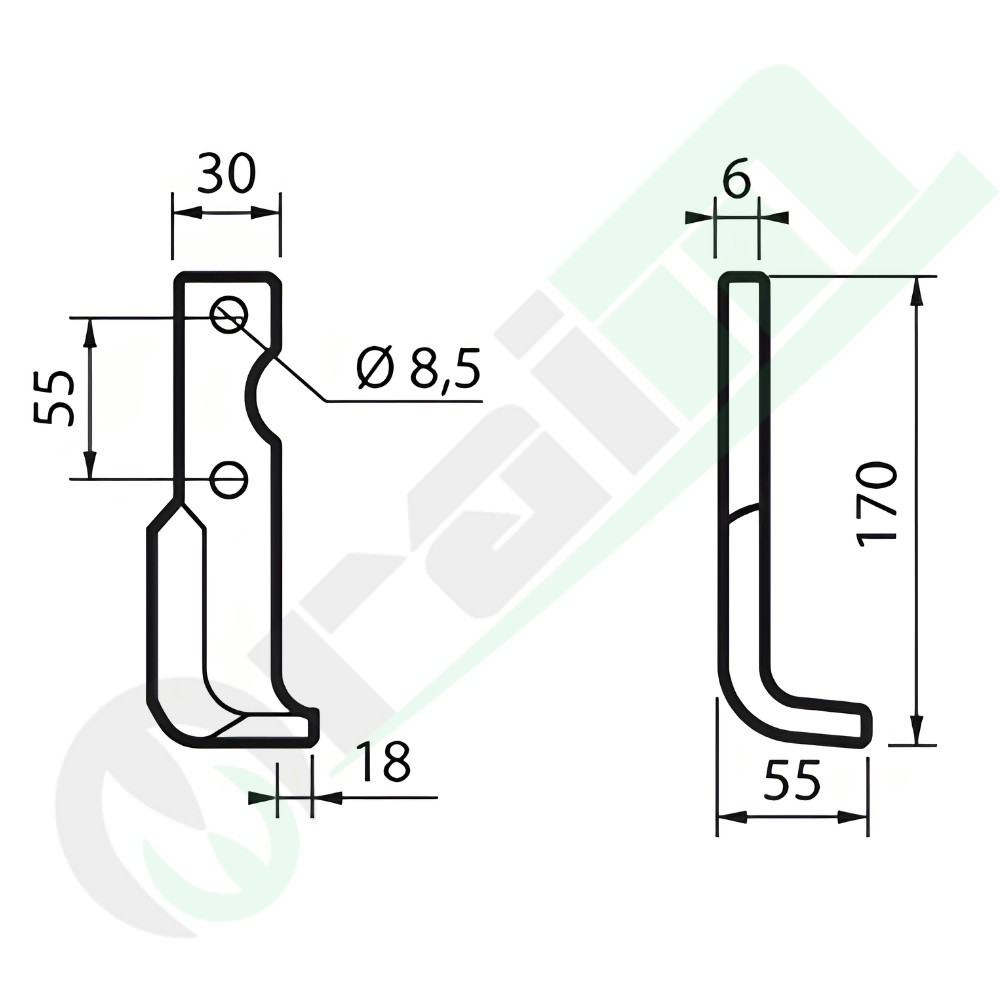

The Left Curved Rotary Tiller Blade (Short Series) (part number 56958, reinforced flat steel section 30 × 6 mm, mounting holes Ø 8.5 mm with 55 mm center-to-center distance, compact working dimensions X = 55 mm, Y = 170 mm, Z = 18 mm, adaptable OEM reference 58059278) is a drop-forged, heat-treated alloy steel wear part engineered for abrasion resistance and low-drag rotary cultivation. Formed with a left-hand helical profile to operate in complete dynamic balance alongside its matching right-hand blade, its compact 170 mm vertical working depth delivers smooth ground penetration, fine clod pulverization, and reduced transmission drag across BCS rotary tillers (model Tiller 20 Short AR/EL).
Key Features & Benefits
  • Reinforced 30 × 6 mm Forged Alloy Steel: Hot-forged from boron spring alloy and through-hardened for superior toughness and wear endurance. The widened 30 mm shank provides significantly higher bending resistance than conventional 25 mm plates, preventing plastic deformation during rock strikes.
  • Compact “Short” Working Depth (Y = 170 mm, Z = 18 mm): The reduced 170 mm vertical profile decreases torque demands on the transmission and engine, making it an ideal choice for high-speed secondary tillage and light to medium walk-behind power units.
  • Precision 8.5 mm Mounting Holes (55 mm Spacing): Dual 8.5 mm bolt holes designed for M8 hardware match genuine BCS rotor flanges, ensuring a rigid, slip-resistant fitment.
  • Seedbed Finishing & Inter-Row Cultivation: Ideal for horticultural nursery beds, mechanical weed eradication, surface aeration, and uniform blending of organic fertilizers.
Technical Specifications
Product Code 56958
Component Type Rotary tiller blade / Cultivator tine (short series)
Shape & Direction Helical Curved (Short Profile) – Left Hand (LH)
Flat Stock Section (Width × Thickness) 30 × 6 mm
Length X (Horizontal Working Reach) 55 mm
Length Y (Vertical Height) 170 mm
Lateral Offset (Z Dimension) 18 mm
Mounting Hole Diameter Ø 8.5 mm (suited for M8 hardware)
Hole Center-to-Center Distance 55 mm
Adaptable OEM Part Number 58059278 (580 59278)
Matching Opposite Blade Part number 56957 (OEM 580 59277)
Application Table & Compatible Implements
Manufacturer Equipment Category Compatible Models
BCS Rotary Tiller Tiller 20 Short Helical Arc (AR/EL)
Installation Technical Note: Assemble using grade 8.8 or 10.9 high-tensile M8 hardware with prevailing torque locknuts or spring lock washers. Confirm that the rotor holder hole spacing matches 55 mm center-to-center and re-tighten hardware after the first operating hour.
