3770510B234900 BLUELINE PTO Shaft Series B2 Lz 510mm with Shear Bolt Clutch 900Nm
3770510B234900 BLUELINE PTO Shaft Series B2 Lz 510mm with Shear Bolt Clutch 900Nm
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
BluelineRef.

3770510B234900 BLUELINE PTO Shaft Series B2 Lz 510mm with Shear Bolt Clutch 900Nm

BLUELINE B2 PTO Shaft with Shear Bolt - L 510mm (Code 3770510B234900)

€129.00VAT incl.
Coupon -€2.58 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €126.42

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE B2 Series drive shaft (510 mm) is a compact transmission solution featuring an integrated Shear Bolt Clutch for implement protection. This safety device is designed to snap the bolt when torque exceeds 900 Nm, effectively disconnecting the drive to prevent damage caused by obstacles or clogging. Utilizing the Italian System (triangular profile), it is perfectly suited for light-duty machinery such as fertilizer spreaders, small flail mowers, and sprayers.

Technical Specifications

Part Number: 3770510B234900

Series: B2

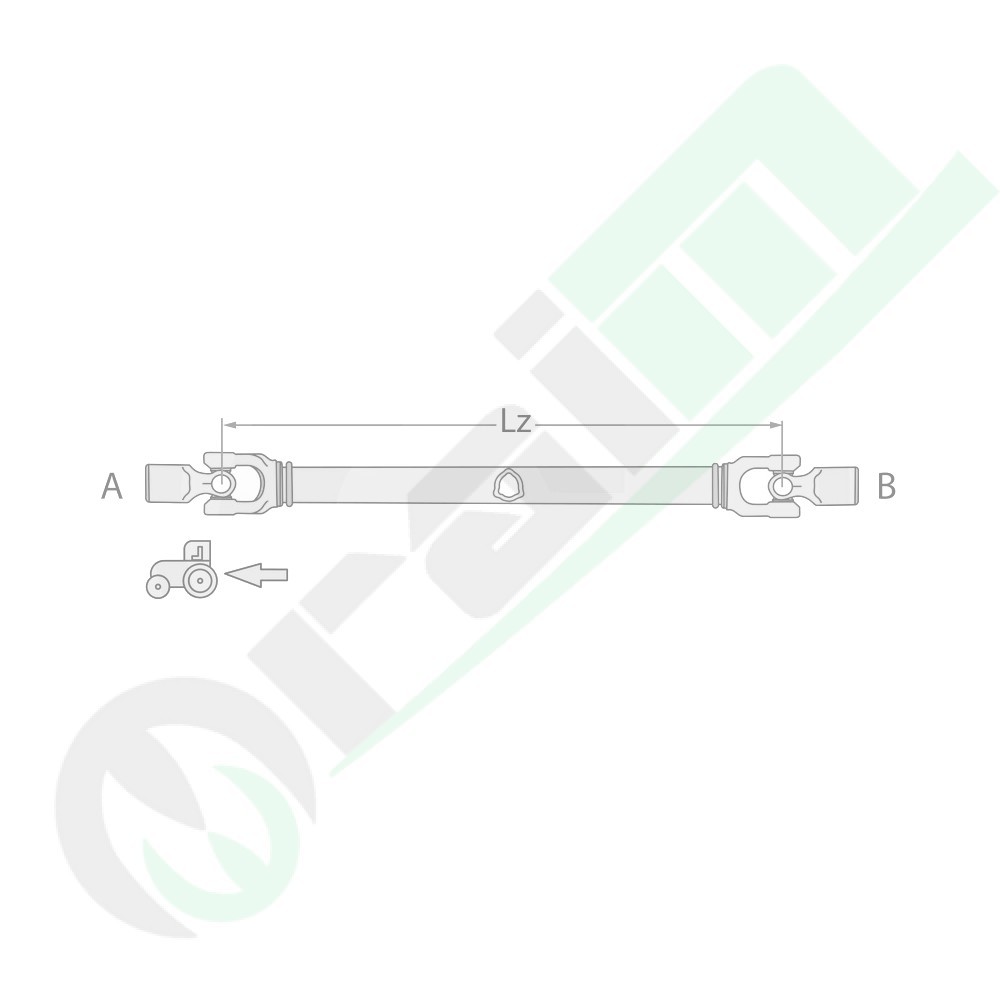

Total Length (Lz): 510 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 24 x 61 mm

Safety Type: Shear Bolt Clutch

Tube Profile: Italian System (Triangular)

Coupling: P3/P4

Safety Data

Release Torque: 900 Nm

Replacement Bolt: Use only bolts with original strength grade and dimensions.

Operating instructions are included. Always ensure the shear bolt is replaced with the correct grade; using a higher strength bolt can lead to catastrophic failure of the tractor's PTO or the implement's gearbox.
