11316639 BLUELINE PTO Shaft Series B6 Lz 1210mm with Friction Disc Clutch 1800Nm

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

11316639 BLUELINE PTO Shaft Series B6 Lz 1210mm with Friction Disc Clutch 1800Nm

BLUELINE B6 PTO Drive Shaft with Friction Clutch - L 1210mm (Code 11316639)

€269.00VAT incl.

Coupon -€5.38 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €263.62

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE B6 Series drive shaft (1210 mm) is a heavy-duty transmission component equipped with a professional Friction Disk Clutch. Rated at 1800 Nm, this safety device prevents mechanical damage by slipping during torque overloads, allowing the operator to continue working without component replacement. Featuring massive 30.2 x 91.5 mm universal joints and the Italian System (triangular profile), it is the ideal choice for high-power rotary tillers, soil preparers, and large feed mixers.

Technical Specifications

Part Number: 11316639

Series: B6

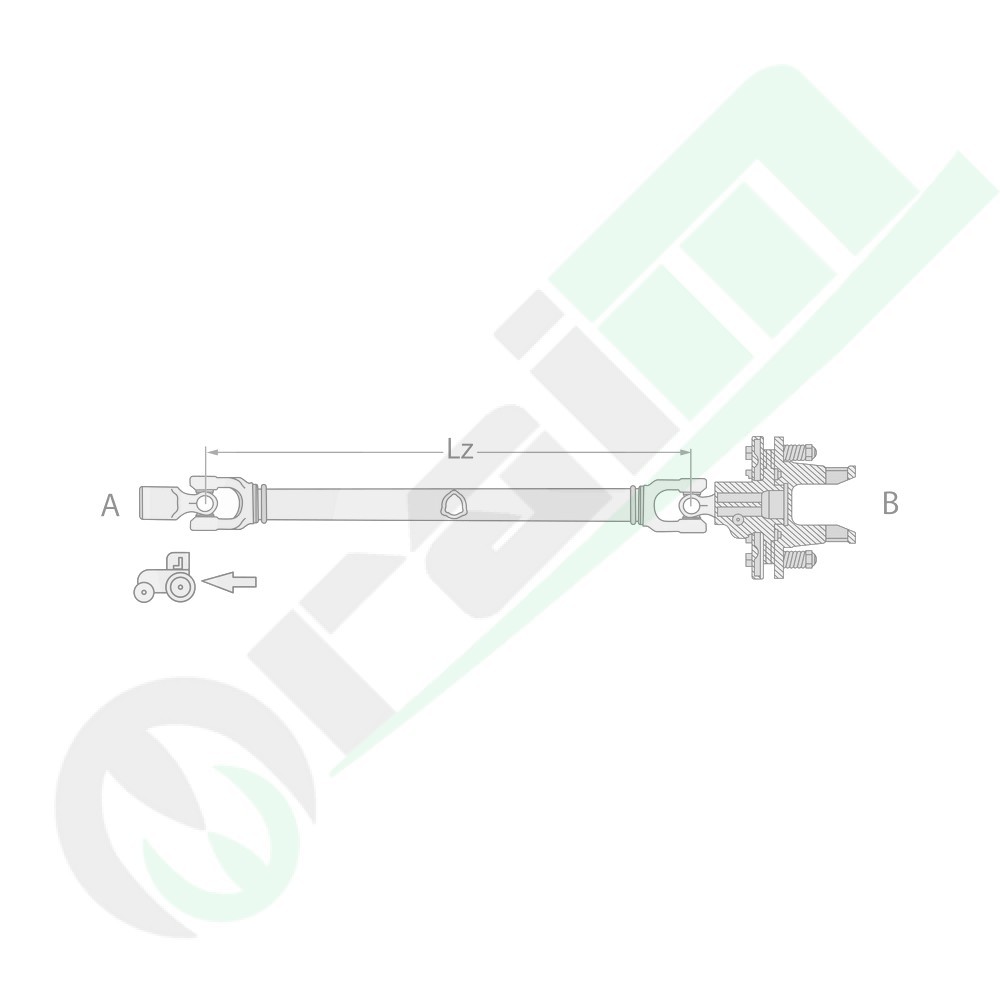

Total Length (Lz): 1210 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 30.2 x 91.5 mm

Safety Type: Friction Disk Clutch

Tube Profile: Italian System (Triangular)

Coupling: P7/P9

Performance Data

Slipping Torque: 1800 Nm

Benefit: Non-stop protection that safeguards the drivetrain while maintaining productivity.

Operating instructions are included. To ensure long-term reliability of the friction clutch, regularly check the spring tension. After extended storage, it is recommended to loosen the springs and perform a short slip test to ensure the disks are not seized.
