3771010B679K2900 BLUELINE PTO Shaft Series B6 Lz 1010mm 1 3/8" & 1 3/4" Z6
3771010B679K2900 BLUELINE PTO Shaft Series B6 Lz 1010mm 1 3/8" & 1 3/4" Z6
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
BluelineRef.

3771010B679K2900 BLUELINE PTO Shaft Series B6 Lz 1010mm 1 3/8" & 1 3/4" Z6

BLUELINE PTO Drive Shaft B6 Series L 1010mm 1 3/4" Shear Bolt - 3771010B679K2900

€245.00VAT incl.
Coupon -€4.90 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €240.10

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

and a

Shear Bolt Clutch

calibrated to disconnect power at 2900 Nm. This configuration provides ultimate protection against catastrophic torque peaks. Equipped with massive

30.2 x 91.5 mm

universal joints and the

Italian System

(triangular profile), it is perfectly suited for forestry mulchers, heavy duty rotary harrows, and industrial wood chippers.

Technical Specifications

Part Number: 3771010B679K2900

Series: B6

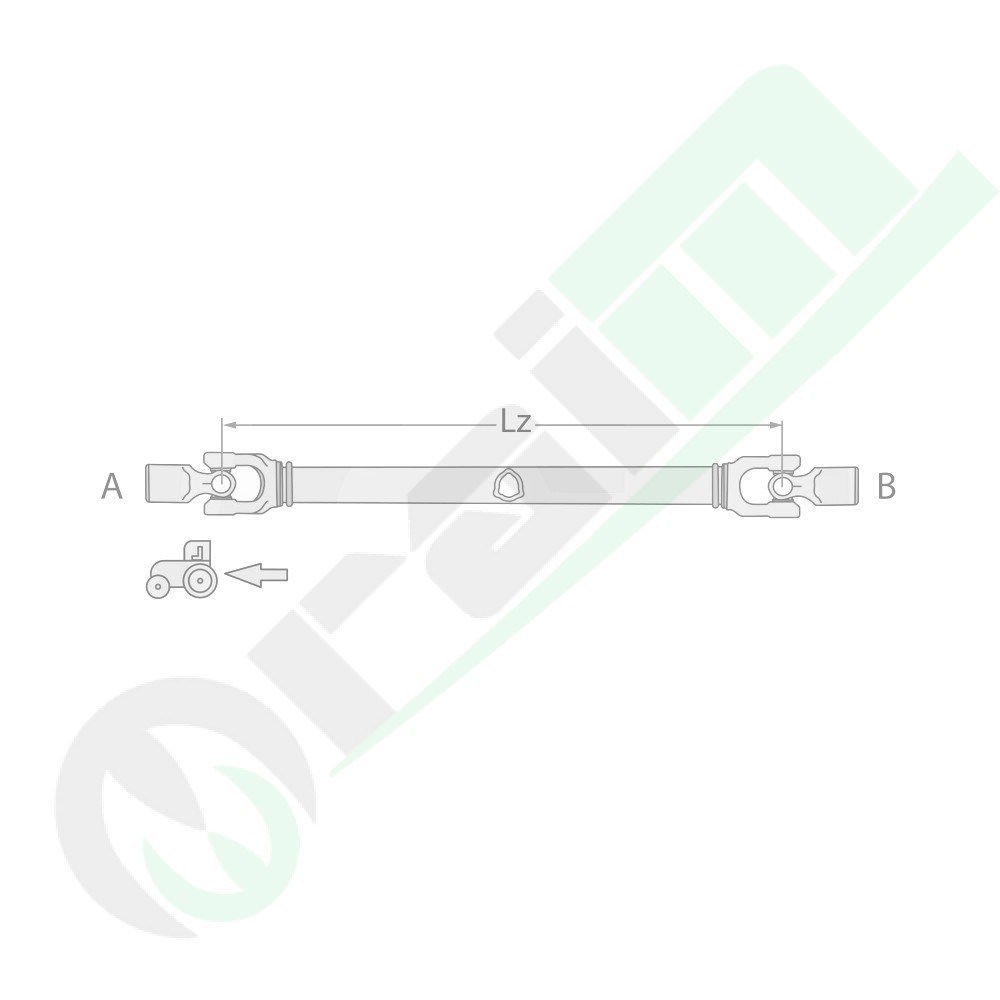

Total Length (Lz): 1010 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/4" 6 Splines (Locking bolt)

Cross Kit Dimension: 30.2 x 91.5 mm

Safety Type: Shear Bolt Clutch

Tube Profile: Italian System (Triangular)

Coupling: P7/P9

Safety Data

Release Torque: 2900 Nm

Replacement Bolt: Use only original replacement bolts of the specified grade to maintain the 2900 Nm safety threshold.

Operating instructions are included. For B6 shafts with 1 3/4" connections, ensure the locking bolt is fully tightened into the implement's shaft groove to prevent accidental detachment during high-torque industrial operations.
