11316637 BLUELINE PTO Shaft Series B8 Lz 1210mm with Friction Disc Clutch 2300Nm

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

11316637 BLUELINE PTO Shaft Series B8 Lz 1210mm with Friction Disc Clutch 2300Nm

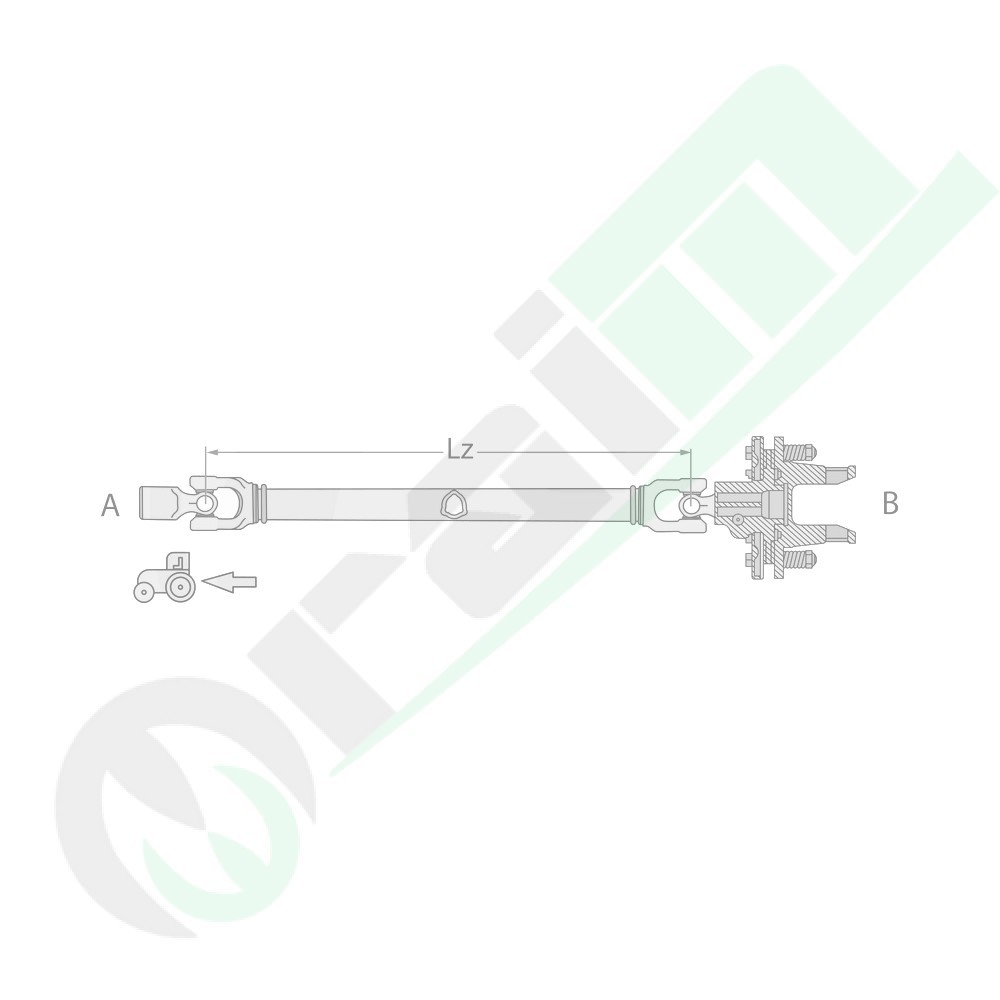

BLUELINE B8 PTO Drive Shaft with Friction Clutch - L 1210mm (Code 11316637)

€340.00VAT incl.

Coupon -€6.80 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €333.20

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE B8 Series drive shaft (1210 mm) is an Ultra Heavy Duty transmission component designed for high-horsepower tractors and the most demanding implements. It features a professional Friction Disk Clutch rated at 2300 Nm, which protects the drivetrain by slipping during torque peaks while maintaining continuous power delivery. Built with massive 34.9 x 106 mm universal joints and reinforced triangular profile tubes (Italian System), it is the ultimate choice for forestry mulchers, heavy-duty rotary harrows, and industrial feed mixers.

Technical Specifications

Part Number: 11316637

Series: B8

Total Length (Lz): 1210 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 34.9 x 106 mm

Safety Type: Friction Disk Clutch

Tube Profile: Italian System (Triangular)

Coupling: P10/P11

Performance Data

Slipping Torque: 2300 Nm

Key Benefit: Maximum drivetrain protection with automatic torque recovery and no downtime.

Operating instructions are included. Given the extreme torque levels of the B8 series, it is essential to ensure safety chains are securely anchored and that universal joints are greased every 8 hours of intense operation.
