3770710B456K1700 BLUELINE PTO Shaft Series B4 Lz 710mm with Shear Bolt Clutch 2100Nm
3770710B456K1700 BLUELINE PTO Shaft Series B4 Lz 710mm with Shear Bolt Clutch 2100Nm
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
BluelineRef.

3770710B456K1700 BLUELINE PTO Shaft Series B4 Lz 710mm with Shear Bolt Clutch 2100Nm

BLUELINE B4 PTO Shaft with Shear Bolt - L 710mm (Code 3770710B456K1700)

€145.00VAT incl.
Coupon -€2.90 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €142.10

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE B4 Series drive shaft (710 mm) is a high-strength transmission solution featuring an integrated Shear Bolt Clutch. This essential safety device is engineered to disconnect power when the torque exceeds 2100 Nm, preventing catastrophic damage to both the implement's gearbox and the tractor's PTO. Utilizing the Italian System with triangular profile tubes and robust 27 x 74.6 mm cross kits, it is perfectly suited for medium-duty rotary tillers, flail mowers, and shredders prone to sudden clogging or obstacle strikes.

Technical Specifications

Part Number: 3770710B456K1700

Series: B4

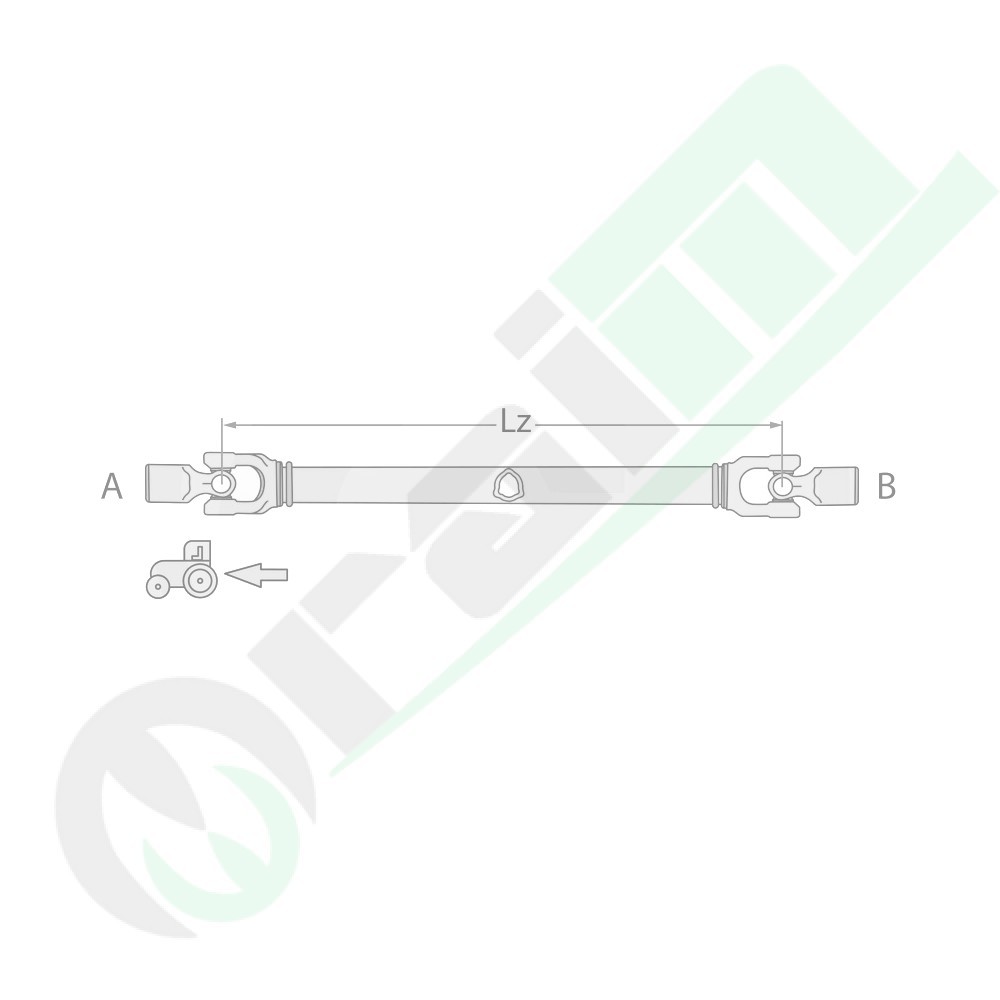

Total Length (Lz): 710 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 27 x 74.6 mm

Safety Type: Shear Bolt Clutch

Tube Profile: Italian System (Triangular)

Coupling: P6/P5

Safety Data

Release Torque: 2100 Nm

Replacement Bolt: Use only bolts with original strength grade and dimensions to ensure the safety calibration remains effective.

Operating instructions are included. Always inspect the shaft for wear before use. If the shear bolt breaks, it is a sign of an overload; clear the obstruction before replacing the bolt and resuming operation.
