12216709 BLUELINE PTO Shaft Series B4 Lz 740mm with Friction Disc Clutch 1500Nm

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

BluelineRef.

12216709 BLUELINE PTO Shaft Series B4 Lz 740mm with Friction Disc Clutch 1500Nm

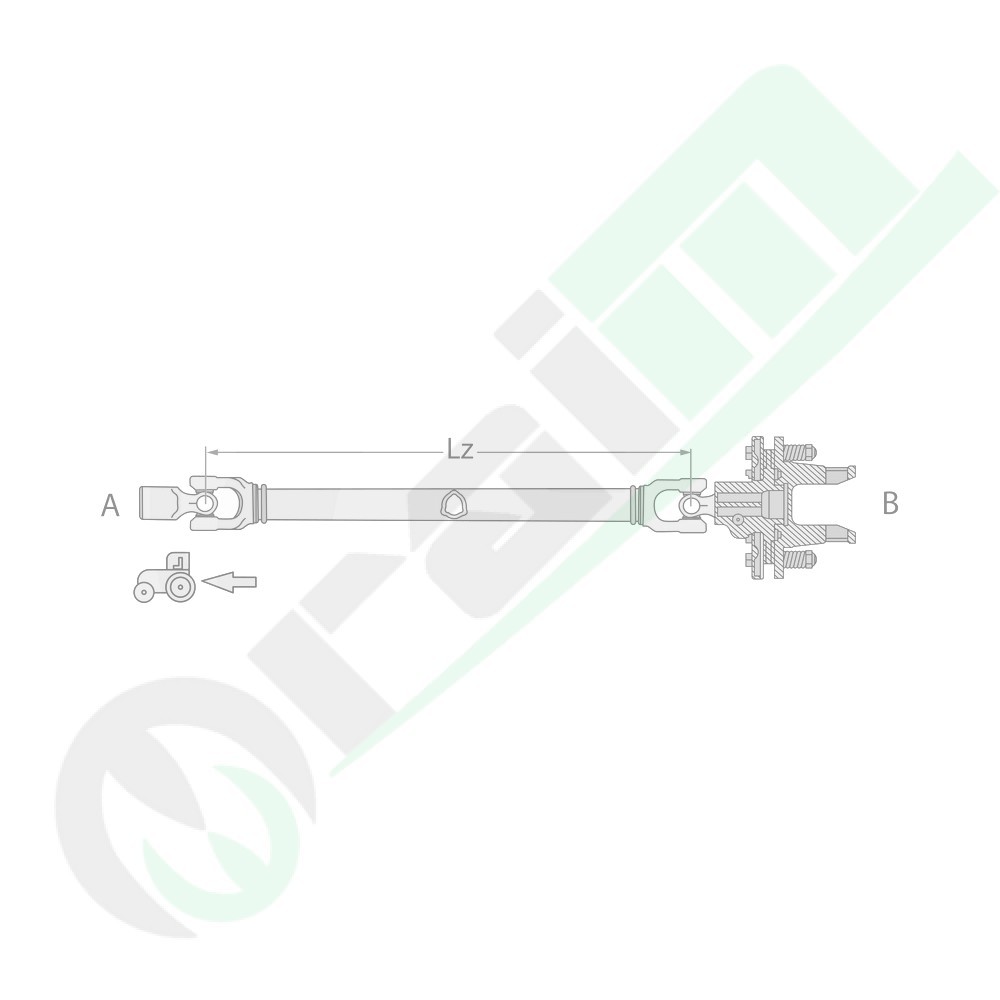

BLUELINE B4 PTO Drive Shaft with Friction Clutch - L 740mm (Code 12216709)

€199.00VAT incl.

Coupon -€3.98 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €195.02

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The BLUELINE B4 Series drive shaft (740 mm) is a professional transmission solution equipped with a Friction Disk Clutch. Rated at 1500 Nm, this safety device protects both the tractor and the implement by slipping during torque peaks, preventing mechanical failure while allowing work to resume instantly. Featuring the Italian System (triangular profile) and 27 mm cross kits, it is highly recommended for medium-duty rotary tillers, flail mowers, and mist blowers.

Technical Specifications

Part Number: 12216709

Series: B4

Total Length (Lz): 740 mm

Profile A (Tractor Side): 1 3/8" 6 Splines (Push-button)

Profile B (Implement Side): 1 3/8" 6 Splines (Locking bolt)

Cross Kit Dimension: 27 x 74.6 mm

Safety Type: Friction Disk Clutch

Tube Profile: Italian System (Triangular)

Coupling: P6/P5

Performance Data

Slipping Torque: 1500 Nm

Benefit: Continuous protection without the need to replace components after an overload event.

Operating instructions are included. To maintain performance, inspect friction disks regularly. If the shaft is stored for long periods, it is advised to loosen the clutch springs and perform a brief slip test to prevent the disks from seizing.
